Basic install help

Discussion in 'CB Radio Forum' started by Penumbra, Nov 27, 2020.

  1. Penumbra

    Penumbra Light Load Member

    285
    505
    Jul 29, 2019
    0
    Ok I’m confused by the way my trucks wiring (now, I have zero wiring experience other than installing this CB in a different truck.

    My CB is the standard cobra 29, I’ve got the black and red wires coming out the back...

    however I can’t figure out which wire goes where in my blasted CB slot (see attached photos for the wires of the truck)

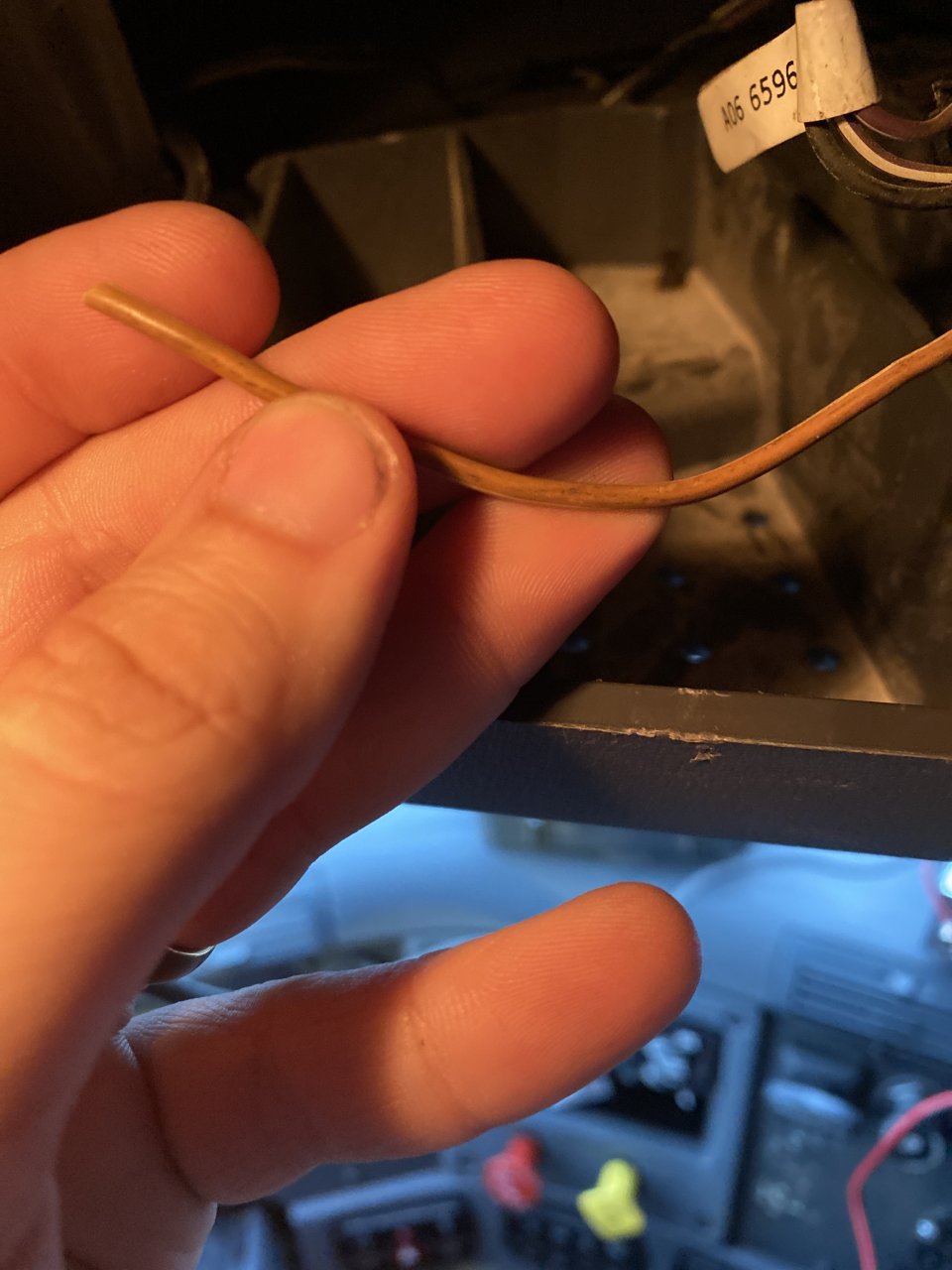

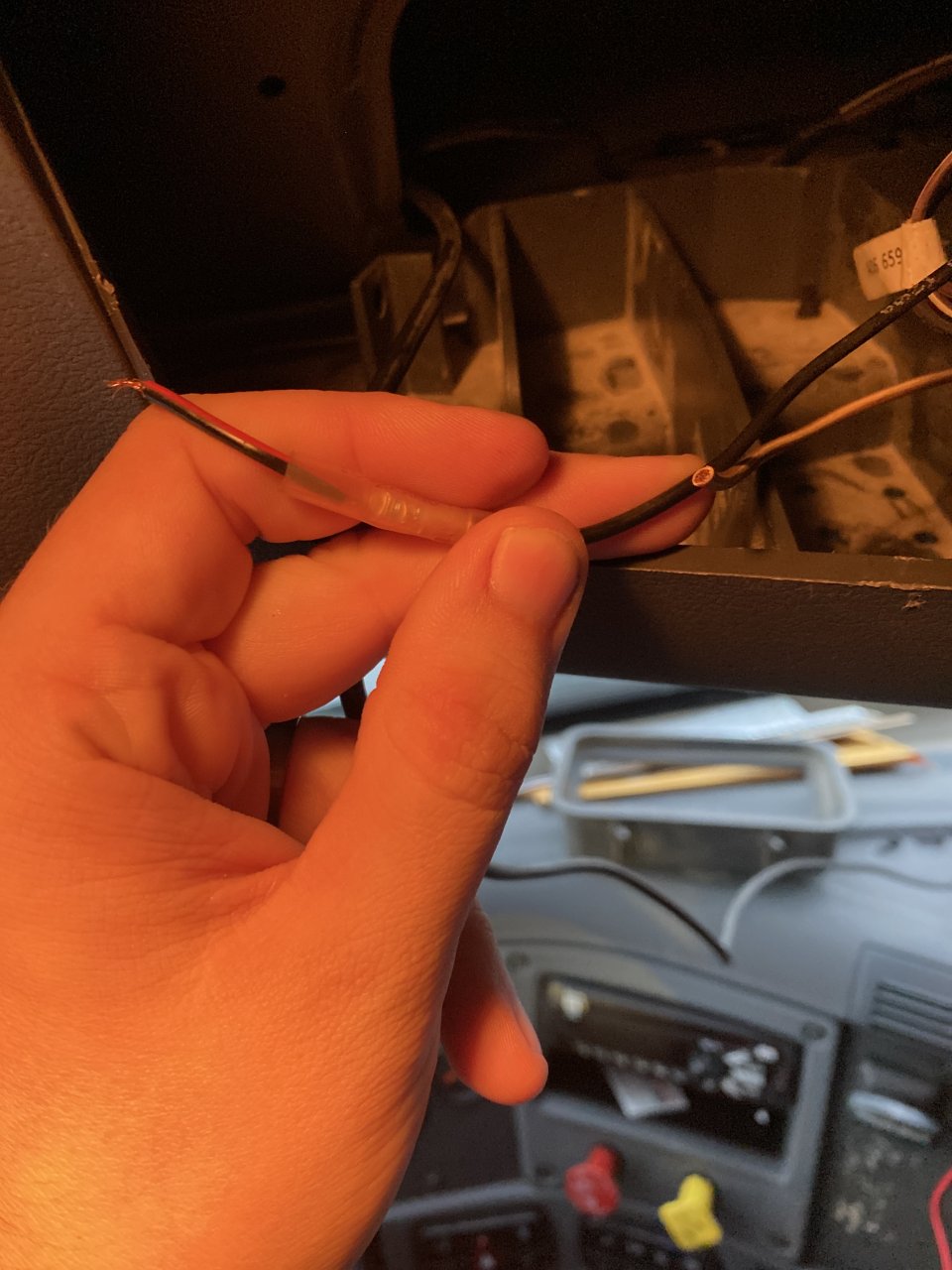

    move got a black wire (with a little red on it, but only on the piece that was spliced in) and a...brown wire?

    help!!!!


    Attached Files:

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. jessejamesdallas

    jessejamesdallas Road Train Member

    1,377
    790
    Oct 3, 2008
    Republic of Texas
    0
    If it were me, I would just run a New wire straight to the batterys positive terminal for my power wire, then just run a ground wire to some place on the firewall and call it a day...forget about those wires in the truck..

  4. Penumbra

    Penumbra Light Load Member

    285
    505
    Jul 29, 2019
    0
    WELL A HESRT STOPPING SHOCK LATER...evidently brown is alive lol now I just need to remember how to calibrate the thing

  5. Ridgeline

    Ridgeline Road Train Member

    16,533
    68,220
    Dec 18, 2011
    Michigan
    0
    2:1 is still acceptable. A few will get this ratio even though everything is perfect.
