Bendix air dryer

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by spindrift, Jun 10, 2021.

  1. spindrift

    spindrift Road Train Member

    2,078
    4,538
    Dec 2, 2014
    Texas
    0

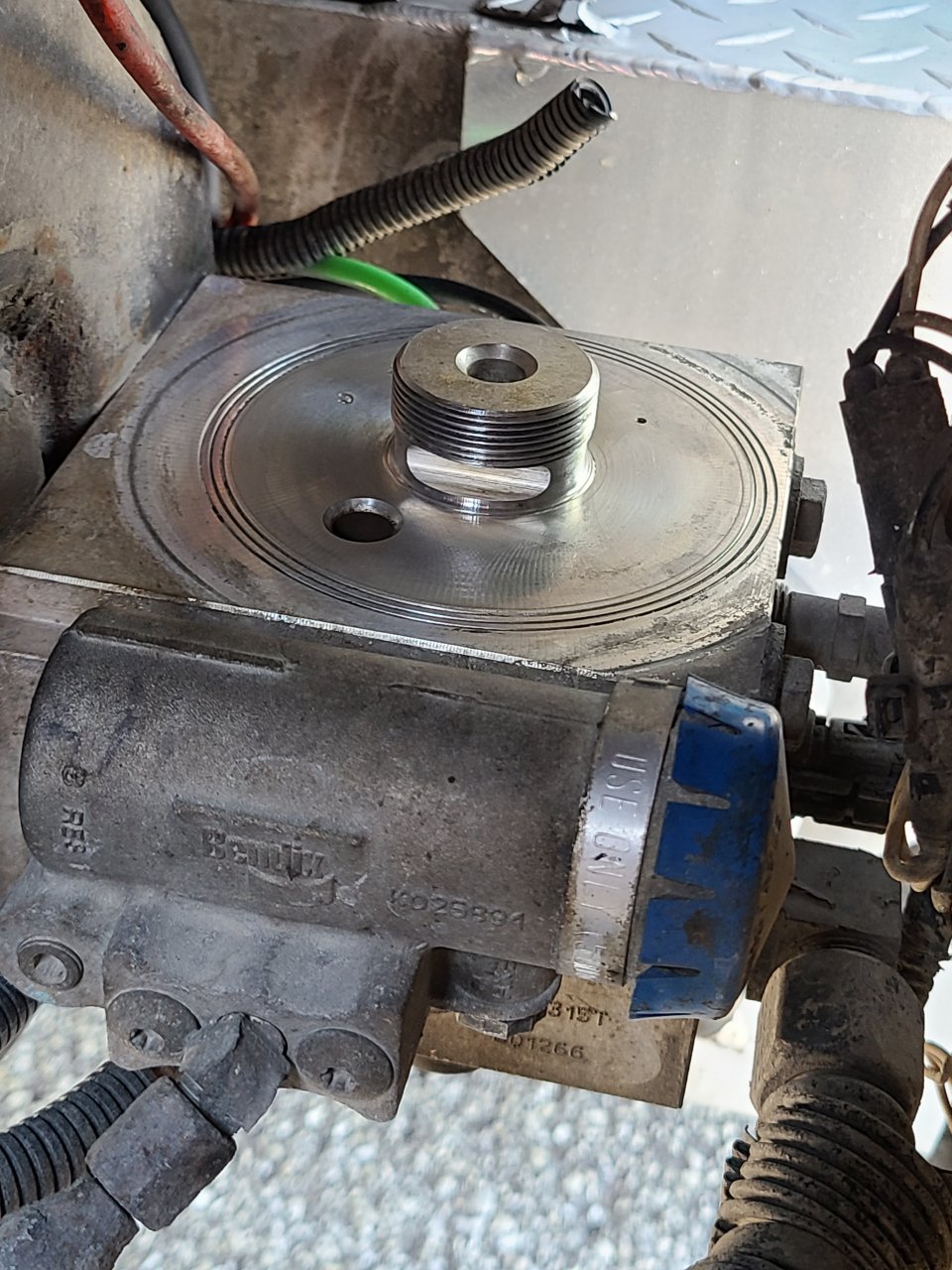

    There is what looks to be a keyway at the bottom of the threads. There's an O-ring in the new filter box (TRP p/n AC1001) that will fit over those threads and snug up against the base but it will absolutely obstruct that keyway just a little. What's the purpose for the keyway?
    The thread title should say, Bendix.

    Last edited: Jun 10, 2021
    Reason for edit: Auto correct got me.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. ibcalm19

    ibcalm19 Heavy Load Member

    970
    1,303
    Nov 30, 2015
    Pennsylvania
    0
    Air flow. The o-ring will expand when you screw the filter onto the base. Put it on see how it works. You should be fine

    spindrift Thanks this.
  4. Goodysnap

    Goodysnap Road Train Member

    2,310
    5,214
    Jul 12, 2017
    0
    No small oring from the factory on ADIS. Throw it away. Lube seal on filter and put it on.

    spindrift Thanks this.
  5. spindrift

    spindrift Road Train Member

    2,078
    4,538
    Dec 2, 2014
    Texas
    0
    Someone had previously installed the old O-ring. Could it have done any damage?

  6. Goodysnap

    Goodysnap Road Train Member

    2,310
    5,214
    Jul 12, 2017
    0
    I doubt it. But it doesnt do anything either.

    spindrift Thanks this.
  7. kemosabi49

    kemosabi49 Trucker Forum STAFF Staff Member

    7,568
    26,225
    Jan 13, 2013
    SW Arkansas
    0
  8. spindrift

    spindrift Road Train Member

    2,078
    4,538
    Dec 2, 2014
    Texas
    0
    Thank you, sir.
