Best/Safest way to Strap down Pipe ?

Discussion in 'Flatbed Trucking Forum' started by SilverBulletBand, Oct 27, 2019.

  1. SilverBulletBand

    SilverBulletBand Light Load Member

    Joined:
    Dec 15, 2018
    Messages:
    288
    Thanks Received:
    230
    Location:
    Wetumpka, Alabama
    0

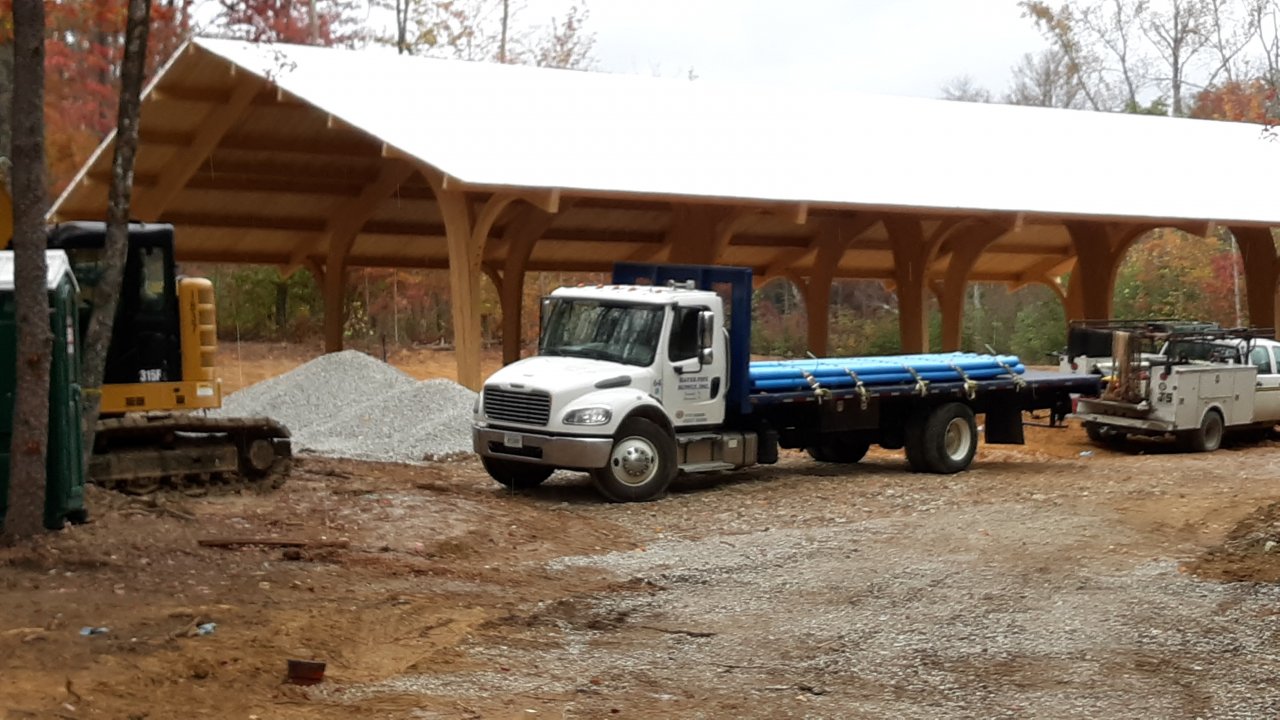

    I just started a job driving a 30' straight truck with a flatbed. We primarily haul underground piping, valves, fire hydrants and related equipment.

    I'm a newer driver and don't have much experience strapping down loads.

    What is the best/safest way to strap these type of loads ?

    TIA


    Attached Files:

    D.Tibbitt Thanks this.
  2. kylefitzy

    kylefitzy Road Train Member

    Joined:
    Aug 12, 2007
    Messages:
    4,631
    Thanks Received:
    19,155
    Location:
    Kansas city,Mo
    0

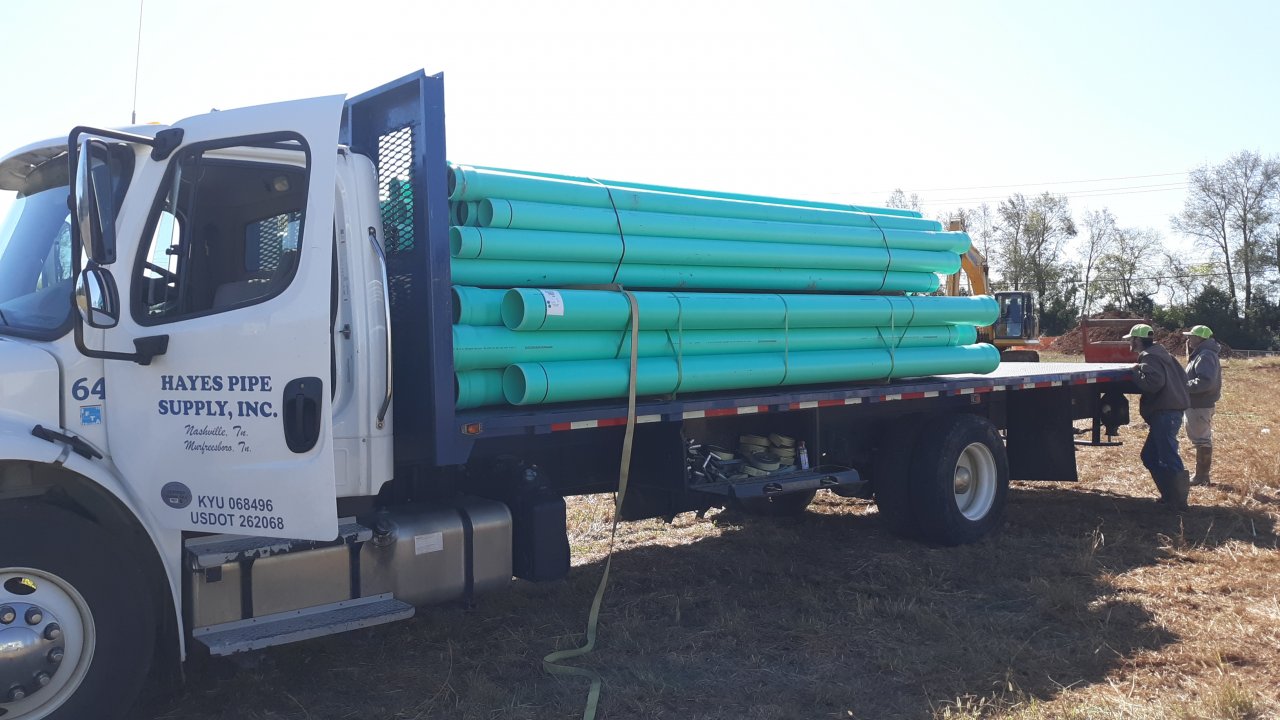

    You’re off to a good start with those gut straps through the middle of the stack. I would throw two of those and 4 over the top. On the straps over the top alternate sides on the winches so two winches are on each side. The alternating pull will keep the stack from leaning.

    Lepton1, SilverBulletBand, cke and 5 others Thank this.
  3. Atlaw4u

    Atlaw4u Heavy Load Member

    Joined:
    Jun 8, 2018
    Messages:
    750
    Thanks Received:
    1,131
    0
    Ditto that. I always prefer more securement then less.

    D.Tibbitt Thanks this.
  4. not4hire

    not4hire Road Train Member

    Joined:
    May 16, 2012
    Messages:
    7,142
    Thanks Received:
    26,957
    Location:
    Calgary
    0
    It should be okay if the strapping on those bundles holds and they're always unloaded as bundles. However, I always wrap pipe with one or two belly-wraps; from the winch go under the load, over the top, back under the load to the opposite side. OR a ratchet and strap around the load (in the middle where you'll get the greatest deflection).

    And stakes... ALWAYS stakes.

    Lepton1 and SilverBulletBand Thank this.
  5. beastr123

    beastr123 Road Train Member

    Joined:
    Jan 2, 2014
    Messages:
    2,838
    Thanks Received:
    23,229
    Location:
    Moose Jaw SK CAN
    0
    as Kyle says pulling to each side is the way to go with pipe of all types. A minimum of 3 and preferably 4 over all with at least 1 (in the middle or each end) over each layer will keep your pipe secure.
    Fittings and valves should be "fenced in" by pipe if a mixed load or in wooden crates strapped down. If shipped singly put them butted against the front of the deck and individually strapped.
    Nothing should move on the deck after tie-down including middle pipes or pieces.
    Hydrants are noticeably heavier than pipe and each one (or layer) should be tied separately and on the bottom .
    Portable straps are your friend on strait trucks.

    SilverBulletBand Thanks this.
  6. MooneyBravo

    MooneyBravo Heavy Load Member

    Joined:
    Feb 20, 2012
    Messages:
    847
    Thanks Received:
    1,215
    Location:
    Vermilion, Oh
    0
    I'm not a flatbed driver these days but I remember everything about what it required. I can't remember what kind of strap you called it but I do know when the forklift driver gets to the second one stacked on top of the first one you should throw a strap over that and then throw another strap on the one all the way up on top. Like I said I don't remember what they called that strap. You also put on what's called a smoke tarp over the top two stacks in the front of your load. You simply put the tarp on the front and tie it down to the steel banding that holds the pipe together with 4 bungee cords
    The forklift driver will usually give you the option to do this on the ground before he sticks it up on top.

    SilverBulletBand and D.Tibbitt Thank this.
  7. x1Heavy

    x1Heavy Road Train Member

    Joined:
    Mar 5, 2016
    Messages:
    34,017
    Thanks Received:
    42,135
    Location:
    White County, Arkansas
    0
    I see 4 or 5 side pockets. That pipe is light in weight so 4 inch straps through middle and over top evenly will do it.

    SilverBulletBand Thanks this.
  8. D.Tibbitt

    D.Tibbitt Road Train Member

    Joined:
    Apr 26, 2013
    Messages:
    21,418
    Thanks Received:
    145,644
    Location:
    Gettin' down westbound
    0
    1 strap and go just like all the local drivers do!! Lol but seriously, i tip my hat to u for asking this question. And i would agree with everything thats been said here. Good luck to u

    SilverBulletBand Thanks this.
  9. SilverBulletBand

    SilverBulletBand Light Load Member

    Joined:
    Dec 15, 2018
    Messages:
    288
    Thanks Received:
    230
    Location:
    Wetumpka, Alabama
    0
    Absolutely agree on the over-kill.

  10. SilverBulletBand

    SilverBulletBand Light Load Member

    Joined:
    Dec 15, 2018
    Messages:
    288
    Thanks Received:
    230
    Location:
    Wetumpka, Alabama
    0
    What are stakes ??
