Cat c15 Sdp rebuild help

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by dustinbrock, Jun 8, 2018.

Page 5 of 10
  1. DieselTech_Aus

    DieselTech_Aus Light Load Member

    Joined:
    Dec 20, 2017
    Messages:
    274
    Thanks Received:
    309
    Location:
    WA
    0
    I have one guy with the full conversion including 70pin ecm. has 8502 squirts with 800hp cam and 575hp 7CZ file. it puts over 610hp to the ground as it works every day with the 0000 BW non wastegated turbo.

    he's averaging about 500ltrs less on the same runs and weights as before the conversion over about 5000km. so he's putting another $500/week in his pocket after the conversion.. and his makes good grunt.

    2 others have the stock 6nz cam and 8501 squirts with an early 550hp 6nz file. they both report about a 280-300 litre saving a week on the same run with same weights over about 2800km. they also have the 0000 turbo

    DieselTech_Aus, Jun 17, 2018
    #41
    Oxbow, SAR and dustinbrock Thank this.
  2. DieselTech_Aus

    DieselTech_Aus Light Load Member

    Joined:
    Dec 20, 2017
    Messages:
    274
    Thanks Received:
    309
    Location:
    WA
    0
    Last edited: Jun 17, 2018
    DieselTech_Aus, Jun 17, 2018
    #42
    Oxbow, Cat sdp and dustinbrock Thank this.
  3. dustinbrock

    dustinbrock Road Train Member

    Joined:
    Apr 19, 2012
    Messages:
    1,308
    Thanks Received:
    901
    Location:
    North Battleford, SK
    0

    Ever heard of machine shops repairing camshafts? One can lobe and a rocker are like this so I was going to buy a new cam but the guy at the machine shop said they can repair them.....

    dustinbrock, Jun 18, 2018
    #43
    Oxbow and SAR Thank this.
  4. Cat sdp

    Cat sdp . .

    Joined:
    Apr 8, 2012
    Messages:
    21,183
    Thanks Received:
    75,085
    Location:
    Orion's Belt
    0

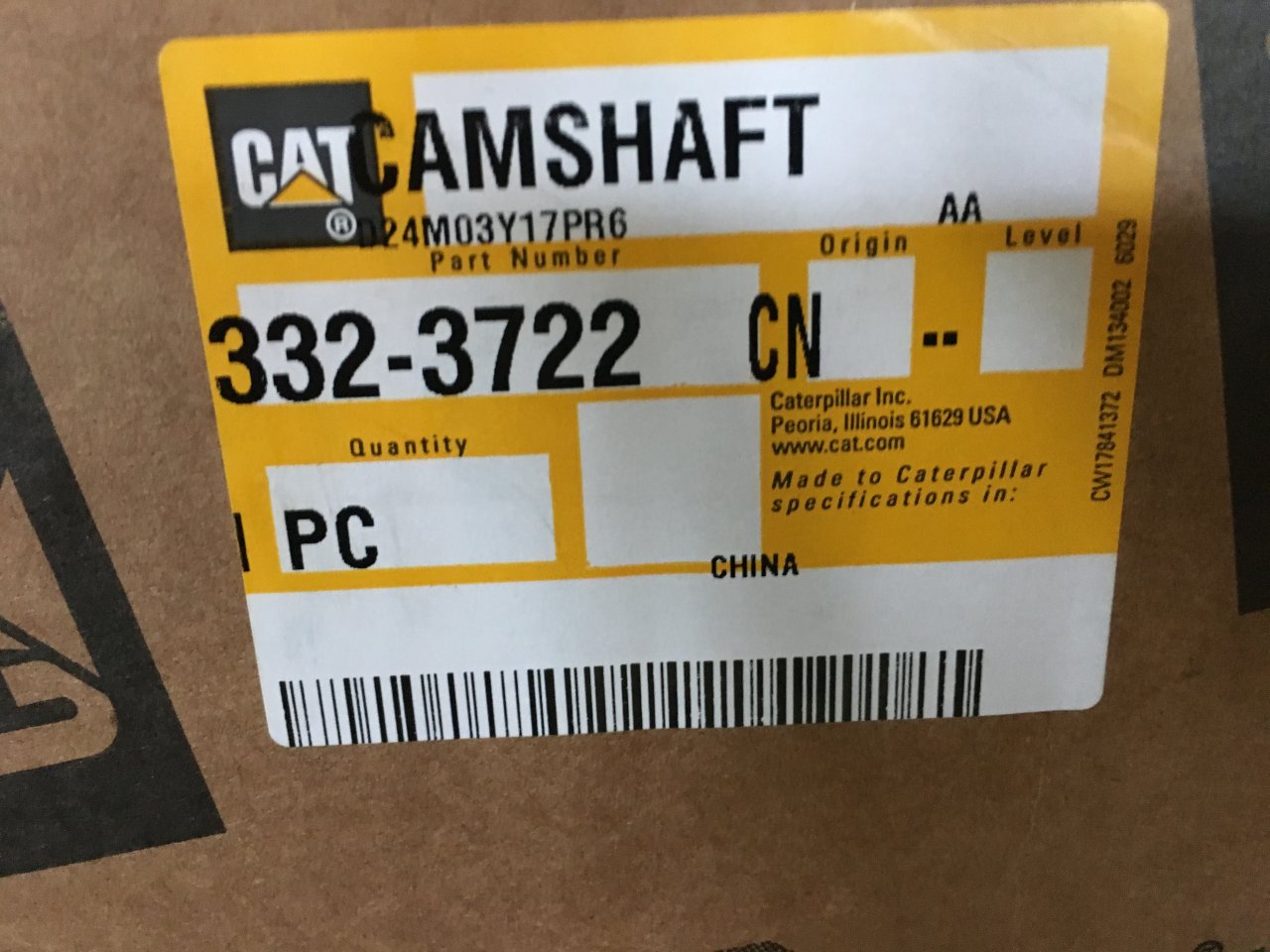

    No..... but China makes new ones......:(


    Cat sdp, Jun 18, 2018
    #44
    Oxbow and dustinbrock Thank this.
  5. A5¢

    A5¢ Medium Load Member

    Joined:
    Oct 30, 2017
    Messages:
    389
    Thanks Received:
    544
    0
    I do know that they can flame spray and built up some metals. We used to have metal rollers built up, but the metallurgy was hardly the same.
    From the picture, it seems like there is a fault in the metal and it came apart. Slag in the casting. That camshaft isn't that old, is it?

    A5¢, Jun 18, 2018
    #45
    Oxbow, SAR and dustinbrock Thank this.
  6. dustinbrock

    dustinbrock Road Train Member

    Joined:
    Apr 19, 2012
    Messages:
    1,308
    Thanks Received:
    901
    Location:
    North Battleford, SK
    0
    No it's not that old, the rest of it is in great shape. When my head gasket blew out I drove it 80km letting it get pretty hot so I assume that's where the damage came from.

    dustinbrock, Jun 18, 2018
    #46
    Oxbow and SAR Thank this.
  7. spsauerland

    spsauerland Road Train Member

    Joined:
    May 31, 2010
    Messages:
    4,296
    Thanks Received:
    10,891
    Location:
    West Harrison, In
    0
    Cummins ISX CM870's had a national back order on cams at least five years back and I got a pair that been spray welded and reground to put in a truck that I was overhauling. Quality seemed great a truck is still running with no issue. Cost was less than half.

    spsauerland, Jun 18, 2018
    #47
    Oxbow, pushbroom, SAR and 1 other person Thank this.
  8. A5¢

    A5¢ Medium Load Member

    Joined:
    Oct 30, 2017
    Messages:
    389
    Thanks Received:
    544
    0
    Well, then there's your answer! The things that machine shops can do now is nothing short of amazing.

    A5¢, Jun 18, 2018
    #48
    Dkredneck87, Oxbow and SAR Thank this.
  9. pushbroom

    pushbroom Road Train Member

    Joined:
    Sep 1, 2012
    Messages:
    1,780
    Thanks Received:
    7,319
    0
    I spun a bearing on my Can am quad. Sent the crank out. They cut it down, chrome plated it and ground it to size. Still running now.
    If the machine shop is reputable go right ahead. About all you get better with a new one is a year of parts warranty.

    pushbroom, Jun 18, 2018
    #49
    Oxbow, spsauerland and SAR Thank this.
  10. A5¢

    A5¢ Medium Load Member

    Joined:
    Oct 30, 2017
    Messages:
    389
    Thanks Received:
    544
    0
    Is that more pitting on the right side of the picture?

    A5¢, Jun 18, 2018
    #50
    Oxbow and SAR Thank this.
Page 5 of 10
