Changing hvac filters

Discussion in 'Western Star Forum' started by Bledfor Days, Jan 9, 2016.

  1. Bledfor Days

    Bledfor Days Bobtail Member

    14
    18
    Jan 9, 2016
    0
    I'm trying to get at the hvac filters on my 2014 4900 SF but can't figure out how to remove the cover under the dash. Manual is no help. I can only see one screw on bottom edge. I've promised myself I wouldn't pry until I break something

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. mountaingote

    mountaingote Road Train Member

    2,026
    7,911
    Sep 22, 2012
    0
    Most of those panels snap in and out

  4. Bledfor Days

    Bledfor Days Bobtail Member

    14
    18
    Jan 9, 2016
    0
    So I should pry harder? Lol. Thanks. I can't see any other option.

  5. mountaingote

    mountaingote Road Train Member

    2,026
    7,911
    Sep 22, 2012
    0
    If there aren't any screws that's the way to do it

  6. Cetane+

    Cetane+ Road Train Member

    1,304
    881
    Sep 29, 2013
    Albany, NY
    0
    Theres got to be a dealer open you can call the service department and find out before you bust something.

    Bledfor Days Thanks this.
  7. Animosus

    Animosus Medium Load Member

    443
    989
    Dec 7, 2015
    SE Wyoming
    0

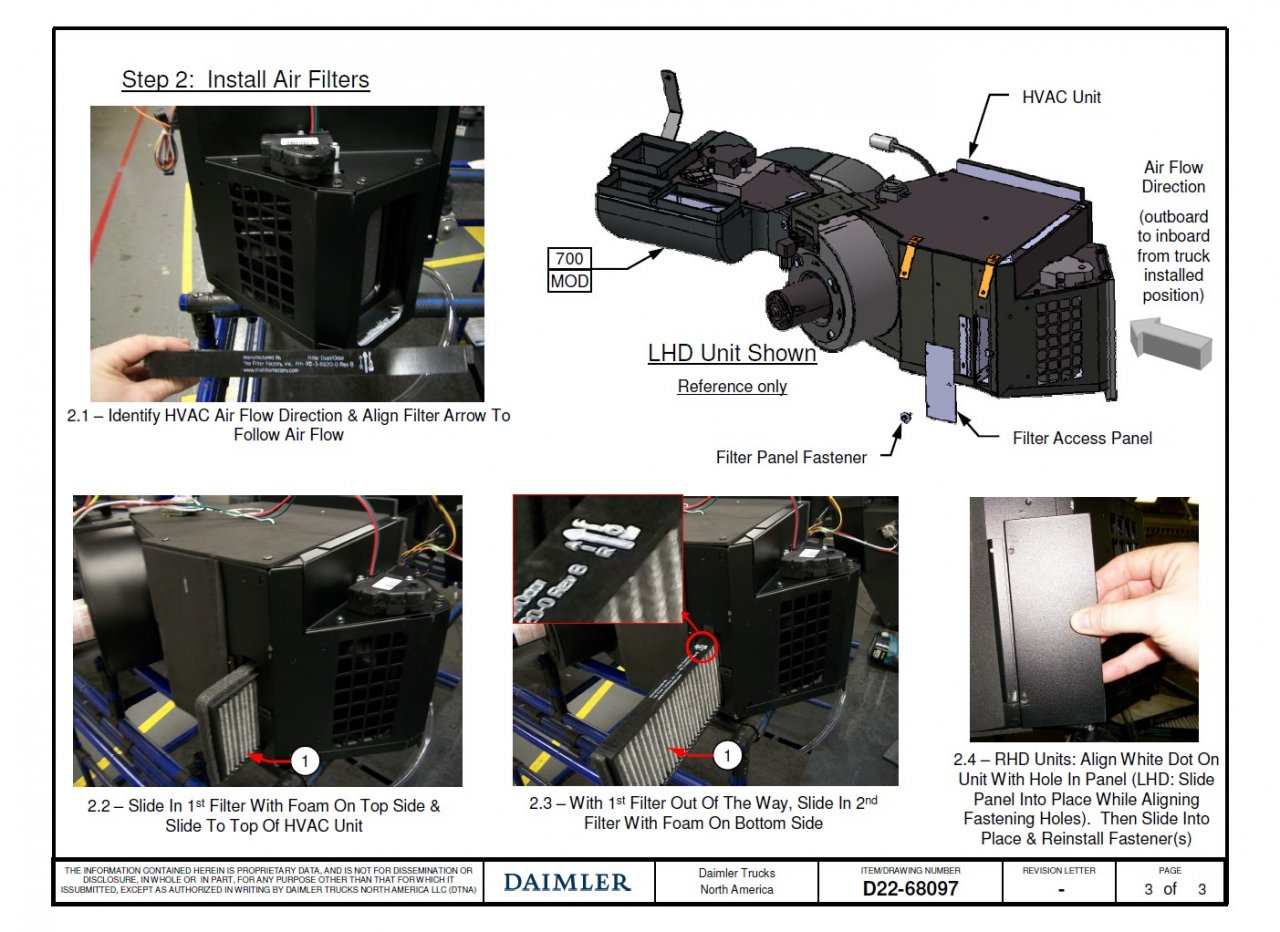

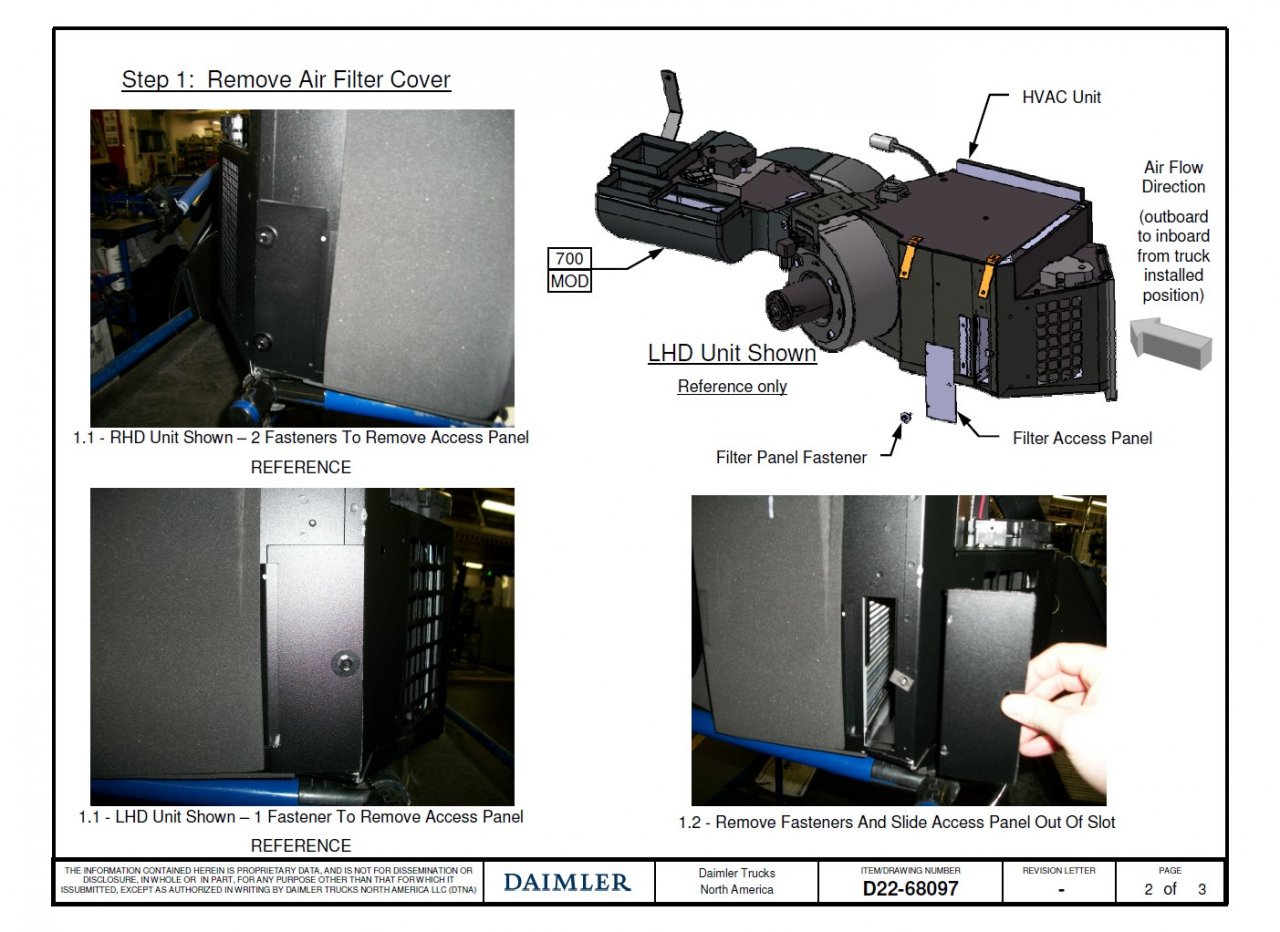

    Never personally changed one in a 4900. But here is diagram I found for a 2014 4900. It looks like there is only one fastener.

    584667285[1].jpg 527373231[2].jpg

    Bledfor Days and QUALITYTRUCK Thank this.
  8. Bledfor Days

    Bledfor Days Bobtail Member

    14
    18
    Jan 9, 2016
    0
    That helps a lot. Thanks.

  9. Star4900

    Star4900 Medium Load Member

    605
    515
    Mar 16, 2015
    Northern Ontario
    0
    Mine pretty much falls right off when I remove that one screw?

    Gotta add....doesn't Western Star have the absolute worst cab air filter setup there is? The filters are useless. And for a vocational truck, you would think they would make them easier to change.
    I even buy the upgraded washable filters and my dash is still covered in road salt after one trip. You don't dare put the fan on high or the dust storm will choke you.

  10. swaan

    swaan Road Train Member

    2,943
    4,343
    Jul 12, 2009
    BC canada
    0
    I just changed the filters in my 2012 4900fa for the first time. Trucks got 350,000km on it. They were dirty and needed to be changed. They were doing there job, the heater core looked clean as can be.
    Popped 2 new filters in there goodtogo!!

    I don't mind there setup, seems to work good.
    Keep in mind I'm also the kind of guy who turns the a/c on reserculation when I'm in a dusty jobsite.
