Click Click Boom!!!!!

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Goodysnap, May 14, 2020.

  1. pushbroom

    pushbroom Road Train Member

    1,644
    6,663
    Sep 1, 2012
    0
    Mis-aligned piston cooling nozzles. 5EK Cat 20201001_152451.jpg 20201001_152421.jpg

    Flint1, wore out, 650cat425 and 8 others Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Goodysnap

    Goodysnap Road Train Member

    2,025
    4,407
    Jul 12, 2017
    0
    Look at all the pretty colors. Where can I get one of those super heat treated liners?

    Flint1, pushbroom, 650cat425 and 2 others Thank this.
  4. Shawn2130

    Shawn2130 Medium Load Member

    601
    1,112
    Sep 20, 2015
    Ontario
    0
    Wow! That recent inframe didn’t last long with those colourful liners.

    650cat425 Thanks this.
  5. lester

    lester Road Train Member

    1,087
    2,543
    Jan 2, 2012
    NW, Iowa
    0
    I was gonna ask, that has to be a fairly recent rebuild with liners that clean and lots of cross hatch showing? Someone drop pistons in without removing squirters?

    650cat425 Thanks this.
  6. DeereRunner97

    DeereRunner97 Light Load Member

    119
    446
    Apr 18, 2019
    Ostrander, Ohio
    0
    So I just want to come back and let y’all know the issue I had with the coolant tank. The thermostat went out, but it never overheated. Thank gosh it was a simple fix, but thought I would check in and let y’all know. I’m doing the exhaust gaskets this week and let y’all know which one went bad. I appreciate the help!

    650cat425 Thanks this.
  7. Goodysnap

    Goodysnap Road Train Member

    2,025
    4,407
    Jul 12, 2017
    0
  8. 062

    062 Road Train Member

    3,923
    7,477
    Oct 20, 2013
    0
    650cat425 Thanks this.
  9. Goodysnap

    Goodysnap Road Train Member

    2,025
    4,407
    Jul 12, 2017
    0
    Nope, I cant work on em' if so.....

  10. spsauerland

    spsauerland Road Train Member

    3,522
    8,944
    May 31, 2010
    West Harrison, In
    0
    Excessive regens catch up with that one?

  11. Goodysnap

    Goodysnap Road Train Member

    2,025
    4,407
    Jul 12, 2017
    0
    Yea Im not sure. This thing was towed to us about 4 years ago with a supposed fresh overhaul, but a CNS. We rebuilt the fuel system and its been a money pit for the cutomer ever since. One thing after the other every year.

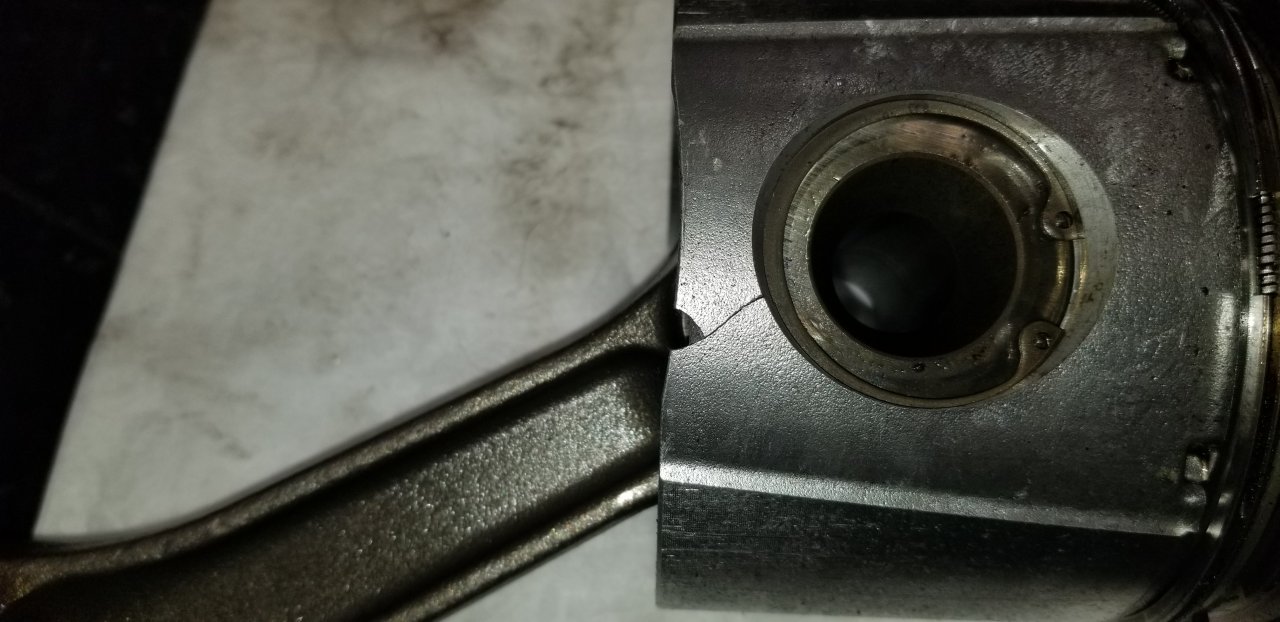

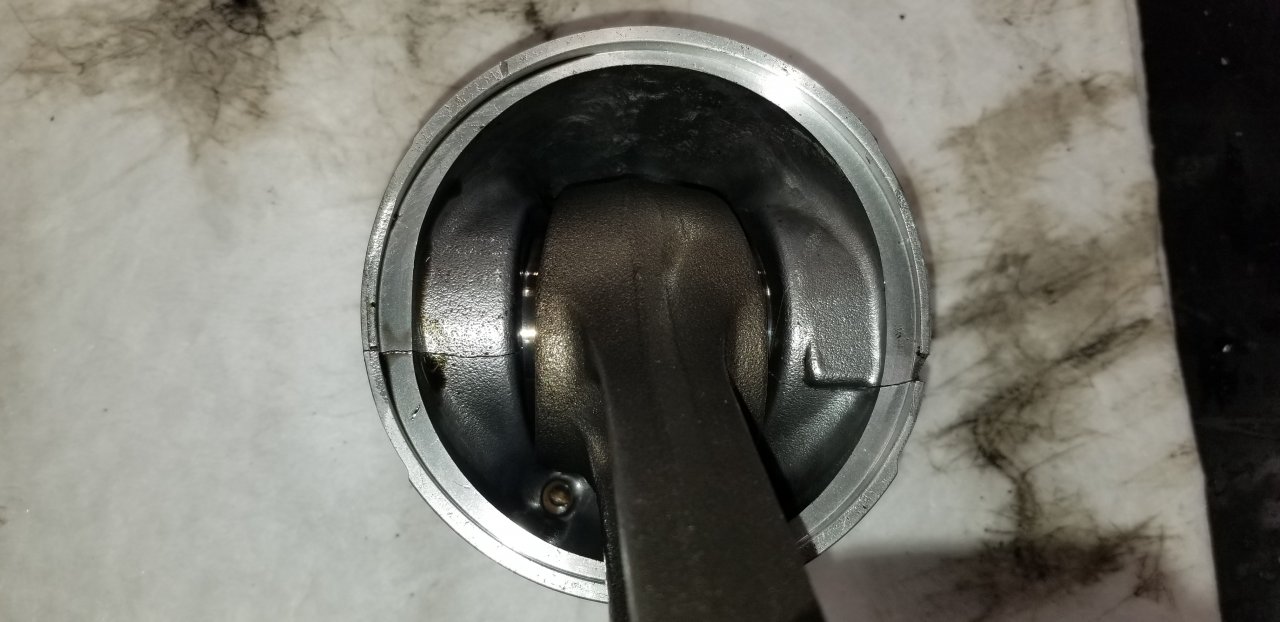

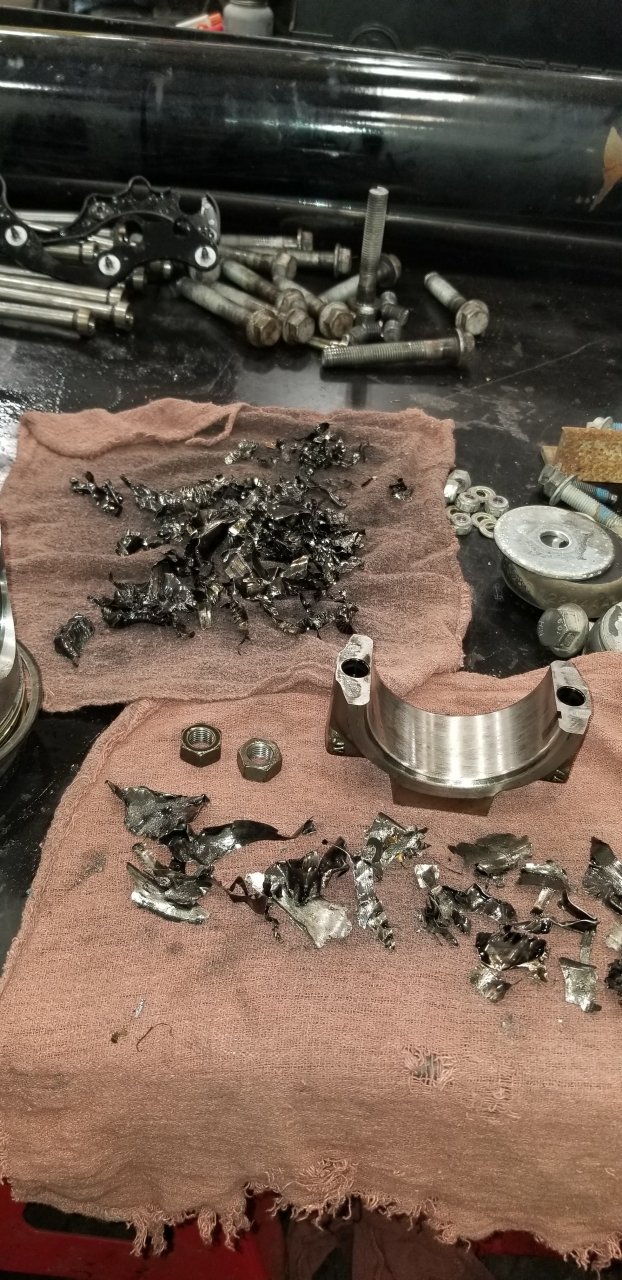

    Note the heavy fretting on the connecting rod cap.......it was tight. But no doubt the hammering of the rod broke the piston.

    Still running and had decent oil pressure too.

    Too bad a drop ins gonna way exceed what this old girl is worth.

    Last edited: Oct 14, 2020
