Coolant leak with pic's. DD15.

Discussion in 'Freightliner Forum' started by joseph1853, Oct 16, 2021.

  1. joseph1853

    joseph1853 Heavy Load Member

    847
    462
    Dec 12, 2010
    Waco, TX
    0

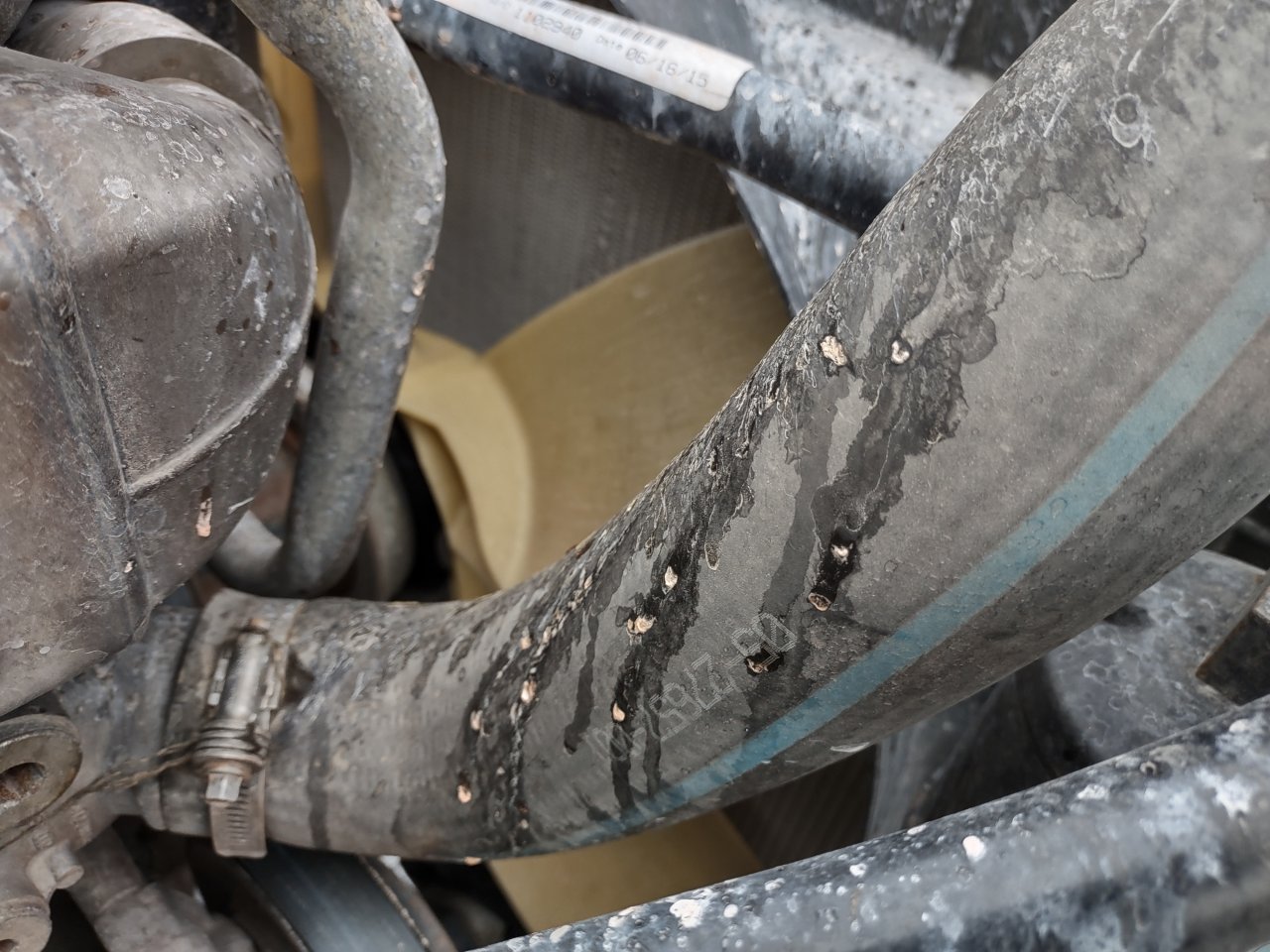

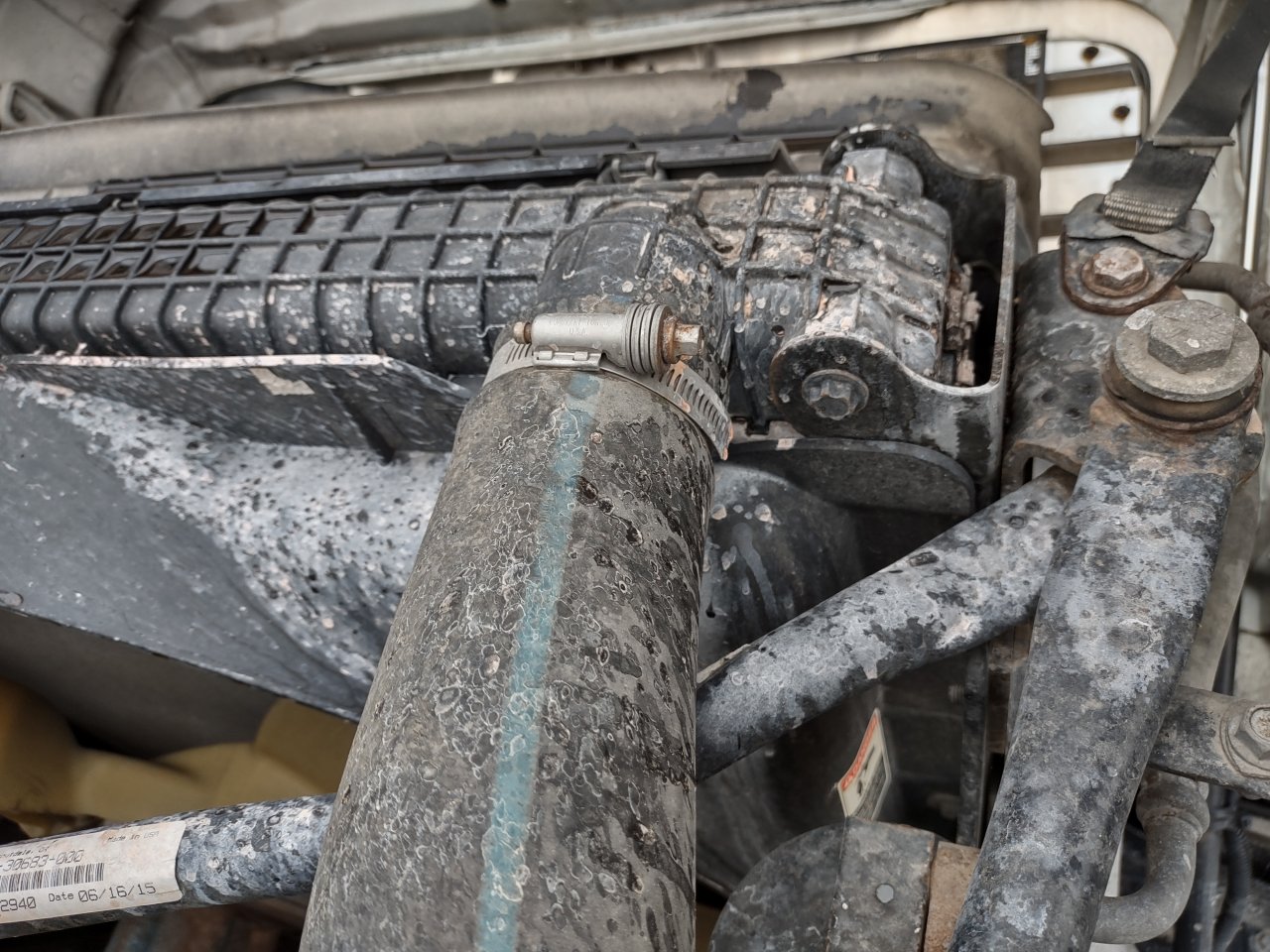

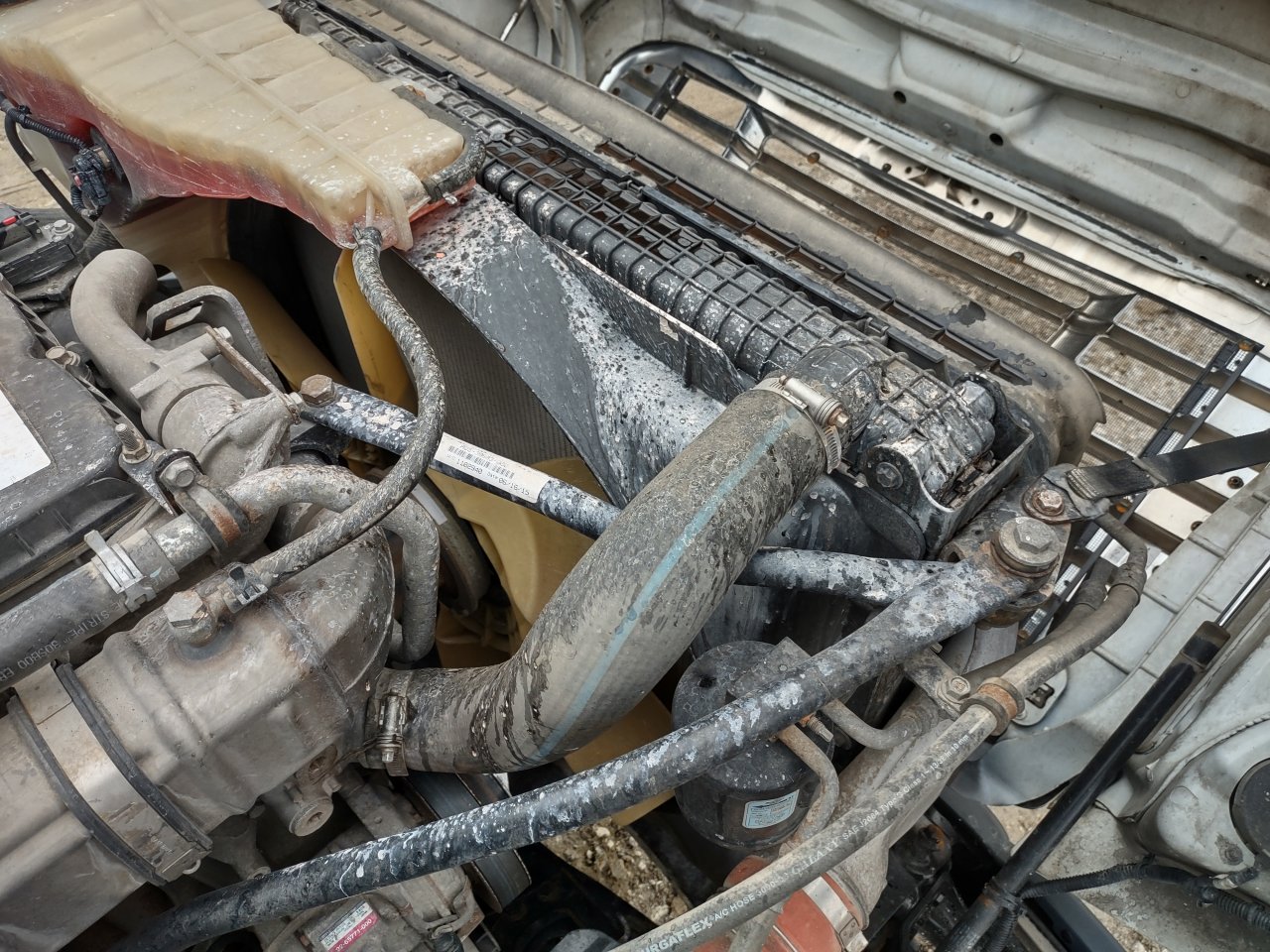

    Noticed a coolant smell coming from the engine bay area the other day. Opened the hood and low and behold the coolant level had decreased a bit. Maybe 2 inches or so but still above the minimum. Noticed there was coolant pooled on top of the radiator. Anyways I have some pictures that show more detail. I'm assuming it's coming from that main hose at the top, because the fan ends up blowing it all over the place. Probably get a pressure pump to pressurize the system. Thought I'd run it by you guys. probably where the clamps are. It's hard to pinpoint coolant leak pic 1.jpg coolant leak pic 2.jpg coolant leak pic 3.jpg coolant leak pic 1.jpg

    Rideandrepair and D.Tibbitt Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. D.Tibbitt

    D.Tibbitt Road Train Member

    13,773
    82,994
    Apr 26, 2013
    Gettin' down westbound
    0
    When that happened to mine it was a cracked neck on the radiator. So the plastic piece that is connected to the upper main hose is where it was cracked. I ran mine for awhile until i could get to a shop.

    Dave_in_AZ, msh, clausland and 3 others Thank this.
  4. Rideandrepair

    Rideandrepair Road Train Member

    12,176
    36,068
    Aug 8, 2015
    0
    That’s probably it. Might get lucky and it’s the tank, or hoses. I see some up there, on top of the shroud. Hard to say, fan blows it everywhere.

    joseph1853 and D.Tibbitt Thank this.
  5. Scoot 1971

    Scoot 1971 Light Load Member

    261
    341
    Nov 22, 2018
    0
    Mine was a cracked neck at top of radiator as well. Ran it til I got to shop near my home adding fluid as needed. $2600 and two weeks to replace radiator. Got truck back one week ago.

  6. Rideandrepair

    Rideandrepair Road Train Member

    12,176
    36,068
    Aug 8, 2015
    0
    I wonder if it could be plastic welded. They have a kit at Harbor freight. Use zip ties as welding rods. I’ve seen thus on UTube for automotive repairs. Wonder if it would work on the neck? Or some JB Weld epoxy.

    flood, joseph1853 and D.Tibbitt Thank this.
  7. joseph1853

    joseph1853 Heavy Load Member

    847
    462
    Dec 12, 2010
    Waco, TX
    0
    Probably. I'm going to get a pressure tester to verify where the leak is and probably try something along the lines of what you're talking about.

    Rideandrepair Thanks this.
  8. joseph1853

    joseph1853 Heavy Load Member

    847
    462
    Dec 12, 2010
    Waco, TX
    0
    Crap. That stinks. Probably ended up taking them around 3 hours to do it. I wonder if they have to take the entire hood assembly off? Or maybe they can fit it through the grill area. I would imagine that would be much easier if it would fit.

    Rideandrepair Thanks this.
  9. bad-luck

    bad-luck Road Train Member

    2,007
    3,028
    Nov 16, 2013
    Baltimore, Maryland
    0
    Most likely a cracked reservoir, cracked radiator or a bad hose. Top it off rev the engine up to say 1400 rpm. As the temperature of the engine rises you will find the culprit...

    joseph1853 and Rideandrepair Thank this.
  10. Rideandrepair

    Rideandrepair Road Train Member

    12,176
    36,068
    Aug 8, 2015
    0
    O Reilly’s and Autozone will loan you a pressure tester.

    joseph1853 Thanks this.
  11. joseph1853

    joseph1853 Heavy Load Member

    847
    462
    Dec 12, 2010
    Waco, TX
    0
    Yeah, that's my next stop. Rent one of their pressure testers. Hopefully, it will have an adapter that fits.

    Rideandrepair Thanks this.
