DD15 oil Leak

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by reelheavy, Jan 27, 2022.

  1. reelheavy

    reelheavy Light Load Member

    89
    48
    Mar 15, 2017
    Maryland
    0

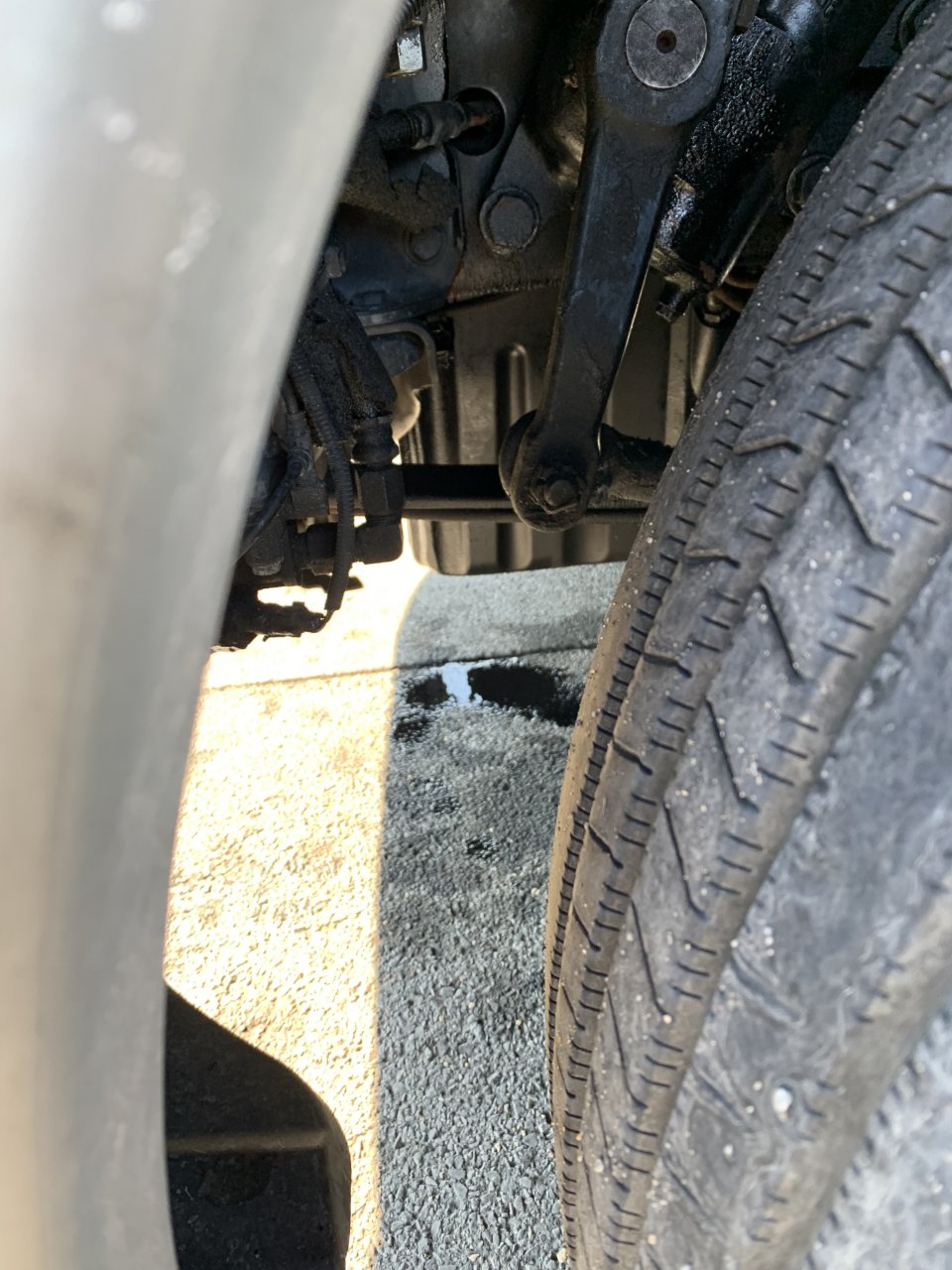

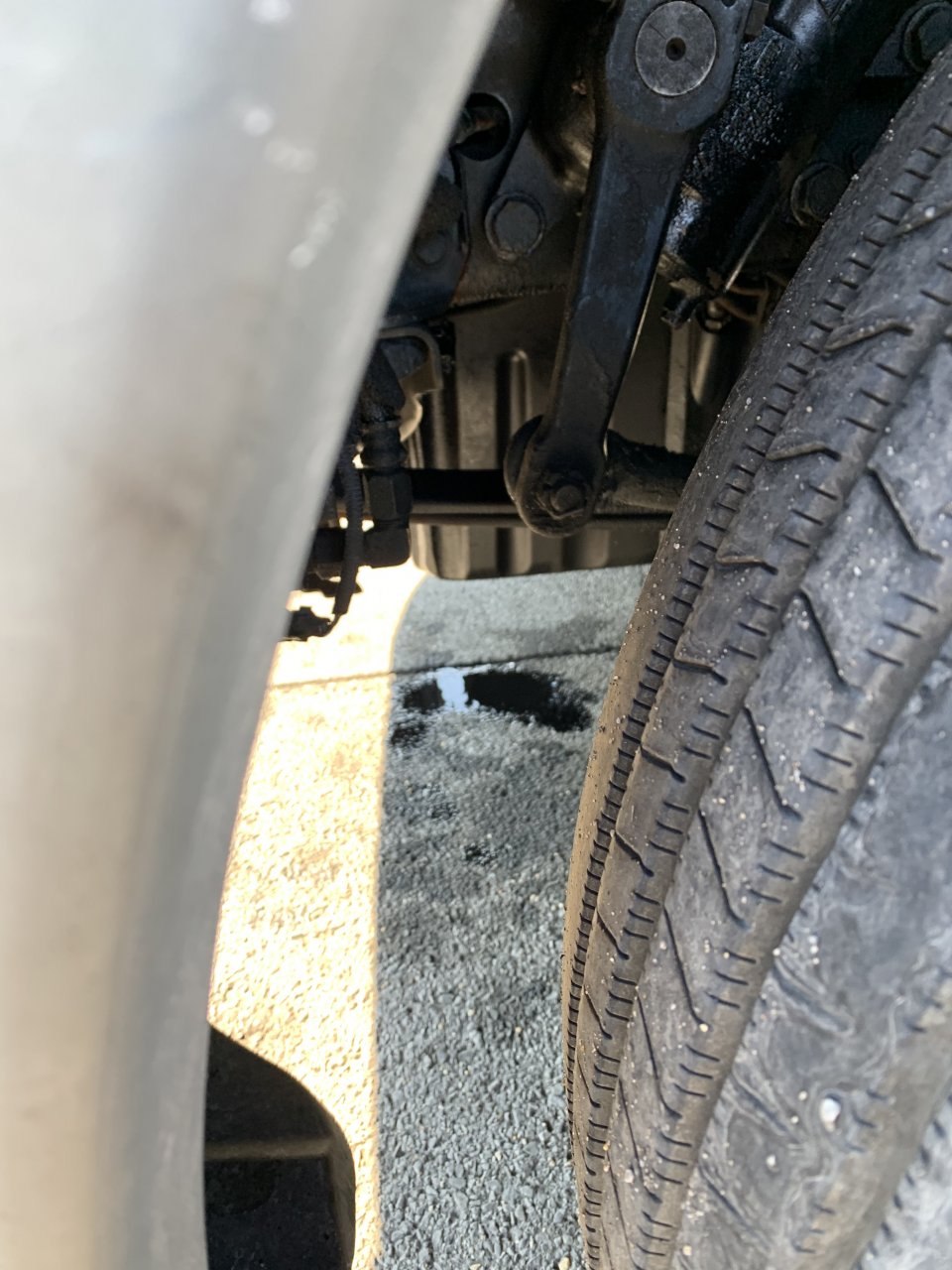

    6782BB39-8377-465C-ADFD-8E98BD6DBEA4.jpeg Hey All!
    I have a 2012 Cascadia with a DD15 725k miles and I discovered a oil leak after pre tripping this morning. I’m out on the road heading home. To hopefully find the culprit, it looks like it is a leak in front or on top of the oil pan the front vertical part of the oil pan is wet. I have been in the northeast so I have be having to run the truck all night to stay warm. I change oil every 15k miles.

    In July I did have the pick up tubes in the pan replaced. But never noticed any thing until

    Based off the picture has anyone had a similar issue and or what are some possible things to look for that may be the issue? Seals, gaskets, fittings, etc. cracked oil pan?


    Attached Files:

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. uncleal13

    uncleal13 Road Train Member

    3,496
    5,484
    Apr 9, 2009
    Humboldt, Sk
    0
    Judging by the location it is probably leaking from the crankcase breather. Here’s a good video about changing it.

    msh, reelheavy and baha Thank this.
  4. baha

    baha Road Train Member

    3,952
    2,548
    Jul 25, 2013
    ga
    0
    Ck. For sealing washer under drain plug if it was left off last oil change it maybe leaking from around plug?

    reelheavy Thanks this.
  5. reelheavy

    reelheavy Light Load Member

    89
    48
    Mar 15, 2017
    Maryland
    0
    With this crankcase breather since it is on the passenger side of the block would it cause the leak to be in the front of the pan closer to the front bumper??

  6. uncleal13

    uncleal13 Road Train Member

    3,496
    5,484
    Apr 9, 2009
    Humboldt, Sk
    0
    No, middle of block.

    reelheavy Thanks this.
  7. goga

    goga Medium Load Member

    699
    1,206
    Nov 11, 2021
    Earth..
    0
    How hard is it to get under and look? If it is way too hard, take it to any truck stop that has oil change pit and ask mechanic to look where it is leaking.

    LoneRanger Thanks this.
  8. reelheavy

    reelheavy Light Load Member

    89
    48
    Mar 15, 2017
    Maryland
    0
    Climbed under it with my flash light wiped the area off and waited for it continue to leak seen the oil couldn’t quite pin point where it was coming from, didn’t want to go crazy taking stuff apart laying on the ground in 10 degree cold with the wind blowing and limited tools.

  9. goga

    goga Medium Load Member

    699
    1,206
    Nov 11, 2021
    Earth..
    0
    Add oil to the level and get home, there will be a better chance to do what's necessary.

  10. reelheavy

    reelheavy Light Load Member

    89
    48
    Mar 15, 2017
    Maryland
    0

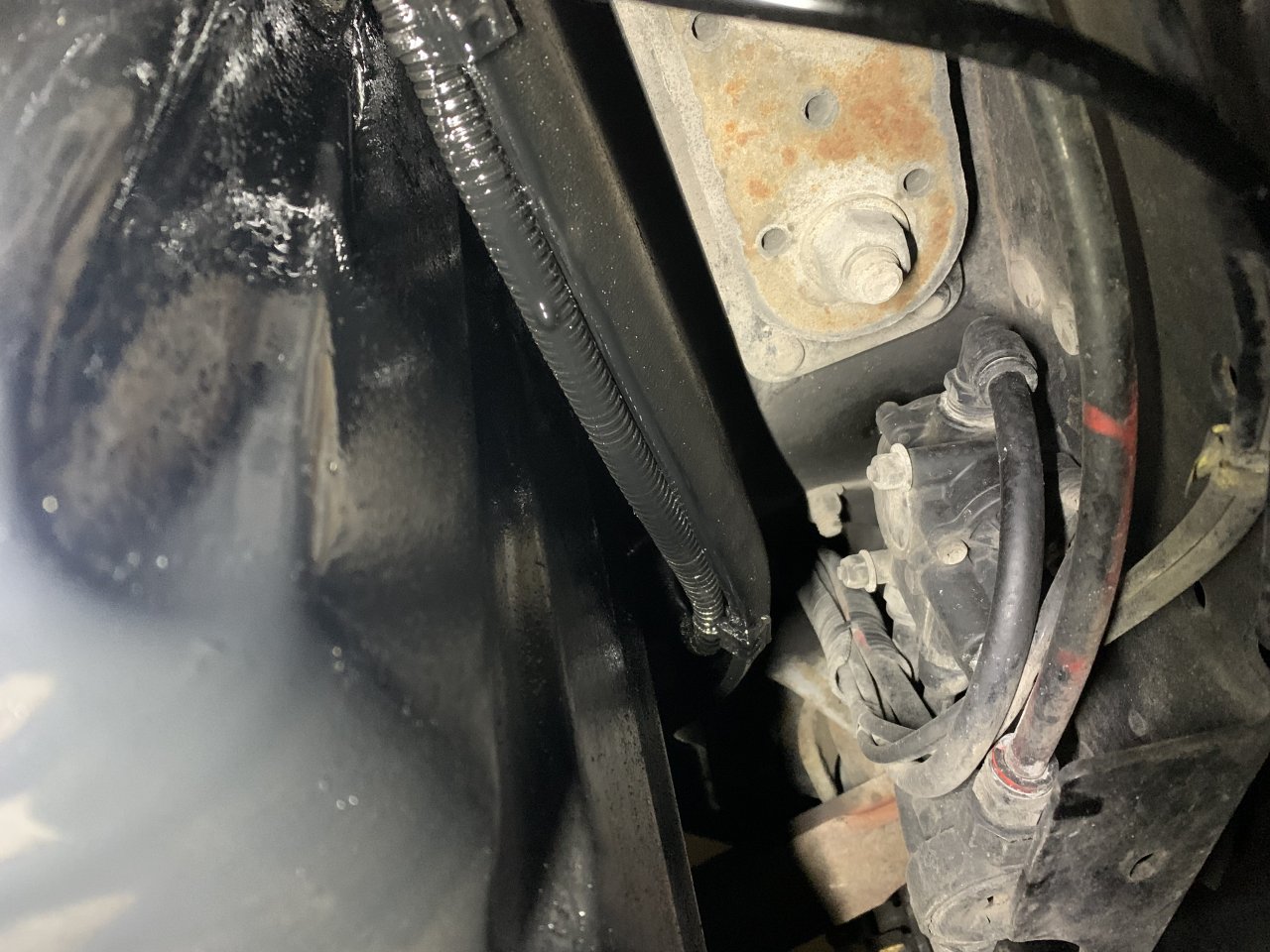

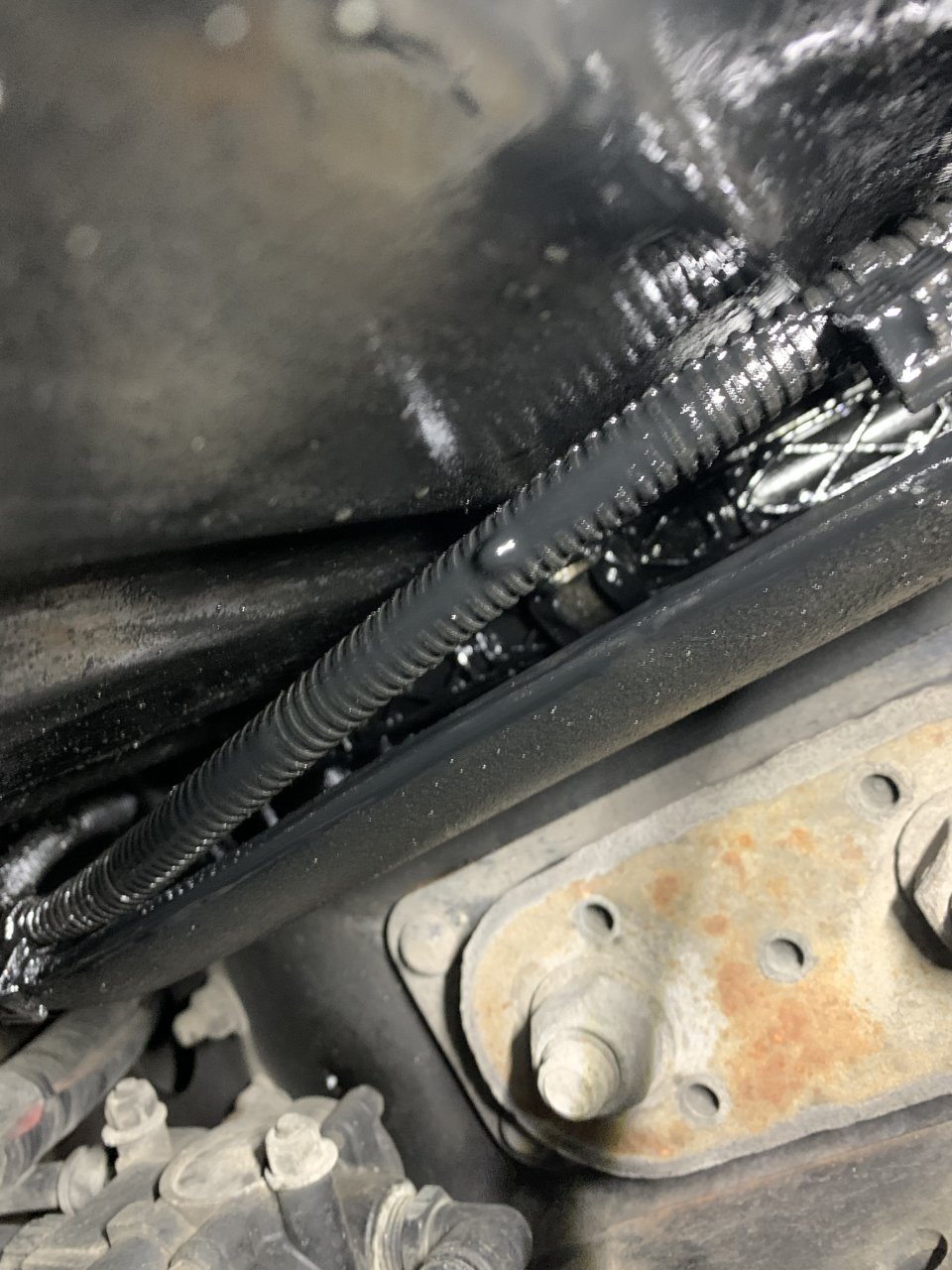

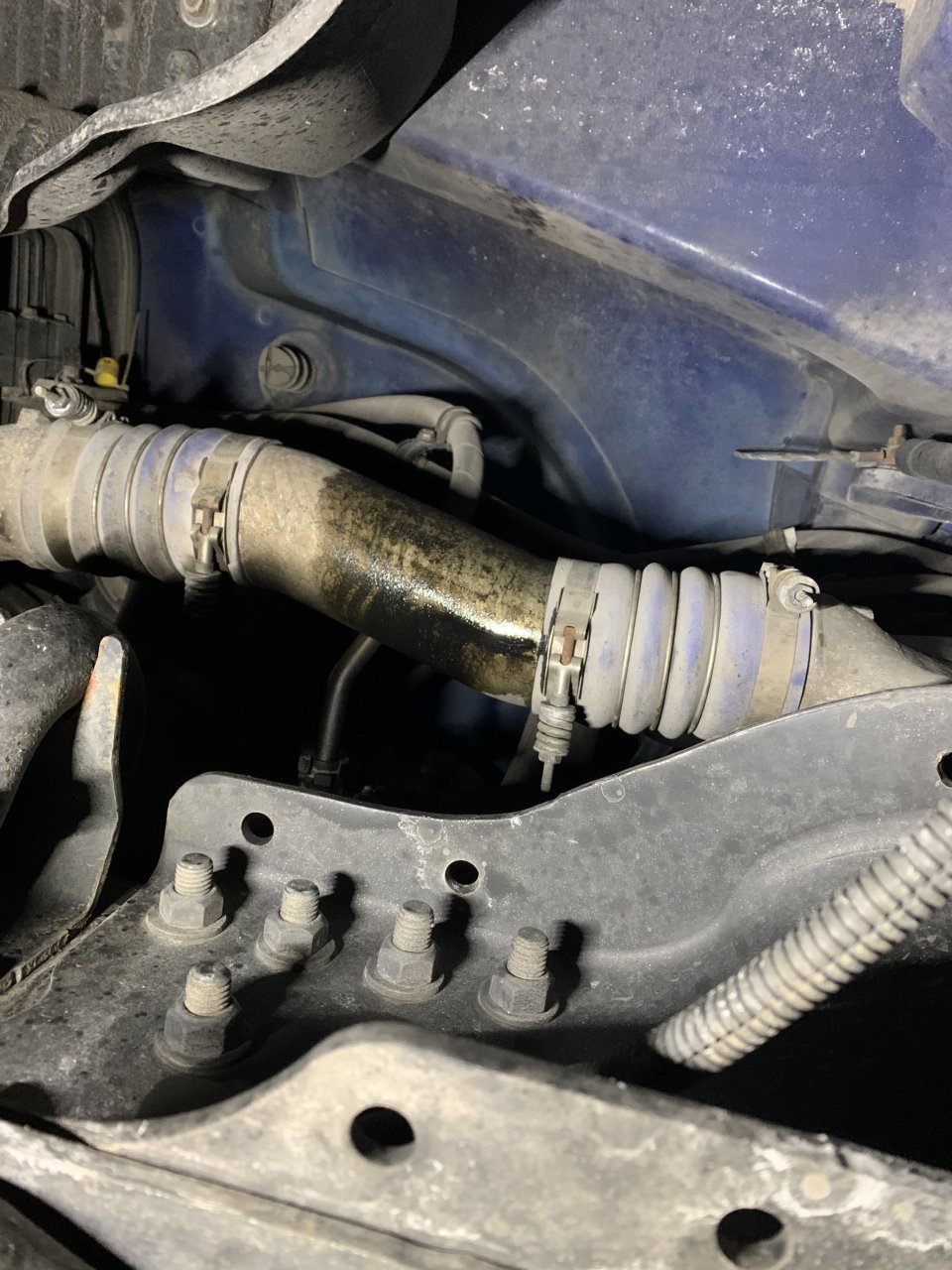

    710B0776-F53C-4BBE-A513-FB21FF0172C7.jpeg B8C3736D-ADEC-4036-B54F-199F809C2AEA.jpeg 83395D8F-6A09-4871-A2B2-302E6E884D2F.jpeg B87CCD8A-CC57-4952-81A0-05727996E8DB.jpeg

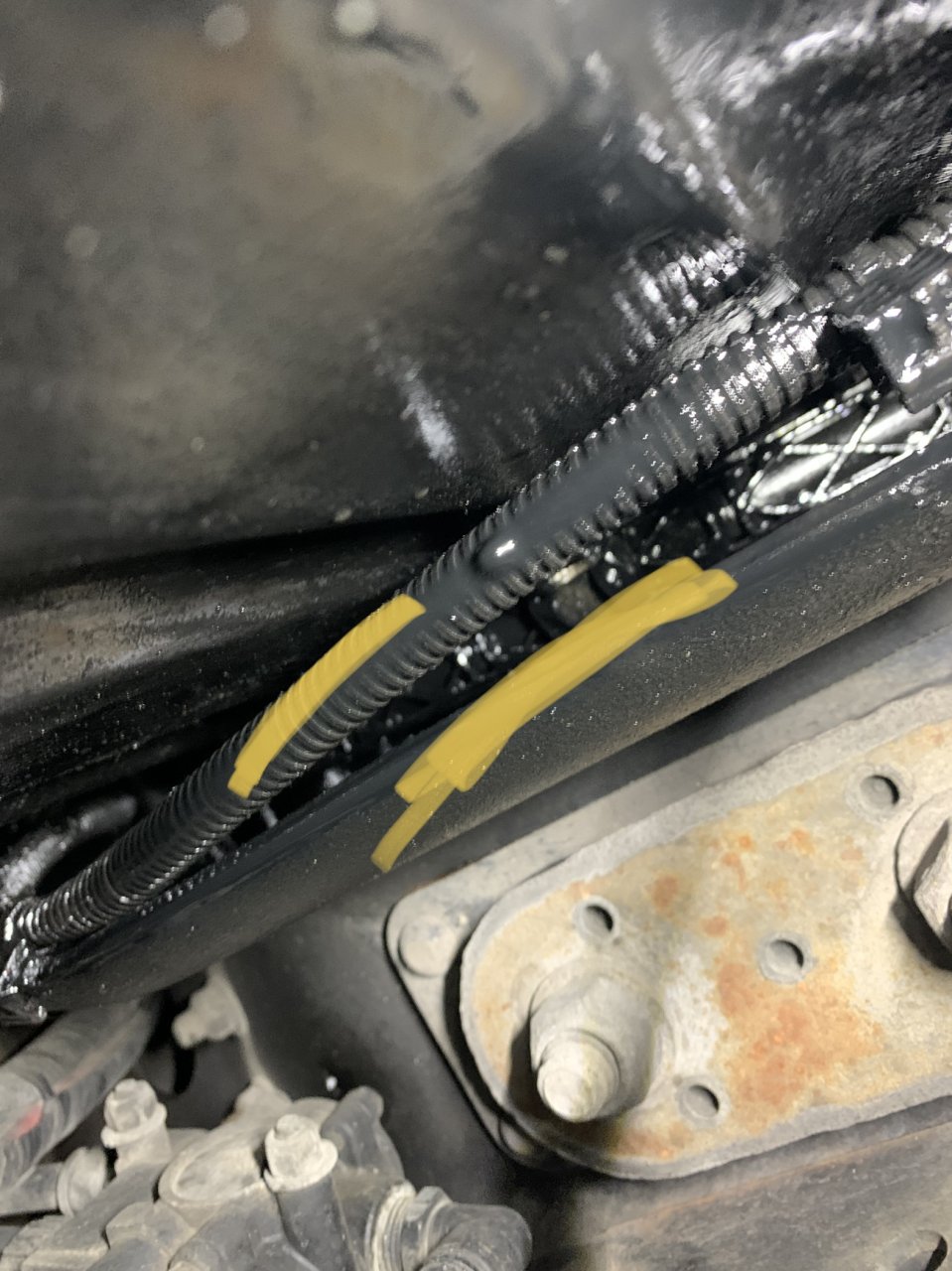

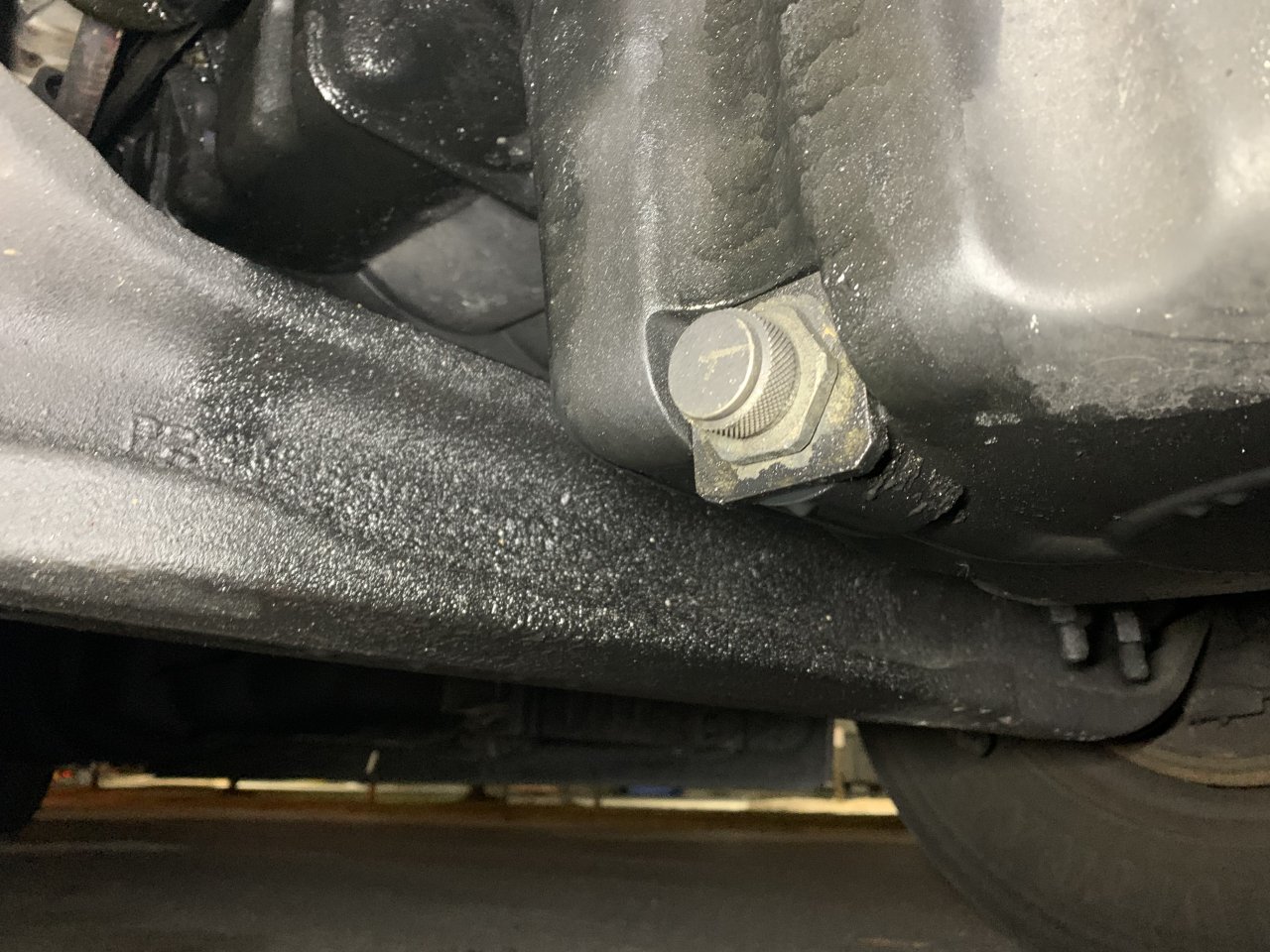

    More pics drain plug looked good. I think the culprit is up where I highlighted the picture in yellow CE1F48F4-F144-4147-9EF5-4CE57145F3D7.jpeg


    Attached Files:

  11. uncleal13

    uncleal13 Road Train Member

    3,496
    5,484
    Apr 9, 2009
    Humboldt, Sk
    0
    Looks like front seal. Probably didn’t quite get it right when they had the oil pan off for the seals on the oil pick up tubes.
