DDEC 3 TO DDEC 4 ENGINE SWAP

Discussion in 'Trucks [ Eighteen Wheelers ]' started by Peterbiltt, May 10, 2025 at 7:09 PM.

  1. May 10, 2025 at 7:09 PM #1
    Peterbiltt

    Peterbiltt Light Load Member

    236
    86
    Aug 21, 2014
    Ontario Canada
    0
    I am getting ready to swap out my DDEC 3 for a DDEC 4, I am assuming everything is plug and play wiring wise, but i had a question about the wiring harnesses around the engine. As detroits have a harness going around from the rear of the block. Fan control, coolant temp senso. Will my ddec 3s work or will i have to get new ones specific to the ddec 4 ?

    Peterbiltt, May 10, 2025 at 7:09 PM
    Peterbiltt, May 10, 2025 at 7:09 PM
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. May 10, 2025 at 11:02 PM #2
    BigJls1

    BigJls1 Medium Load Member

    482
    415
    Dec 25, 2012
    0
    Other than some parameters in the ecm conf. You will be money ahead to get a DDEC 4 sensor harness, and DDEC 4 boost sensor. What intake manifold do you have? some can take both the ddec3 and ddec 4 boost sensors. I just did this for a guy, and that was the only sensor we changed.

    Harness Engine Detroit #1102-8009
    Detroit 60 Series 12.7L Engine
    Replaces OEM Part Number:23513558

    BigJls1, May 10, 2025 at 11:02 PM
    BigJls1, May 10, 2025 at 11:02 PM
    #2
    Peterbiltt, Deezl Smoke and Rideandrepair Thank this.
  4. May 12, 2025 at 12:46 PM #3
    Peterbiltt

    Peterbiltt Light Load Member

    236
    86
    Aug 21, 2014
    Ontario Canada
    0
    I do not have the part number of the Intake that I currently have.
    Is that harness number you provided particular to the ddec 3 or ddec 4? Or does it crossover both models?

    Peterbiltt, May 12, 2025 at 12:46 PM
    Peterbiltt, May 12, 2025 at 12:46 PM
    #3
  5. May 12, 2025 at 10:28 PM #4
    little cat 500

    little cat 500 Road Train Member

    2,046
    1,090
    Jan 17, 2010
    Abbottstown PA
    0
    only sensor different from 3 to 4 is boost sensor just use your 3 harness on the 4

    little cat 500, May 12, 2025 at 10:28 PM
    little cat 500, May 12, 2025 at 10:28 PM
    #4
  7. May 13, 2025 at 2:58 PM #5
    Peterbiltt

    Peterbiltt Light Load Member

    236
    86
    Aug 21, 2014
    Ontario Canada
    0
    23517437 this is my intake and based on my research this crosses over into ddec 4s.

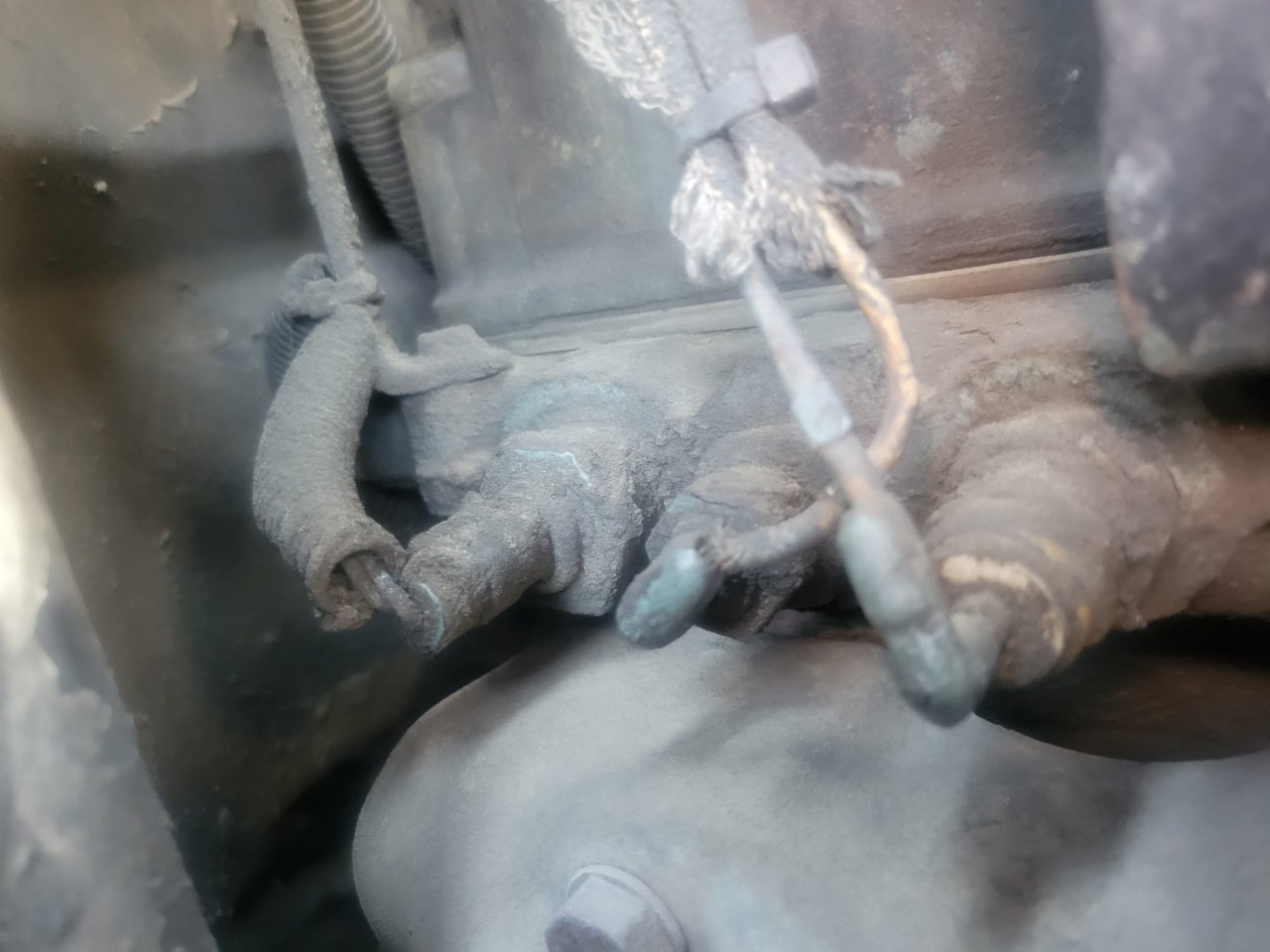

    Now for my sensors I have this setup currently. DDEC 4s use a single sensor as shown in my other picture.


    Attached Files:

    Peterbiltt, May 13, 2025 at 2:58 PM
    Peterbiltt, May 13, 2025 at 2:58 PM
    #5
  8. May 13, 2025 at 2:58 PM #6
    Peterbiltt

    Peterbiltt Light Load Member

    236
    86
    Aug 21, 2014
    Ontario Canada
    0
    Ddec 4 setup


    Attached Files:

    Peterbiltt, May 13, 2025 at 2:58 PM
    Peterbiltt, May 13, 2025 at 2:58 PM
    #6
