Detroit 60 series frame leaking

Discussion in 'Questions From New Drivers' started by sunny84, Dec 3, 2020.

Page 1 of 4
  1. Dec 3, 2020 #1
    sunny84

    sunny84 Bobtail Member

    26
    14
    Jun 19, 2016
    0


    Attached Files:

    sunny84, Dec 3, 2020
    sunny84, Dec 3, 2020
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Dec 3, 2020 #2
    sunny84

    sunny84 Bobtail Member

    26
    14
    Jun 19, 2016
    0

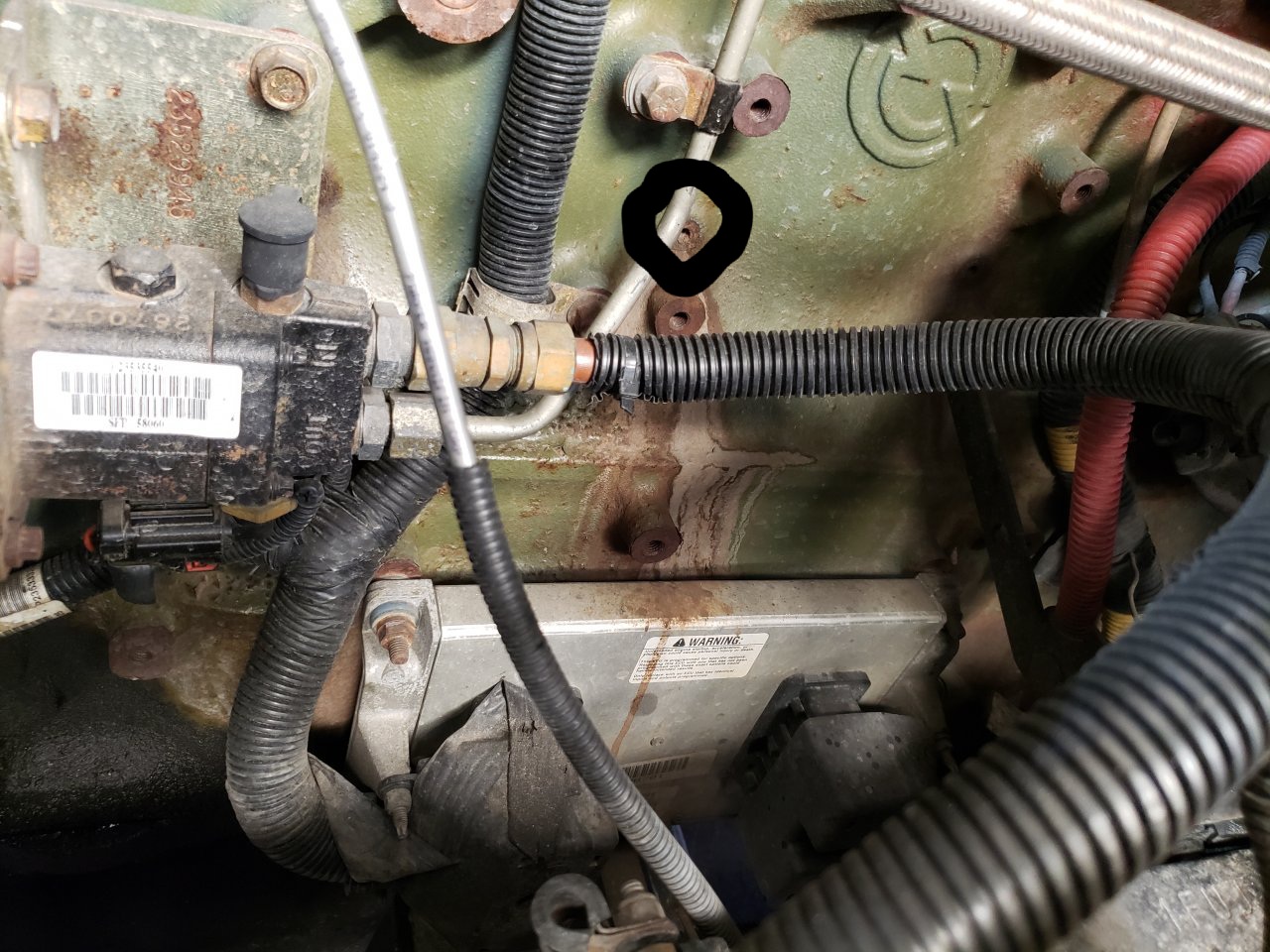

    Can somebody tell me what is this leaking?

    sunny84, Dec 3, 2020
    sunny84, Dec 3, 2020
    #2
  4. Dec 3, 2020 #3
    Allinone777

    Allinone777 Bobtail Member

    11
    15
    Nov 2, 2020
    0
    Condense water

    Allinone777, Dec 3, 2020
    Allinone777, Dec 3, 2020
    #3
  5. Dec 3, 2020 #4
    sunny84

    sunny84 Bobtail Member

    26
    14
    Jun 19, 2016
    0
    is
    Why its leaking? never happened before..last week i have replaced the water pump and after that i noticed my coolant reservoir's top turned black but no oil found in the coolant..i don't know what is wrong?

    sunny84, Dec 3, 2020
    sunny84, Dec 3, 2020
    #4
  7. Dec 3, 2020 #5
    Moosetek13

    Moosetek13 Road Train Member

    13,808
    16,322
    Nov 1, 2010
    Burnsville, MN
    0
    Is it a small corroded freeze plug?

    And, it looks like the engine block - not the frame.

    Moosetek13, Dec 3, 2020
    Moosetek13, Dec 3, 2020
    #5
  8. Dec 3, 2020 #6
    jamespmack

    jamespmack Road Train Member

    19,160
    207,393
    Mar 25, 2014
    OH
    0

    There are 6 of those holes with normally a black hand push in plug. When they are gone, missing and leaking. You need cylinder liner orings.

    Sorry for the bad news.

    jamespmack, Dec 3, 2020
    jamespmack, Dec 3, 2020
    #6
    xsetra, Dino soar, Judge and 4 others Thank this.
  9. Dec 3, 2020 #7
    Rideandrepair

    Rideandrepair Road Train Member

    16,526
    53,944
    Aug 8, 2015
    0

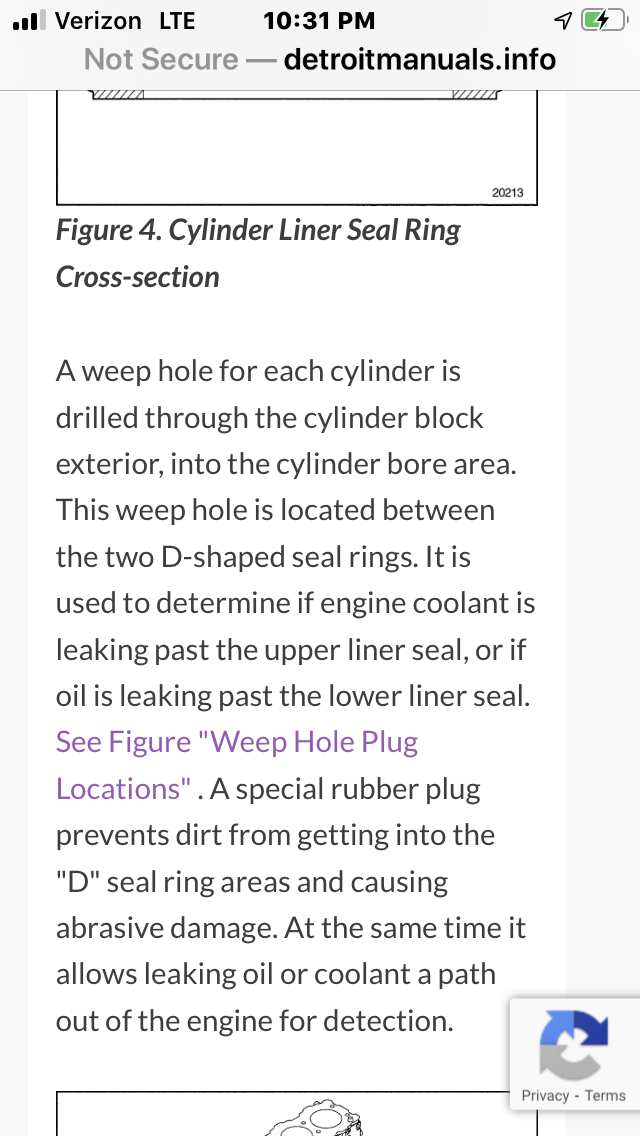

    1B86C806-5787-43A7-87E1-7F21DD83D1FD.png 823D4E98-BE4C-4B2C-A965-A90F9E5E8A95.png Short answer, illustration #5 upper D ring is leaking coolant.

    Rideandrepair, Dec 3, 2020
    Rideandrepair, Dec 3, 2020
    #7
    tupperwolf, xsetra, Dino soar and 2 others Thank this.
  10. Dec 3, 2020 #8
    sunny84

    sunny84 Bobtail Member

    26
    14
    Jun 19, 2016
    0
    What should i do now?

    sunny84, Dec 3, 2020
    sunny84, Dec 3, 2020
    #8
    jamespmack and Rideandrepair Thank this.
  11. Dec 3, 2020 #9
    sunny84

    sunny84 Bobtail Member

    26
    14
    Jun 19, 2016
    0
    What repair it needs now?

    sunny84, Dec 3, 2020
    sunny84, Dec 3, 2020
    #9
    Rideandrepair Thanks this.
  12. Dec 3, 2020 #10
    Rideandrepair

    Rideandrepair Road Train Member

    16,526
    53,944
    Aug 8, 2015
    0
    Head needs to come off. Cylinder removed, inspected, re used or replaced. O rings replaced. Re installed, with new head gasket and bolts. With all the Labor costs. Might as well spend a few thousand more and do an inframe overhaul, while the heads off.

    Rideandrepair, Dec 3, 2020
    Rideandrepair, Dec 3, 2020
    #10
    Dino soar, God prefers Diesels and Flint1 Thank this.
