Detroit 6067MK60 Series 60 missing something?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by crunk, Apr 17, 2023.

Page 1 of 2
  1. Apr 17, 2023 #1
    crunk

    crunk Bobtail Member

    6
    7
    Apr 17, 2023
    0
    Hi everybody,

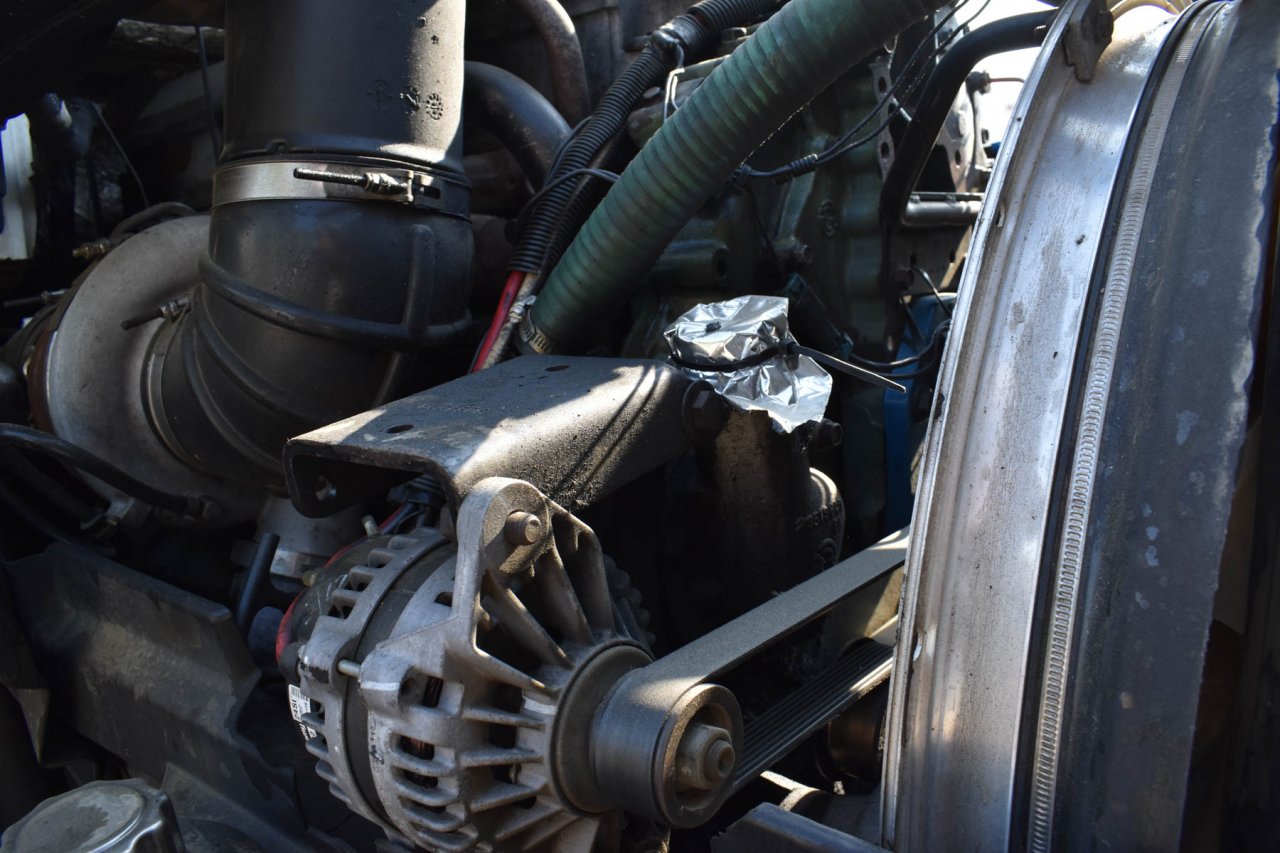

    Let me start by saying I'm new to all this and appreciate any help y'all can give. I've got a 2000 Detroit Diesel 6067MK60 and I'm trying to find the part that's supposed to go where the aluminum foil is in the photo. Does anybody know what's supposed to go there or a part number to get a new one? Thanks. Series 60 missing part.jpg

    crunk, Apr 17, 2023
    crunk, Apr 17, 2023
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Apr 17, 2023 #2
    nikmirbre

    nikmirbre Road Train Member

    5,431
    9,804
    Jul 27, 2011
    High Point NC
    0
    nikmirbre, Apr 17, 2023
    nikmirbre, Apr 17, 2023
    #2
    Rideandrepair Thanks this.
  4. Apr 17, 2023 #3
    Big Road Skateboard

    Big Road Skateboard Road Train Member

    6,183
    33,958
    May 2, 2021
    0
    I can't see much in the pic but looks like egr flex is missing IIRC.

    Google the part # on the bottom piece

    Big Road Skateboard, Apr 17, 2023
    Big Road Skateboard, Apr 17, 2023
    #3
    Rideandrepair Thanks this.
  5. Apr 17, 2023 #4
    crunk

    crunk Bobtail Member

    6
    7
    Apr 17, 2023
    0

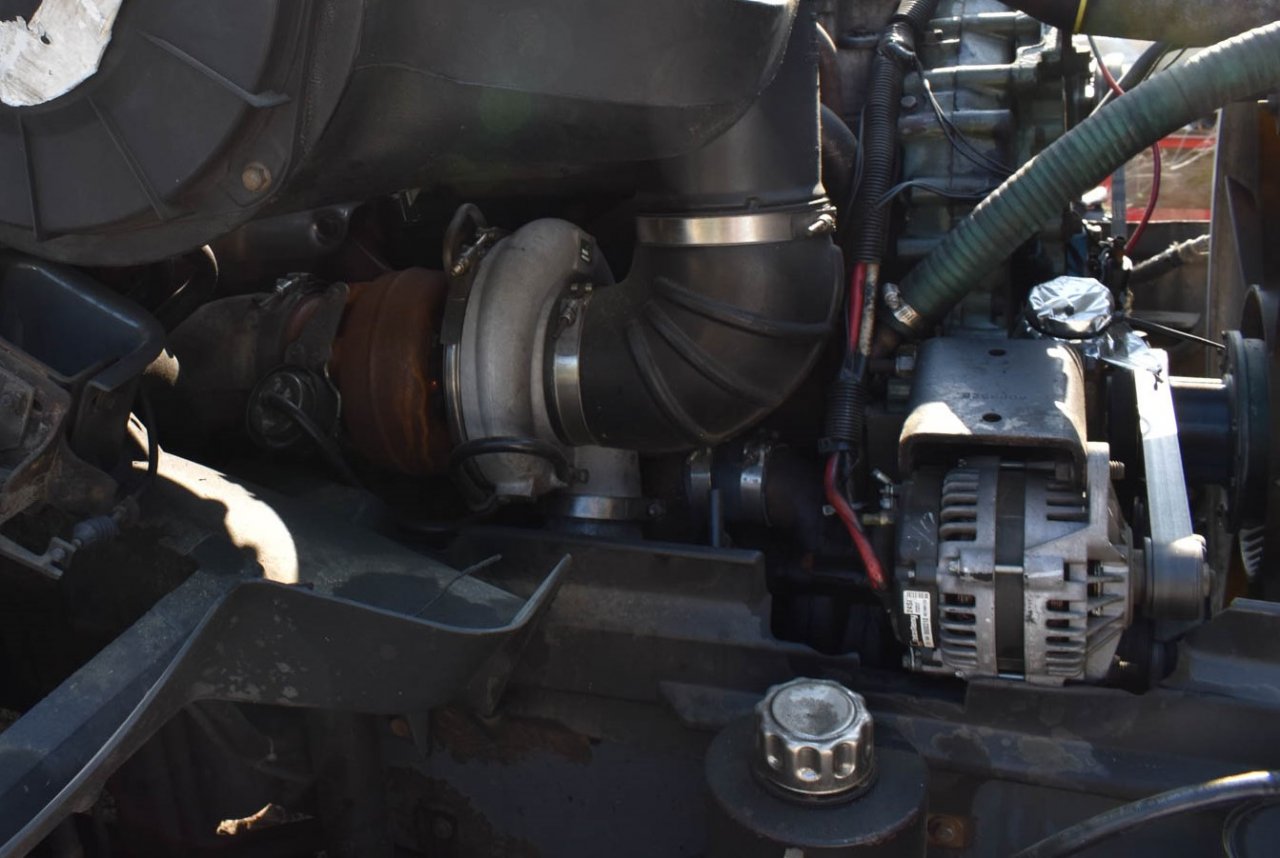

    Thanks for the response Big Road Skateboard. I only have two pics to work with and can't make out what exactly the part number is. It looks like 2351xxxx which is still thousands of possible part numbers. Here's the second pic if it helps. Series 60 missing part 2.jpg

    crunk, Apr 17, 2023
    crunk, Apr 17, 2023
    #4
    Rideandrepair and Big Road Skateboard Thank this.
  7. Apr 17, 2023 #5
    MRMTRANS

    MRMTRANS Medium Load Member

    363
    390
    Apr 28, 2015
    0
    Is it the oil fill tube, but missing the lid/cap? Being that it is year 2000, don't think any egr engines were produced that early (unless some beta engine?)

    MRMTRANS, Apr 17, 2023
    MRMTRANS, Apr 17, 2023
    #5
    Oxbow, Bean Jr., Rideandrepair and 2 others Thank this.
  8. Apr 17, 2023 #6
    Big Road Skateboard

    Big Road Skateboard Road Train Member

    6,183
    33,958
    May 2, 2021
    0
    2nd pic much better

    Is that not a filler neck? Not sure I've seen a 60 with a filler neck there, but it does appear to be.

    Big Road Skateboard, Apr 17, 2023
    Big Road Skateboard, Apr 17, 2023
    #6
    Oxbow and Rideandrepair Thank this.
  9. Apr 17, 2023 #7
    MRMTRANS

    MRMTRANS Medium Load Member

    363
    390
    Apr 28, 2015
    0
    Neither have I. I've only seen it coming up between the turbo and alternator.

    MRMTRANS, Apr 17, 2023
    MRMTRANS, Apr 17, 2023
    #7
    Oxbow, Rideandrepair and Big Road Skateboard Thank this.
  10. Apr 17, 2023 #8
    DUNE-T

    DUNE-T Road Train Member

    6,944
    16,849
    May 10, 2015
    Detroit, MI
    0
    The cap is missing. You gotta put your engine oil in that hole. Might wanna watch some YouTube videos about this engine to get familiar with it

    DUNE-T, Apr 17, 2023
    DUNE-T, Apr 17, 2023
    #8
    Rideandrepair Thanks this.
  11. Apr 17, 2023 #9
    Big Road Skateboard

    Big Road Skateboard Road Train Member

    6,183
    33,958
    May 2, 2021
    0
    I remember seeing some early 60's with them on the left. Way back. Never on the right

    Big Road Skateboard, Apr 17, 2023
    Big Road Skateboard, Apr 17, 2023
    #9
    Rideandrepair Thanks this.
  12. Apr 17, 2023 #10
    Rideandrepair

    Rideandrepair Road Train Member

    17,337
    56,251
    Aug 8, 2015
    0
    Got Me. Must be oil filler. Make sure you don’t have one already. Lol.

    Rideandrepair, Apr 17, 2023
    Rideandrepair, Apr 17, 2023
    #10
    nikmirbre Thanks this.
