Double face mirror light

Discussion in 'Peterbilt Forum' started by Jack59, Apr 23, 2021.

  1. Jack59

    Jack59 Bobtail Member

    1
    0
    Apr 23, 2021
    0
    Were is the best place to wire in mirror turn signal light. 2019 389 peterbilt

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Banker

    Banker Road Train Member

    2,589
    5,857
    Aug 19, 2012
    0

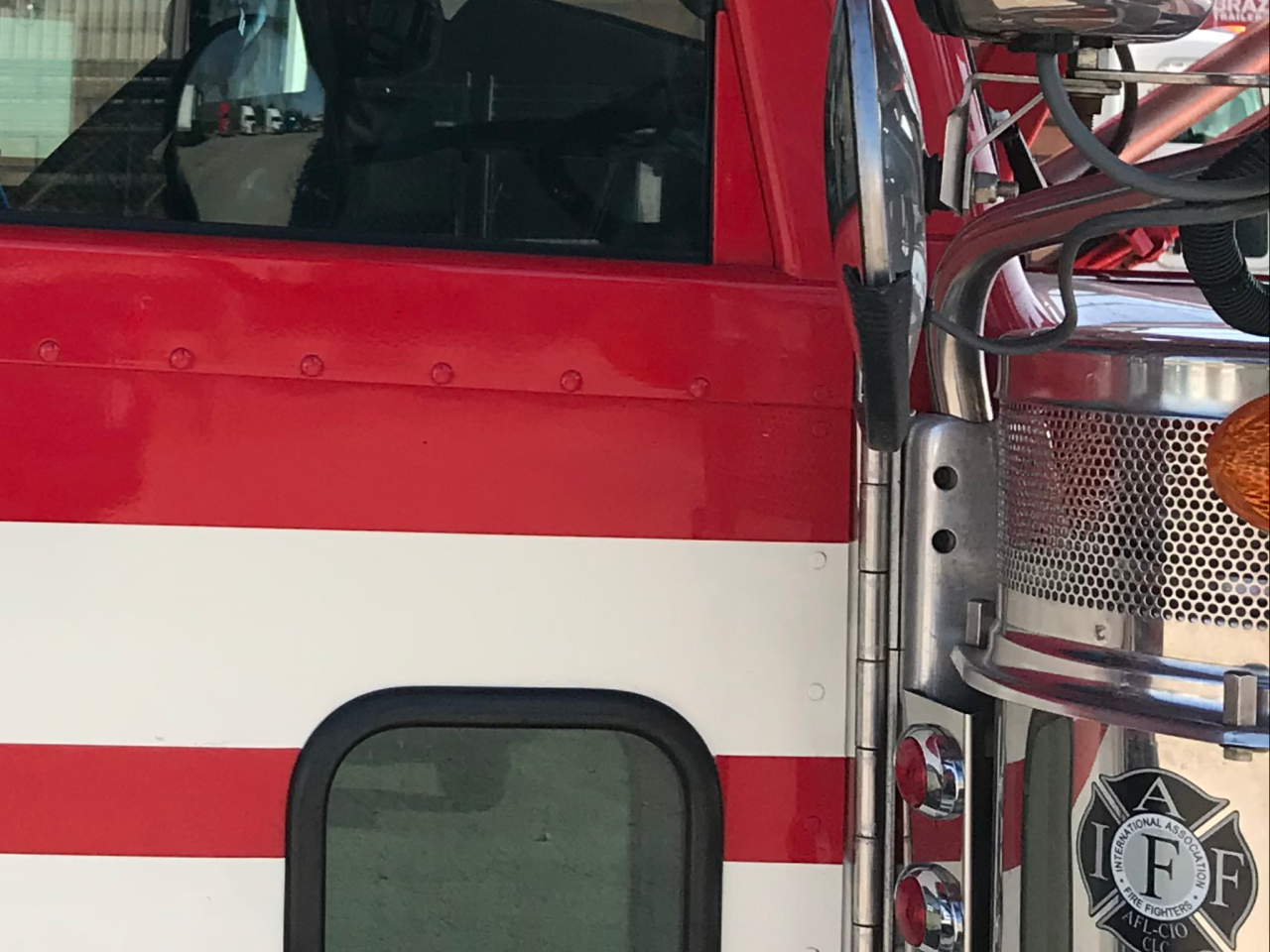

    C373219B-6EDD-4400-9624-B9AFB9BBEAF6.png The mirror channel leads to the back side of the gauge/switch panels. You may or may not find your truck was wired for lights with the wires behind the dash. My truck wasn’t wired, therefore I continued the wires thru the firewall to both headlight connections. If you take the cover off behind the air cleaners it gives easy access to fish the wires to the inside of the cab from the lights. I used a weather sealed plug with a wye off my headlights/marker/turn harness to avoid cutting my harness.

    Last edited: Apr 23, 2021
    Jack59 and Hammer166 Thank this.
