Drive tires inner edge wear

Discussion in 'Ask An Owner Operator' started by ratabekov, Aug 11, 2017.

  1. ratabekov

    ratabekov Bobtail Member

    18
    7
    Sep 1, 2015
    0

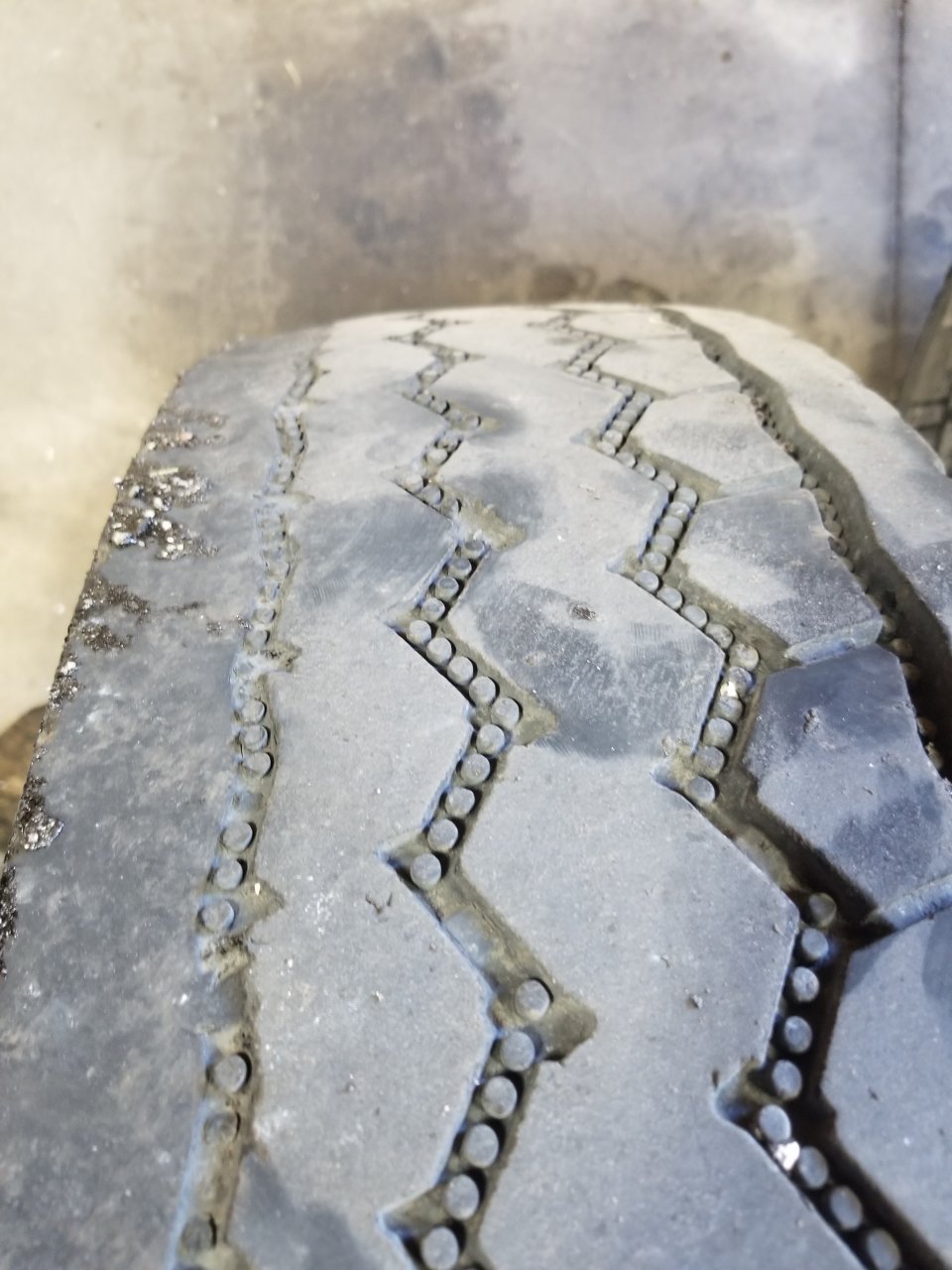

    Need help to figure it out, All 4 inner drive tires recently started showing just the very inside edge wear, other then that all tires look wearing uniformly with about 9/32 left on them.Those are original tires on 2014 volvo vnl with 260k miles. In the last 6 month truck had been 3 axles aligned, all shocks replaced, and a few weeks ago leveling valve replaced did not see any funny wear at that time. Thanks


    Attached Files:

    Lepton1 Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. baha

    baha Road Train Member

    4,137
    2,834
    Jul 25, 2013
    ga
    0
    Looks from pic. that the rear wheel bearings need to be adj. back to to spec.

  4. Brandt

    Brandt Road Train Member

    4,071
    5,360
    Sep 17, 2012
    0
    I was going to guess wheel bearings also.

  5. Brandt

    Brandt Road Train Member

    4,071
    5,360
    Sep 17, 2012
    0
    Check out this video he talks about the very same wear problem you have.


  6. Jace379

    Jace379 Light Load Member

    146
    96
    Mar 6, 2017
    0
    I got it too buddy 20170811_190758.jpg

    luckystar and Lepton1 Thank this.
  7. nax

    nax Road Train Member

    1,999
    2,253
    Dec 14, 2016
    0
    torsion bar bushings?...maybe?

  8. ratabekov

    ratabekov Bobtail Member

    18
    7
    Sep 1, 2015
    0
    Thanks for your inputs, Will start with checking wheel bearings it just seems odd that all 4 wheel bearing went out of specs at the same time. but i guess it is possible that they were not set right from the factory. Have to have it fixed before i invest 4k on a new drives. Will keep you guys updated

    Lepton1 Thanks this.
  9. Jace379

    Jace379 Light Load Member

    146
    96
    Mar 6, 2017
    0
    All my bushing are new polyurethane. Must be a bearing

    Lepton1 Thanks this.
  10. cat13

    cat13 Light Load Member

    191
    60
    Jul 8, 2013
    Central FL
    0
    Mine does this. Currently at the shop getting all new bushings and alignment

  11. nax

    nax Road Train Member

    1,999
    2,253
    Dec 14, 2016
    0
    As I said...my money is on the bushings..

    Your comment above is a strong hint that it's not bearings
