Eaton fuller FRO-18210C 10 speed

Discussion in 'Ask An Owner Operator' started by Wumbo Jumbo, Aug 2, 2021.

  1. Wumbo Jumbo

    Wumbo Jumbo Bobtail Member

    Joined:
    Jan 15, 2016
    Messages:
    34
    Thanks Received:
    8
    0

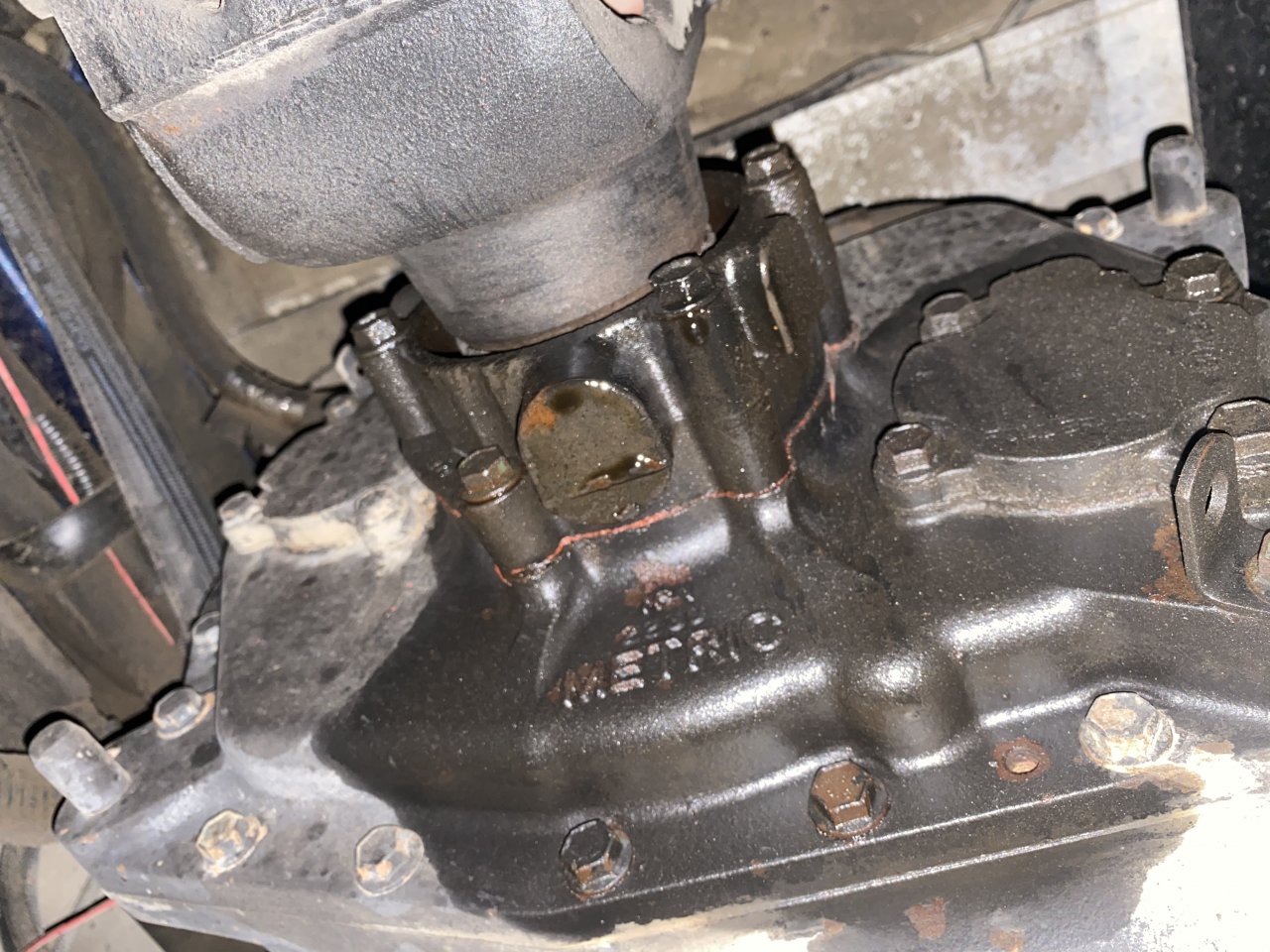

    Finished my load up got back to the yard and parked and noticed she was leaking. Any ideas before I start tearing stuff apart? Also been having issues for the last week with the synchro from high range to low “while moving” the truck will grind if you want to shift down from 6th (high range) to 5th (low range) when approaching a light etc.. so I’ve been avoiding it and just stopping in 6th and restarting from a stand still.

  2. Wumbo Jumbo

    Wumbo Jumbo Bobtail Member

    Joined:
    Jan 15, 2016
    Messages:
    34
    Thanks Received:
    8
    0
  3. Big Road Skateboard

    Big Road Skateboard Road Train Member

    Joined:
    May 2, 2021
    Messages:
    6,157
    Thanks Received:
    33,693
    0
    If you don't know what you're doing, you really need a professional.

    The Fuller FRO's have to be removed to replace the synchronizer due to the range shift actuator being on the top plate.

    Wumbo Jumbo Thanks this.
  4. Wumbo Jumbo

    Wumbo Jumbo Bobtail Member

    Joined:
    Jan 15, 2016
    Messages:
    34
    Thanks Received:
    8
    0
    Yeah I’ve never done any tranny work personally myself on a semi. That gives me motive to just replace it then since they have to remove it anyway to replace a synchro. Thanks for the heads up

  5. Oscar the KW

    Oscar the KW Going Tarpless

    Joined:
    May 19, 2011
    Messages:
    12,246
    Thanks Received:
    28,116
    0
    That looks like it’s just an output shaft seal.

  6. Wumbo Jumbo

    Wumbo Jumbo Bobtail Member

    Joined:
    Jan 15, 2016
    Messages:
    34
    Thanks Received:
    8
    0
    Easy to replace or?

  7. Oscar the KW

    Oscar the KW Going Tarpless

    Joined:
    May 19, 2011
    Messages:
    12,246
    Thanks Received:
    28,116
    0
    I would think so, never done one so I can’t really say.
