Fault Codes??

Discussion in 'International Forum' started by wannabe1693ta, Aug 20, 2012.

  1. wannabe1693ta

    wannabe1693ta Bobtail Member

    2
    0
    Aug 20, 2012
    0
    Would someone be able to help me with some fault codes?
    2006 International 9400i Cummins ISX 10 speed Road Ranger, single screw.
    137:F09 SID004_A
    137:F05 SID006_A
    137:F04 SID251_A
    138:FO4 SID251_A
    139:F04 SID251_A

    No warning lights light up.

    Running down the road the truck will start to miss real bad. Quite a bit of black smoke. This also occurs after running the engine brake for a long time. Usually after stroking the throttle a few times it will clear up. But other times will run 10 to 12 miles before clearing up. I'm a company driver with a company shop that tells me there is nothing wrong....

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Heavyd

    Heavyd Road Train Member

    7,826
    6,276
    Feb 4, 2009
    0
    137, 138 and 139 are all trailer abs faults.

  4. wannabe1693ta

    wannabe1693ta Bobtail Member

    2
    0
    Aug 20, 2012
    0
    Thanks for the reply. I guess the codes don't have anything to do with the engine problem.

  5. D. Rob Trucking

    D. Rob Trucking Bobtail Member

    5
    0
    Feb 9, 2016
    0

  6. D. Rob Trucking

    D. Rob Trucking Bobtail Member

    5
    0
    Feb 9, 2016
    0
    I have a 2004 International 9400i 3 gauges on the left side of dash, (water temp), (oil pressure), (voltage) resets as if I'm starting the truck while driving down the road. I've got 3 fault codes from the dash
    121:F01
    SID 184_A

    121:F08
    SID 184_A

    128:F00
    PID003_A

    Please help if anyone can.

  7. Heavyd

    Heavyd Road Train Member

    7,826
    6,276
    Feb 4, 2009
    0
    Those are not fault codes. They are fault messages. There is not fault code data in those numbers and are basically useless. The 121 and 128 are source addresses. 128 is the engine and 121 I believe is the satellite. The dash display was never meant to be code reader and is not to be used for any diagnostics. It does read "ghost codes" or messages that don't actually exist. Only a proper code reader should be used. Do you have a check engine light on?

    D. Rob Trucking Thanks this.
  8. D. Rob Trucking

    D. Rob Trucking Bobtail Member

    5
    0
    Feb 9, 2016
    0
    No Check Engine light, but the water temp, oil pressure and voltage keep resetting after 3 beeps as if I just turn the key to start the engine. I believe this truck was an lease truck from Penske to Estees. Which it may have had a satellite or qual com..

  9. D. Rob Trucking

    D. Rob Trucking Bobtail Member

    5
    0
    Feb 9, 2016
    0

  10. D. Rob Trucking

    D. Rob Trucking Bobtail Member

    5
    0
    Feb 9, 2016
    0

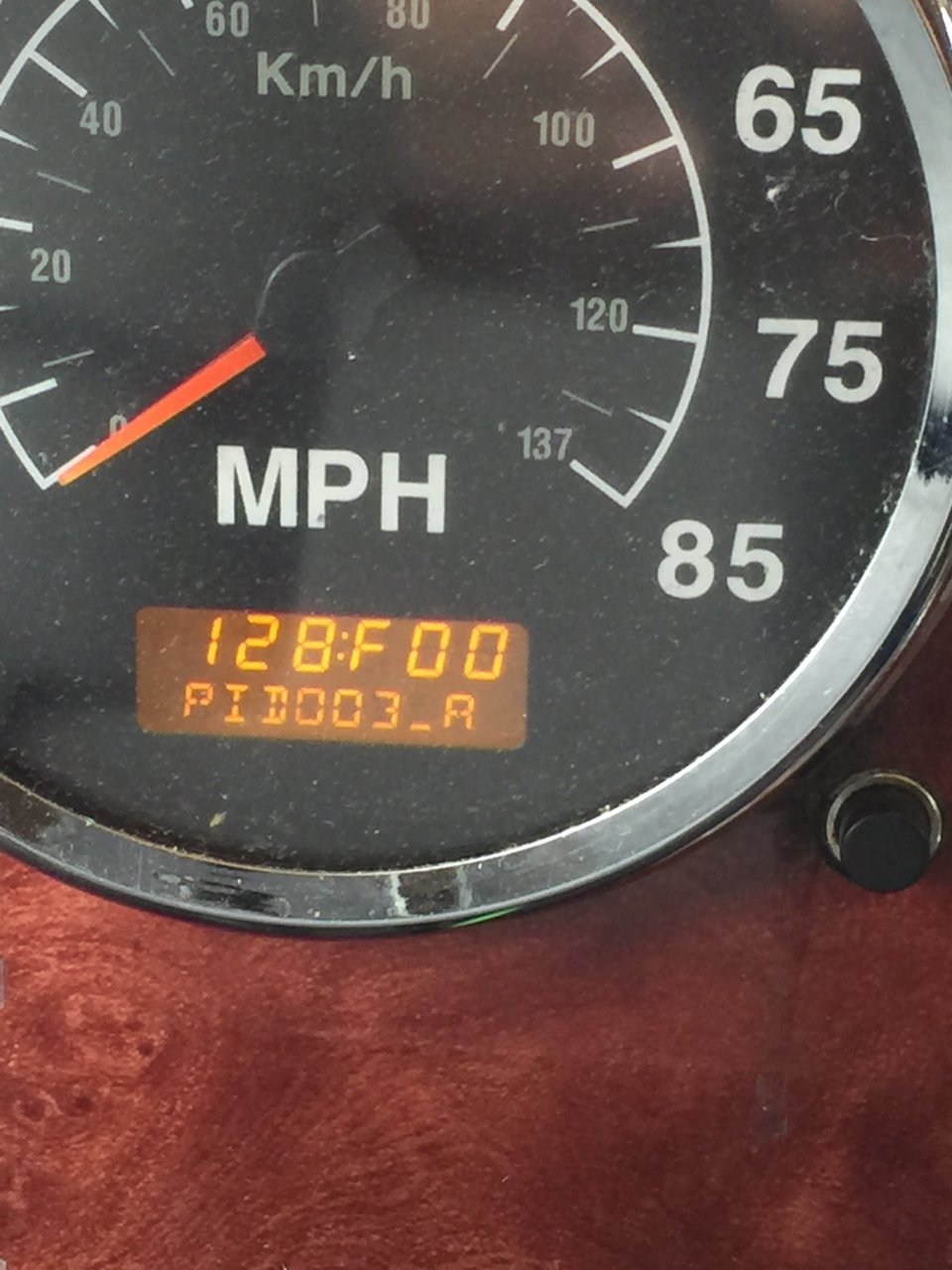

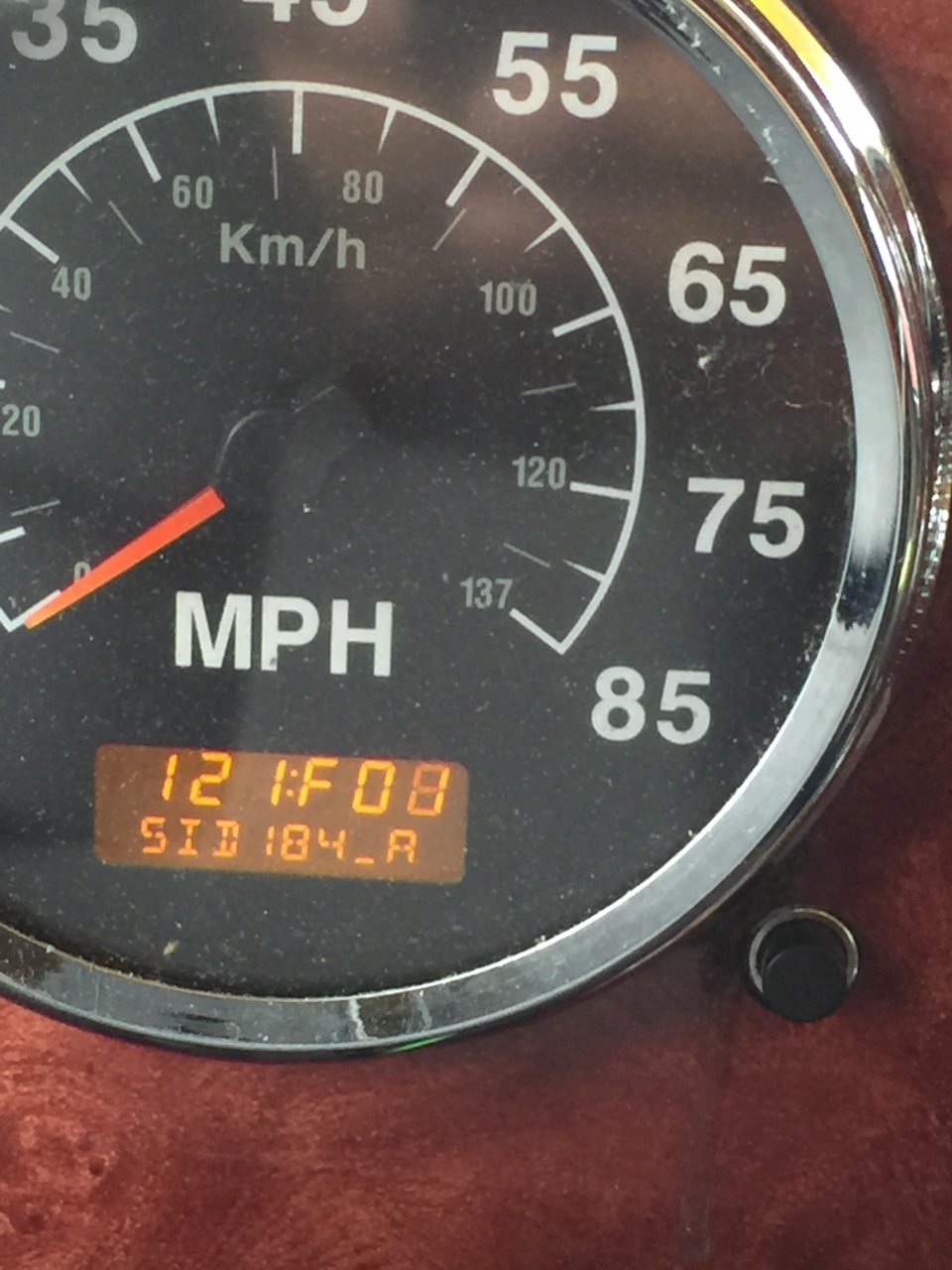

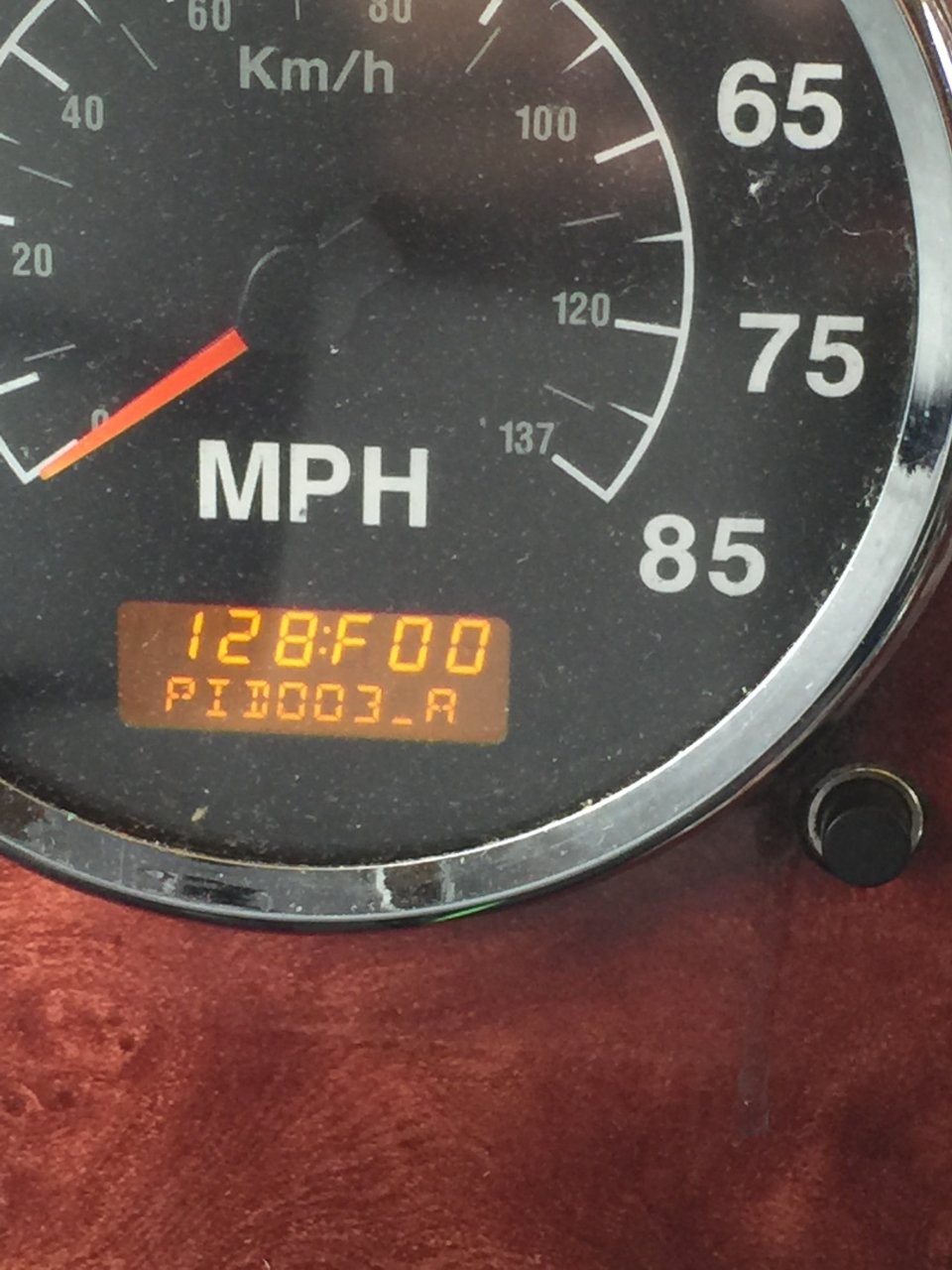

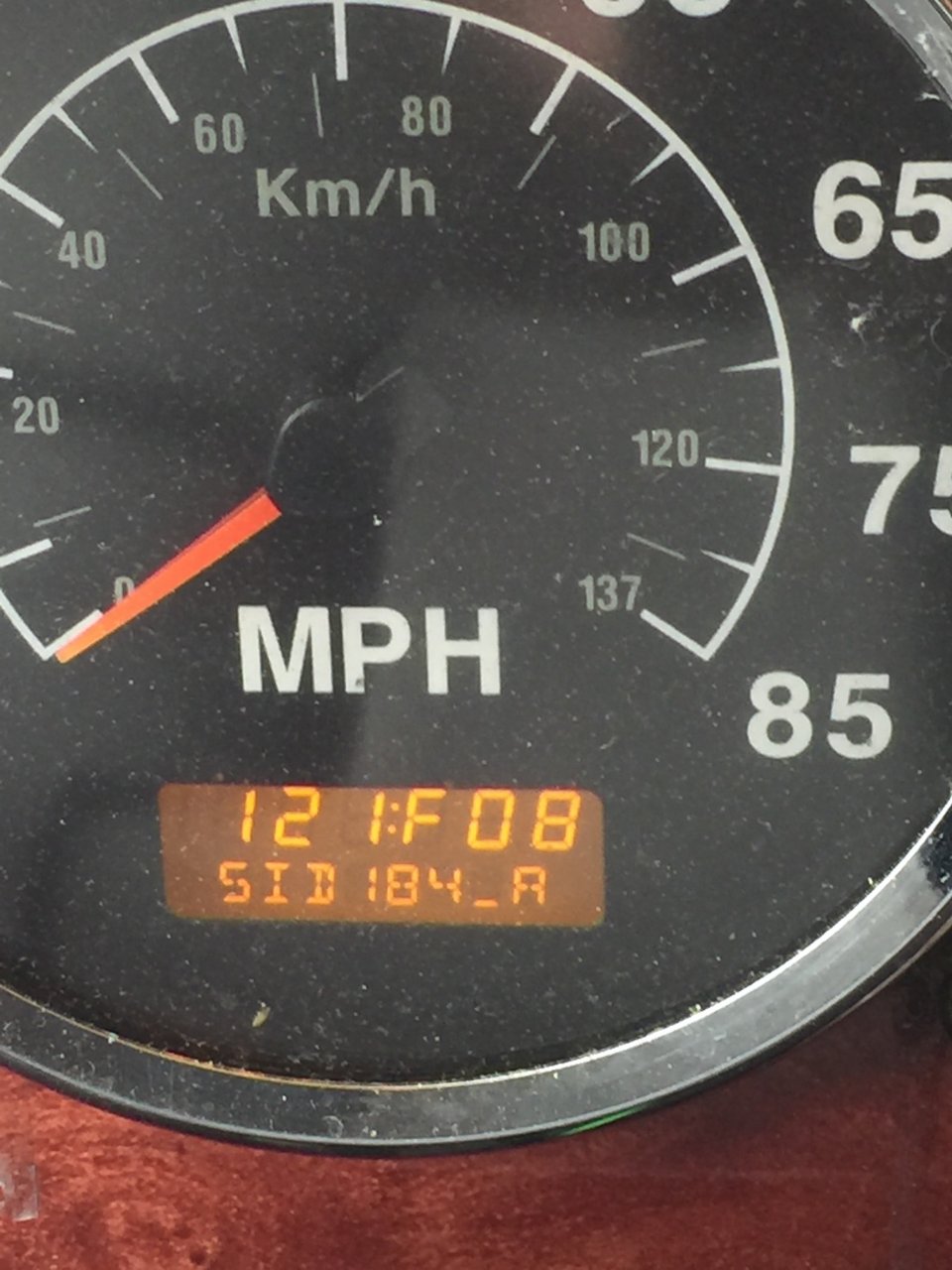

    I've tried to upload a video of my dash, but it's not showing up. image.jpeg image.jpeg image.jpeg image.jpeg

  11. Heavyd

    Heavyd Road Train Member

    7,826
    6,276
    Feb 4, 2009
    0
    I would say something is messing with the datalink between the engine and dash.
