Fifth wheel height

Discussion in 'Ask An Owner Operator' started by Adamali21, Aug 25, 2020.

Page 4 of 13
  1. Aug 28, 2020 #31
    lester

    lester Midwest's #1 Feed Hauler

    2,956
    8,085
    Jan 2, 2012
    NW, Iowa
    0

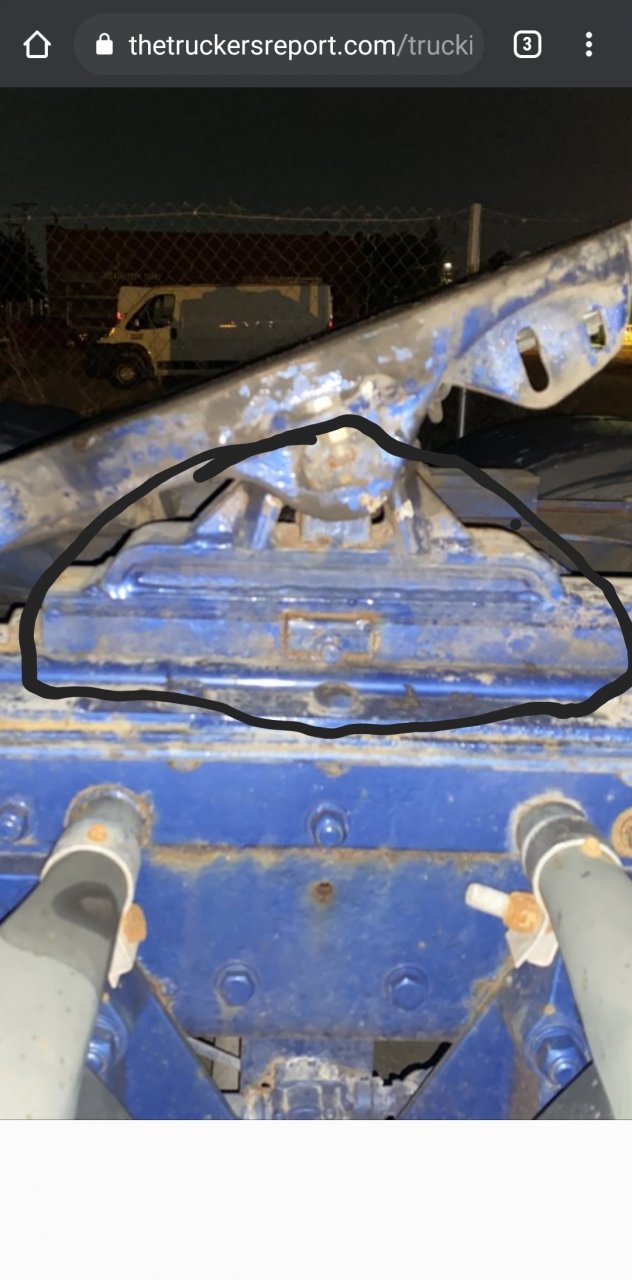

    Screenshot_20200828-023247_Chrome.jpg the circled part is your fifth wheel riser. They come in different heights, yours are rather tall. Get shorter ones

    lester, Aug 28, 2020
    lester, Aug 28, 2020
    #31
    basedinMN_, AModelCat, Brettj3876 and 3 others Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Aug 28, 2020 #32
    Adamali21

    Adamali21 Light Load Member

    278
    180
    Jul 24, 2018
    0
    getting those shorter risers from the manufacturer will cost an arm and leg, what you think about just removing the whole fifth wheel assembly and swapping or buying a used fifth wheel as long as I find one with the correct frame width. I seen used fifth wheels go for cheap

    Adamali21, Aug 28, 2020
    Adamali21, Aug 28, 2020
    #32
  4. Aug 28, 2020 #33
    lester

    lester Midwest's #1 Feed Hauler

    2,956
    8,085
    Jan 2, 2012
    NW, Iowa
    0
    I have no idea what the risers cost but by the time you remove your fifth wheel buy a different one, possibly rebuild it and replace on truck i can't see you being to far ahead. But yeah thats definitely an option. Frame width is pretty standard. Never hurts to remove fifth wheel assembly and paint underneath it if truck has much age or rust

    lester, Aug 28, 2020
    lester, Aug 28, 2020
    #33
    AModelCat Thanks this.
  5. Aug 28, 2020 #34
    Adamali21

    Adamali21 Light Load Member

    278
    180
    Jul 24, 2018
    0
    I recently bought the truck, it’s at the shop getting the frame and axles painted as we speak, and once that’s done I am going to change out that fifth wheel then paint underneath, so hopefully once I get to that point I will update with a picture.

    Adamali21, Aug 28, 2020
    Adamali21, Aug 28, 2020
    #34
    Rideandrepair and lester Thank this.
  7. Aug 28, 2020 #35
    Bean Jr.

    Bean Jr. Road Train Member

    5,573
    9,929
    Mar 30, 2014
    0
    Why? That is probably one of the best fifth wheels on the market. Buy the low profile saddle from a salvage yard.

    Last edited: Aug 28, 2020
    Bean Jr., Aug 28, 2020
    Bean Jr., Aug 28, 2020
    #35
    Johny41 and AModelCat Thank this.
  8. Aug 28, 2020 #36
    abyliks

    abyliks Road Train Member

    4,121
    9,709
    May 2, 2010
    ludlow MA
    0
    those aren’t low pro, they are basically 12r 22.5s

    abyliks, Aug 28, 2020
    abyliks, Aug 28, 2020
    #36
    Rideandrepair Thanks this.
  9. Aug 28, 2020 #37
    Brettj3876

    Brettj3876 Road Train Member

    11,257
    54,060
    Nov 18, 2014
    Land of local
    0
    Looking at that pic you shouldn't have a problem getting it down to 47-47.5 5th wheel height.

    Any truck bone yards around you?

    Brettj3876, Aug 28, 2020
    Brettj3876, Aug 28, 2020
    #37
    Bean Jr. and Rideandrepair Thank this.
  10. Aug 28, 2020 #38
    Rideandrepair

    Rideandrepair Road Train Member

    17,561
    56,895
    Aug 8, 2015
    0
    From what I found 295/75/24.5 Lo pro are 41.9” , and 315/80/22.5s are 42.3”. So less than 1/2” difference. I’ve always been around 47”-47.5” max, running 24.5 lo pros. He may not need to change tires.

    Rideandrepair, Aug 28, 2020
    Rideandrepair, Aug 28, 2020
    #38
    Adamali21 Thanks this.
  11. Aug 28, 2020 #39
    Adamali21

    Adamali21 Light Load Member

    278
    180
    Jul 24, 2018
    0
    am from Michigan so there’s plenty of truck salvage yards near me.

    Adamali21, Aug 28, 2020
    Adamali21, Aug 28, 2020
    #39
    wore out Thanks this.
  12. Aug 28, 2020 #40
    Rideandrepair

    Rideandrepair Road Train Member

    17,561
    56,895
    Aug 8, 2015
    0
    Call Valley Truck Parts, they’re less than $400 for both risers

    Rideandrepair, Aug 28, 2020
    Rideandrepair, Aug 28, 2020
    #40
    Bean Jr. and Adamali21 Thank this.
