FIFTH WHEEL ISSUE

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by lane778, Dec 3, 2024.

  1. lane778

    lane778 Bobtail Member

    5
    2
    Apr 3, 2019
    0
    So today I dropped off a trailer no issues went to pickup a different one and it wouldn't lock on. Slammed into it couple of times still would not lock, manually lifted the handle and beat on it with a hammer it locked manually but I didn't feel like risking lives so I dropped it and went home.

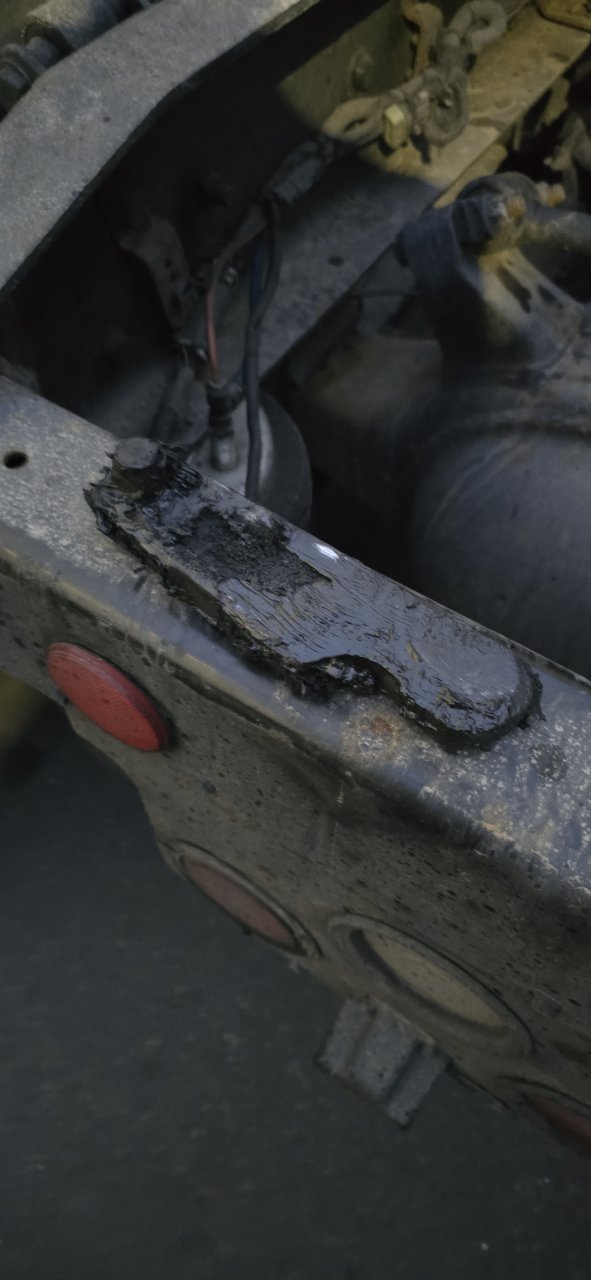

    When I got back to the yard I discovered two things, a broken spring a big metal piece was barely hanging on under the fifth wheel on the driver side.

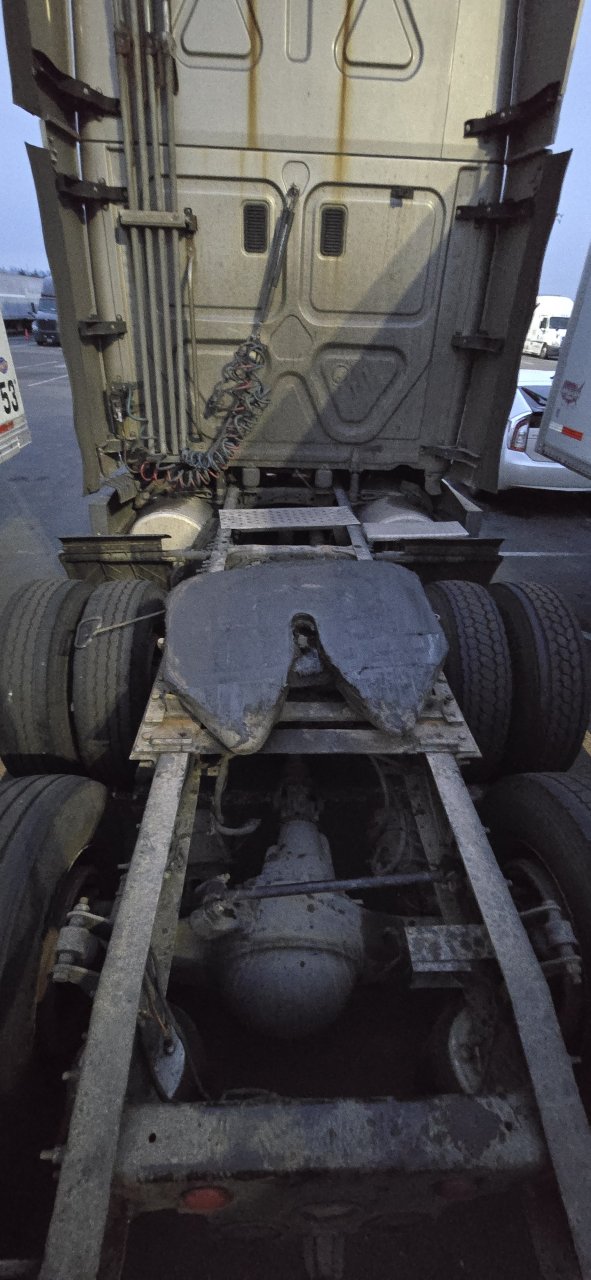

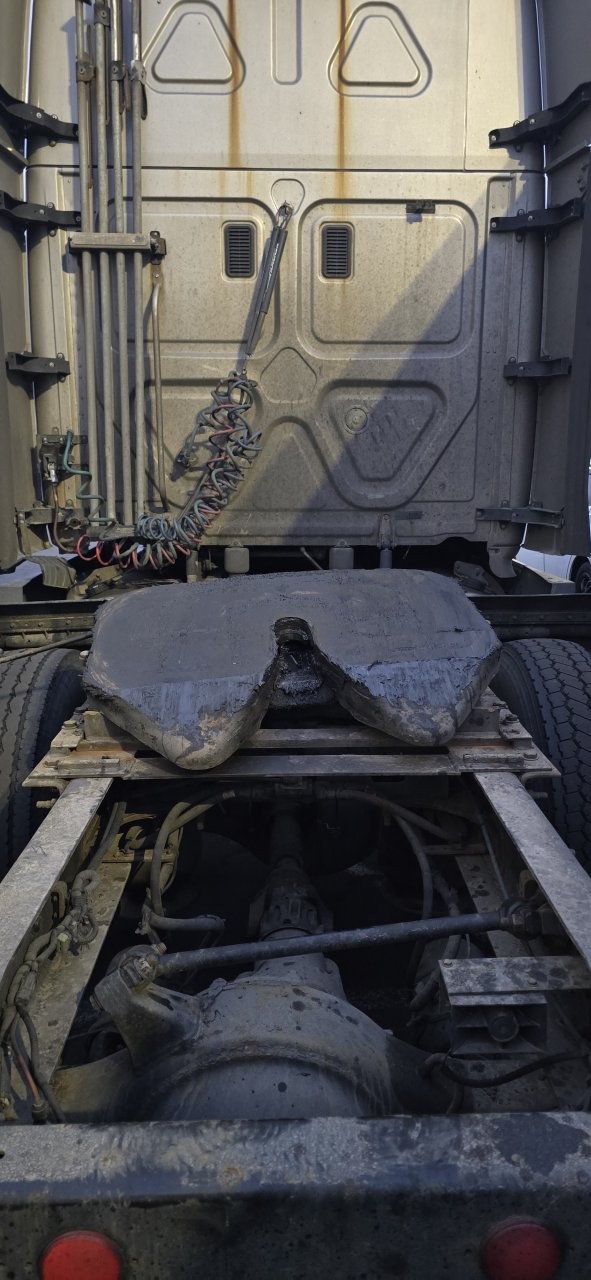

    Also it appears to be crooked and/ or lopsided but when underneath a trailer it is level and straight?

    Hoping for some feedback on what to do on whether I should replace or repair thank you all in advance.

    The truck is a 2016 Freightliner Cascadia 20241202_164204.jpg 20241202_163908.jpg 20241202_163901.jpg

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Eddiec

    Eddiec Road Train Member

    2,136
    3,211
    Feb 2, 2015
    0
    I would replace it. Eliminate the risk.

  4. bad-luck

    bad-luck Road Train Member

    3,202
    5,833
    Nov 16, 2013
    Baltimore, Maryland
    0
    I have rebuilt several in the past, but when it gets as bad as yours it's time to replace it. Get a jost, they are ok and the lest expensive.

  5. Big Road Skateboard

    Big Road Skateboard Road Train Member

    5,310
    26,400
    May 2, 2021
    0
    Holy crap! Looks like you have a broke or missing pin on the left side

    Last edited: Dec 3, 2024
  6. hope not dumb twucker

    hope not dumb twucker Road Train Member

    4,352
    38,183
    Aug 23, 2022
    0
    Lack of maintenance? Or inspections?

    062 Thanks this.
  7. 062

    062 Road Train Member

    6,089
    32,892
    Oct 20, 2013
    0
    Yes

    hope not dumb twucker Thanks this.
  8. SmallPackage

    SmallPackage Road Train Member

    5,139
    15,744
    Dec 20, 2019
    Marion Texas
    0
    Rocker Pin is broke. Do not use. Typical Jost failure from slamming into king pins to lock them useless things.

    Big Road Skateboard Thanks this.
  9. hope not dumb twucker

    hope not dumb twucker Road Train Member

    4,352
    38,183
    Aug 23, 2022
    0
    How does that happen normally?

    SmallPackage Thanks this.
  10. SmallPackage

    SmallPackage Road Train Member

    5,139
    15,744
    Dec 20, 2019
    Marion Texas
    0
    It shouldn’t but it happens with jost a lot. Cheap made fleet spec wheels with a short life expectancy. Drop and hook stress of lifting a trailer 3 to 4 inches off the ground and slamming into the kingpins take there toll. Used to be those pins had grease zerks on them. Last forever. They were 1-1/8 dia. hard steel.

  11. lane778

    lane778 Bobtail Member

    5
    2
    Apr 3, 2019
    0
    Big Road Skateboard and Oxbow Thank this.
