Fifth wheel question

Discussion in 'Questions From New Drivers' started by Penumbra, Oct 22, 2019.

  1. Penumbra

    Penumbra Light Load Member

    209
    363
    Jul 29, 2019
    0
    Ok guys. First day alone is over. I was 1 minute from violating my HOS (I’m blaming Pam this time!)

    now, question time!

    when I took this truck over, I noticed the fifth wheel is as far back as in can fo (as in its as far away from the cab as it can be, lots of space)

    It feels like my trailers are off tracking a lot more and a taking a lot longer to come back into alignment than I’m used to.

    Am I just being crazy? Could something be making it take longer?

  2. Tb0n3

    Tb0n3 Road Train Member

    2,703
    4,044
    Oct 5, 2012
    Earth
    0
    That would be affected by the trailer axles, not the fifth wheel. The fifth wheel is mostly for weight distribution with a very small effect on turning and backing but none on trailer tracking.

    Bean Jr. and FlaSwampRat Thank this.
  3. ArcticWolves

    ArcticWolves Light Load Member

    96
    54
    Sep 6, 2014
    USA
    0
    If it's further back then you are seeing the result correctly albeit very minimal. The further back away the rear axles of the trailer are the greater distance between the drive tires and the rear axles. To compensate for this delay when your 5th wheel is all the way back then slide your rear tandems closer towards your tractor. However, if you do this then that may mess up your maximum weights on your axles. You need to understand how sliding the pins in each hole effects the weights on your axles. You can play with your weight simply by sliding the 5th wheel forward or backwards and also your rear axles forward and backwards. Try to find yourself a cheat sheet on google that explains how much weight is transferred or lost on each axle when sliding the 5th wheel or rear axles. This is stuff they do not teach you in trucking school unfortunately or if they do it's very brief.

    So to sum it up you are not crazy. Your rear axles are further away then what you are used to practicing with because my guess is they are all the way back.

    First thing you need to do is get to a CAT scale pronto and make sure you are not overweight on any of your axles and if you are then adjust your axle weight accordingly by either sliding your 5th wheel closer to the cab or sliding your rear axles of the trailer closer towards the kingpin if they are all the way back. Know each states requirements (bridge laws) as California Highway Patrol loves these violations. :p

    Last edited: Oct 22, 2019
    FlaSwampRat Thanks this.
  4. Penumbra

    Penumbra Light Load Member

    209
    363
    Jul 29, 2019
    0

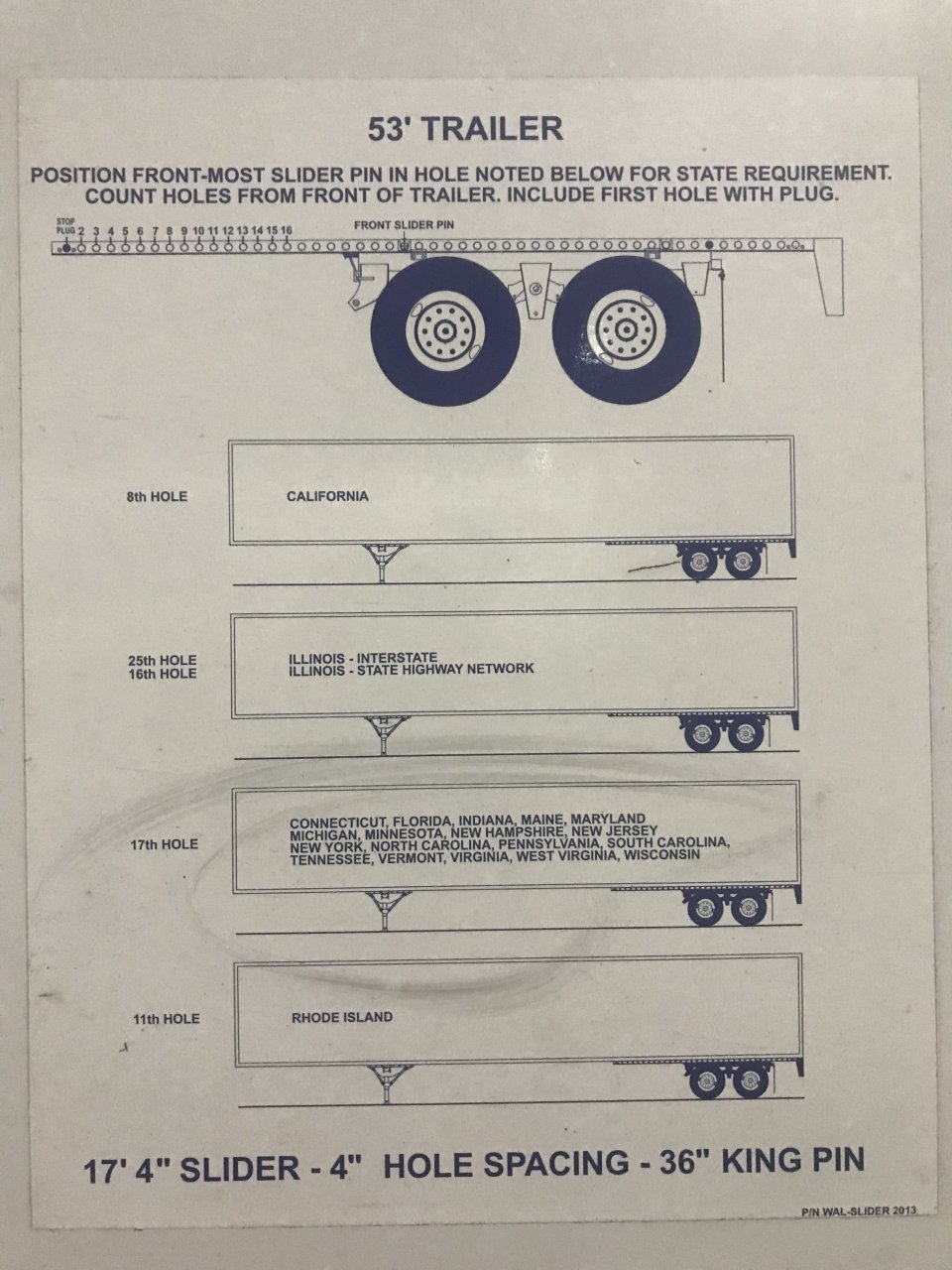

    thanks for the tips. I’m DH right now, so no worries there. I’m at the country pride right now but I believe my tandems are in the 6th hole

  5. ArcticWolves

    ArcticWolves Light Load Member

    96
    54
    Sep 6, 2014
    USA
    0
    Each one of those holes transfers weight. Once you understand how that weight works with each hole you will have a better understanding of what to do when you are overweight on any axle.

  6. Slapout okie

    Slapout okie Bobtail Member

    5
    3
    Oct 8, 2019
    0
    One thing to do is on your scale ticket weight 5th and what hole you are in and trlr and what hole. That way you can move them all around and if you need to just put the 5th whl and tele bac in the same as scale ticket says and you know where you are

  7. truckdriver31

    truckdriver31 Road Train Member

    3,778
    3,693
    Sep 18, 2013
    0
    first question is. does it have good grease on it

    tinytim, starmac and "semi" retired Thank this.
  8. truckdriver31

    truckdriver31 Road Train Member

    3,778
    3,693
    Sep 18, 2013
    0
    them cat scales could be wrong tho. cat doesnt stand by the axle weight

  9. Tx Countryboy

    Tx Countryboy Road Train Member

    1,428
    2,758
    Sep 18, 2019
    0
    They stand by it. You need to read up on it apparently

    Rideandrepair Thanks this.
