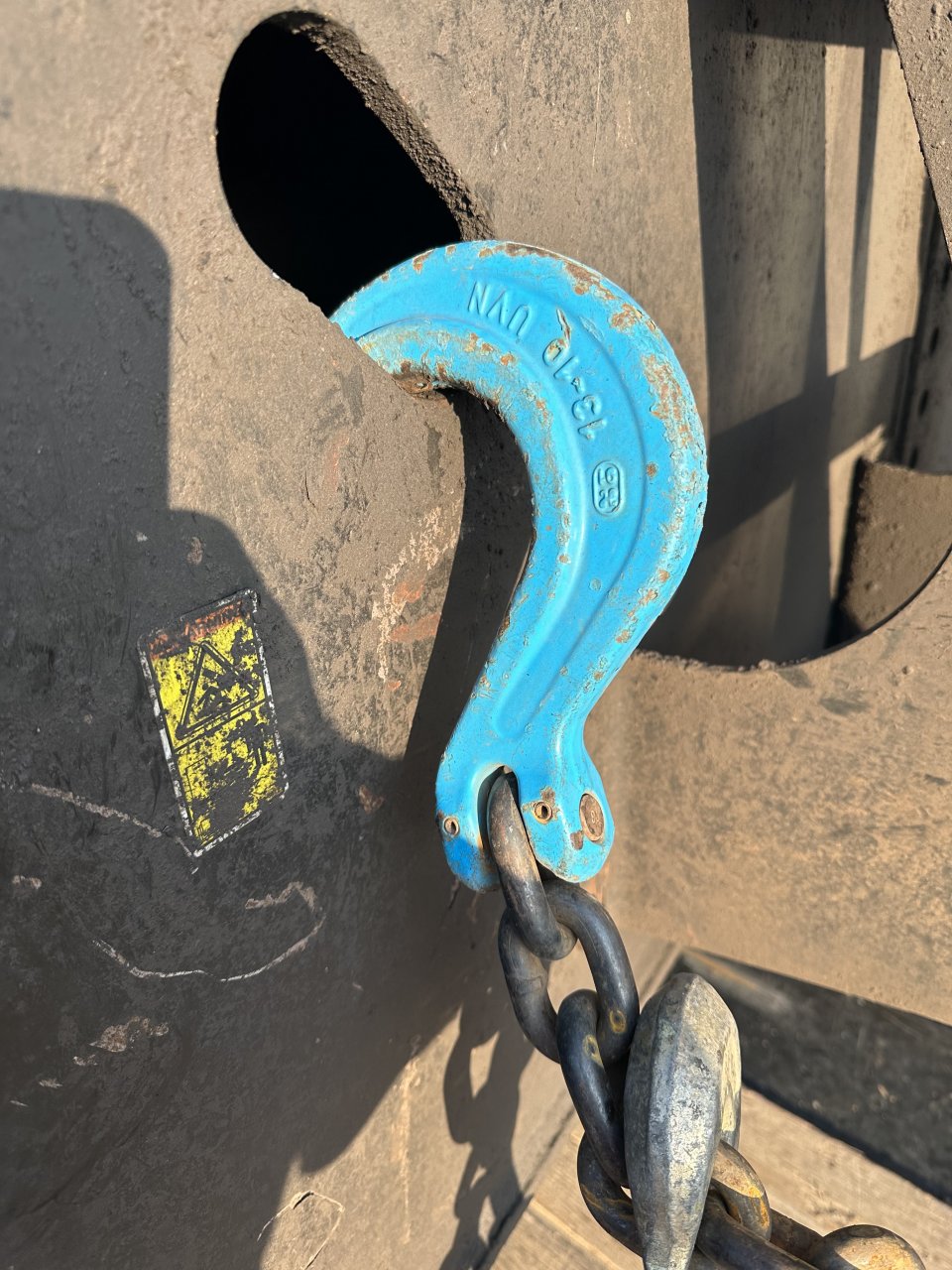

To answer the OP question regarding foundry hooks here’s what I did.
I bought grade 100 foundry hooks and took them to Ashely Sling in Charlotte NC and had them put them on 5’ lengths of grade 100 1/2 chain.
I also had them make me the same with grab hooks.
I have 6 of each and an assortment of long 1/2 & 3/8
Find somewhere near you that builds rigging for overhead lifting and they can get you right. Yes it will be expensive but definitely worth it.
Here is where I bought my foundry hooks and several other chains etc.
TulsaChain.com
Foundry hooks/J-Hooks
Discussion in 'Heavy Haul Trucking Forum' started by Knecht_Transport, Aug 7, 2023.
Page 2 of 4
-
-
Trucking Jobs in 30 seconds
Every month 400 people find a job with the help of TruckersReport.
-
cke, FerrissWheel, singlescrewshaker and 1 other person Thank this.
-
I'm not arguing as I have grade 100 chains. But if a Grade 80 grab hook matches the WLL of a Grade 100 chain, why do you need grade 100 grab hooks? I suspect foundry hooks need to be grade 100 to match the 15,000 lb. WLL of grade 100 1/2" chain.
Jubal Early Times, cke, FerrissWheel and 2 others Thank this. -
cke, FerrissWheel, singlescrewshaker and 1 other person Thank this.
-
How hard is it to attach the foundry hook to the chain…?
cke, FerrissWheel, singlescrewshaker and 1 other person Thank this. -
Jubal Early Times, cke, FerrissWheel and 3 others Thank this.
-
I’m a securement big spender…..
I bought 5-6 etrack D rings and 4-1 inch ratchet straps for the bike trailer….JolliRoger, cke, FerrissWheel and 3 others Thank this. -
cke, FerrissWheel, singlescrewshaker and 1 other person Thank this.
-
But the other way we have done it is get a hook with an eye and use heavy duty twin link to attach to binder.Phoenix Heavy Haul, cke and Oxbow Thank this. -

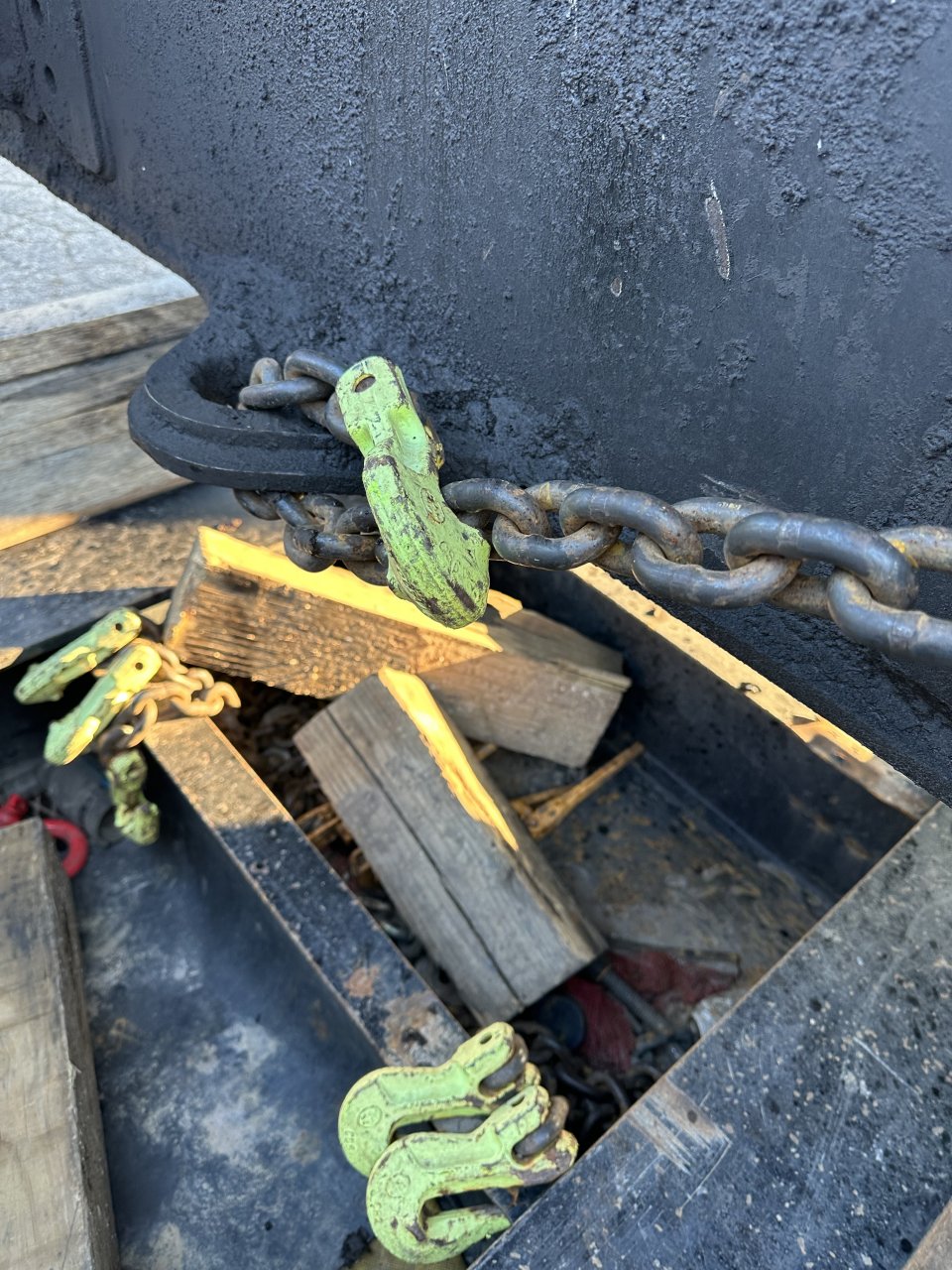

I use foundry hooks on a couple 4’ tail chains. Grade 80 on grade 70 chain. Had no issues. They are a little speedy but very handy. I also have 4 binders with slip hooks on one end. Also spendy and handy.
As far as a cheap alternative, I haven’t found one. And as far as grade 80/100 chain. It’s useless unless you are using grade 80/100 binders. My foundry hooks I got on a deal because some guy ordered them and didn’t realize how big they were.
So the rigging store gave me a discount to take them.cke, IH Truck Guy, FerrissWheel and 1 other person Thank this.
