Freightliner cascadia automatic, clutch installed backwards?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Rae47, Oct 27, 2021.

  1. Rae47

    Rae47 Bobtail Member

    5
    0
    Oct 27, 2021
    0
    My mechanic state the clutch was installed backwards on 2013 Freightliner cascadia automatic transmission… the truck drives but started not going into gear with code flashing F… please advise

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. little cat 500

    little cat 500 Road Train Member

    1,676
    752
    Jan 17, 2010
    Abbottstown PA
    0
    Not sure thats even possible

    ibcalm19 and Kyle G. Thank this.
  4. Arctic_fox

    Arctic_fox Heavy Load Member

    853
    2,330
    Sep 16, 2016
    0
    Never underestimate the stupidity that can be achieved by human error, achohol and strong drugs.

    mjd4277 and little cat 500 Thank this.
  5. Goodysnap

    Goodysnap Road Train Member

    2,616
    5,968
    Jul 12, 2017
    0
    What trans model are we working on?

    Fault code logged?

    How far was the unit driven before the failure occurred?

  6. Rae47

    Rae47 Bobtail Member

    5
    0
    Oct 27, 2021
    0
    Eaton Fuller
    flash code 35

  7. Goodysnap

    Goodysnap Road Train Member

    2,616
    5,968
    Jul 12, 2017
    0
    Eaton is the Manufacturer not the trans Model.

    Troubleshooting and service information is available online and free @ EATON ROADRANGER

    FC 35 is for J1939 datalink wiring issue and has nothing to do with the clutch. You are likely looking at a issue on the F/L side of the trans wiring.

    Near impossible to install an Eaton automated clutch disc backward. It would not release or even move when you got it back together. The inner disc doesn't even separate from the pressure plate.

    Oxbow Thanks this.
  8. Rae47

    Rae47 Bobtail Member

    5
    0
    Oct 27, 2021
    0
    Flash code 27 also

  9. Goodysnap

    Goodysnap Road Train Member

    2,616
    5,968
    Jul 12, 2017
    0
    27 is Clutch failed to disengage- mechanical system not responding.

    Oxbow Thanks this.
  10. Rae47

    Rae47 Bobtail Member

    5
    0
    Oct 27, 2021
    0

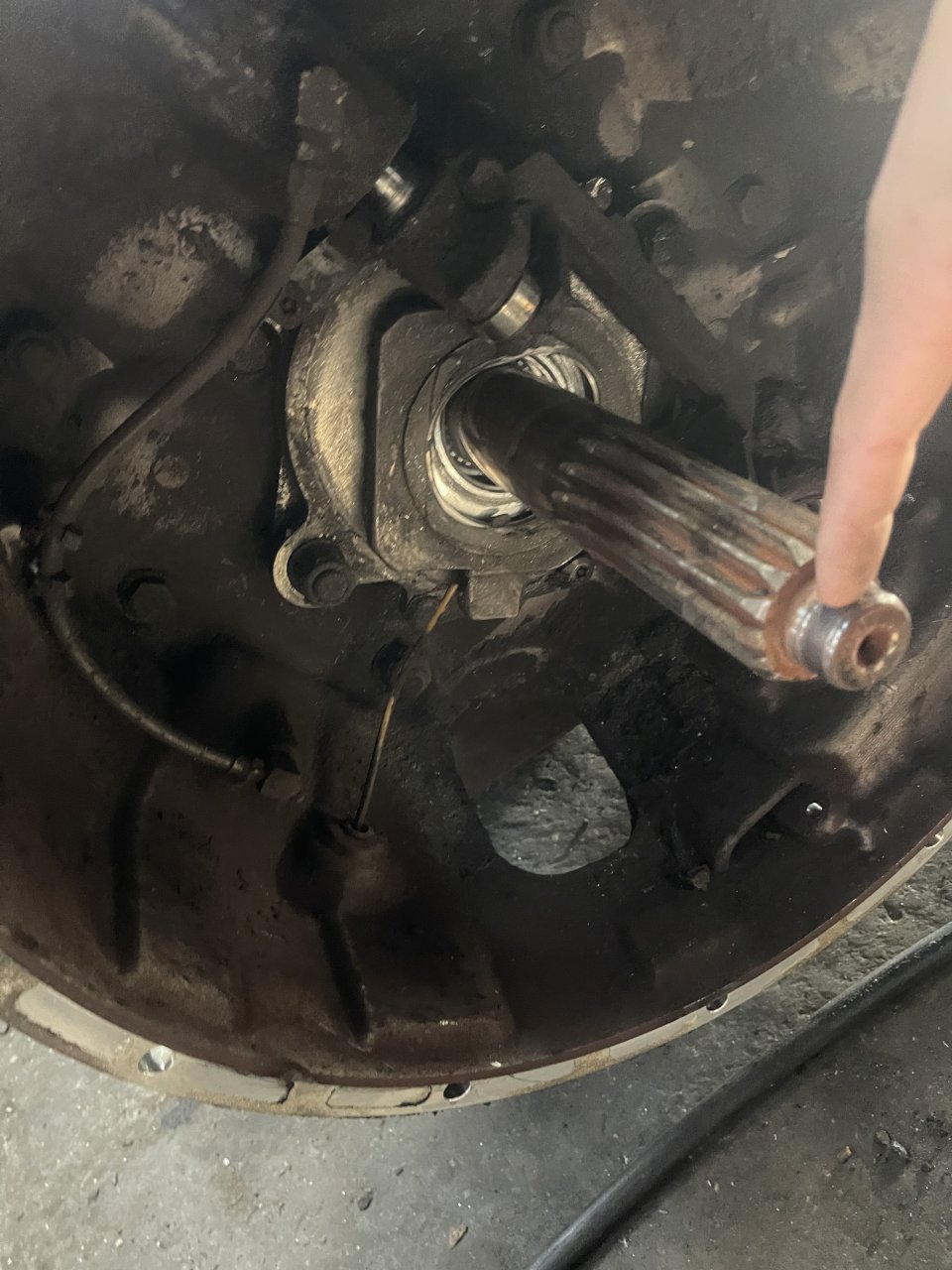

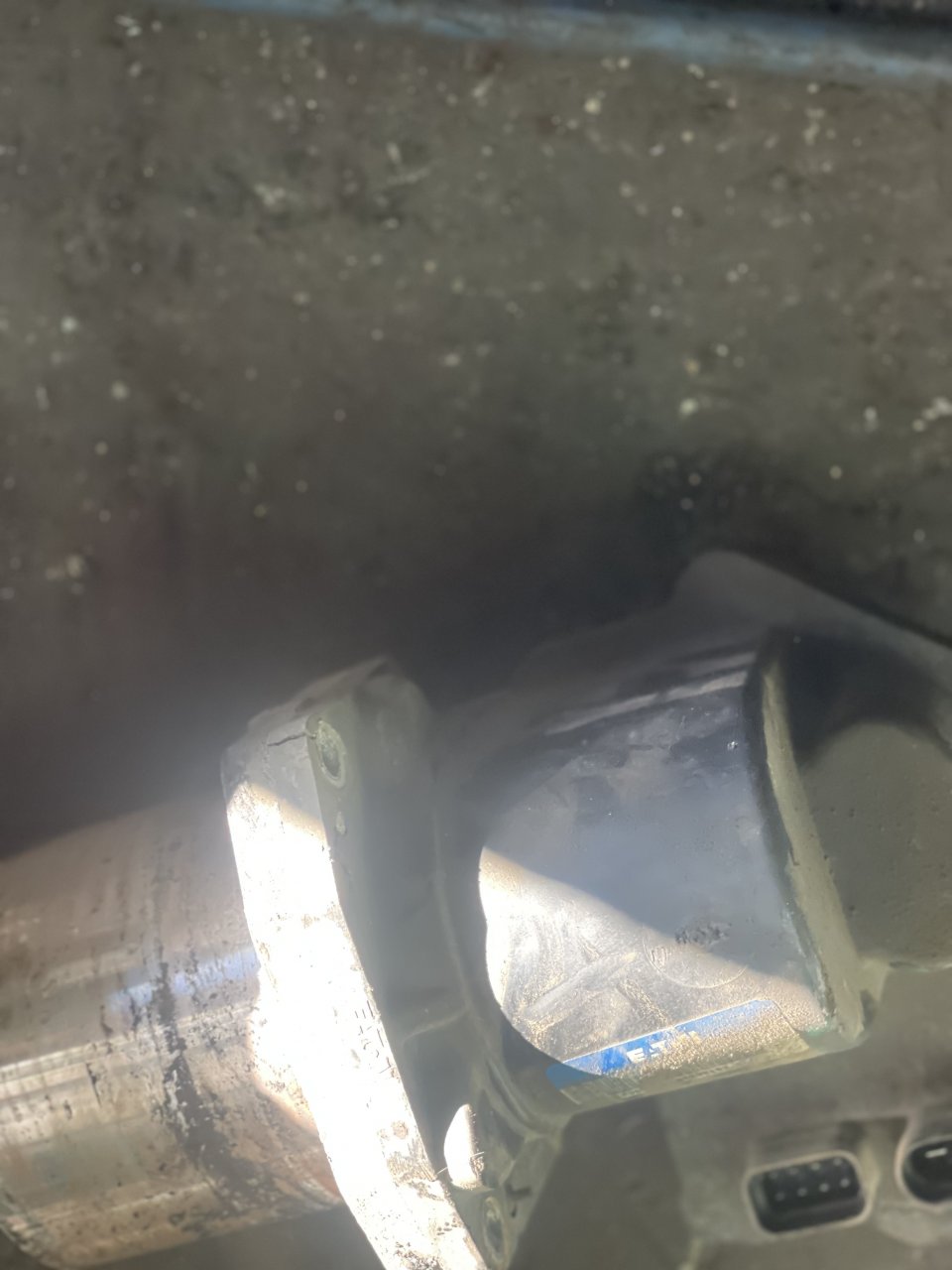

    Pic attached


    Attached Files:

  11. Goodysnap

    Goodysnap Road Train Member

    2,616
    5,968
    Jul 12, 2017
    0
    Is that the old clutch? Throwout bearing is broken in two? Did the worn input shaft get replaced? FC 27 has reoccured with the new clutch?

    Oxbow Thanks this.
