Freightliner Century Upgrade Front Control Unit

Discussion in 'Freightliner Forum' started by Smellfunny, Sep 1, 2023.

  1. Smellfunny

    Smellfunny Road Train Member

    1,314
    828
    Jan 28, 2012
    South Carolina
    0

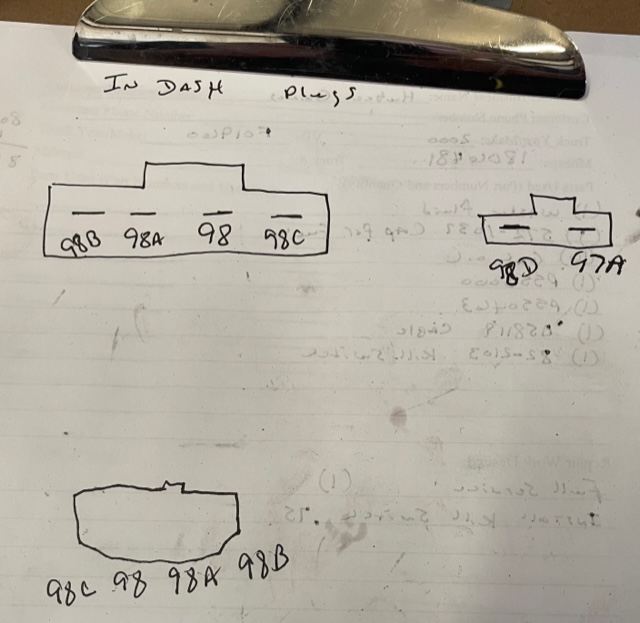

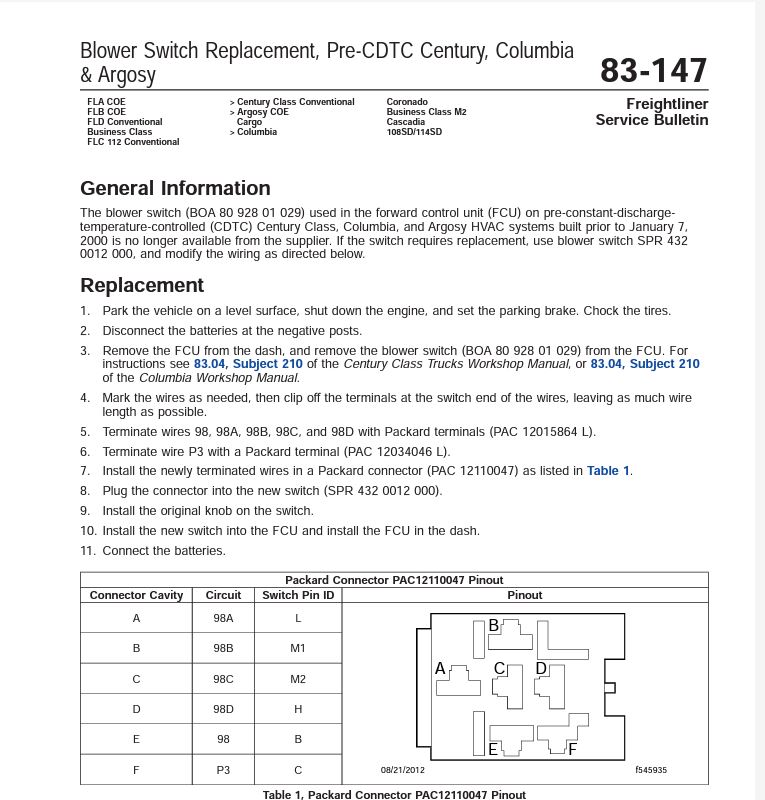

    Installing the replacement upgrade unit on a 2000 Century. The instructions say wire P3 goes to F on connector. I don't see a wire P3. There is one wire that had 97A on it that connected to the switch right above the yellow air line on the old unit. Not sure if that is correct or not.


    Attached Files:

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Smellfunny

    Smellfunny Road Train Member

    1,314
    828
    Jan 28, 2012
    South Carolina
    0
    No replies to my post so I figured it out and made a video. Maybe it will help someone in the future.

    QUALITYTRUCK and 062 Thank this.
