Fuse/relay panel location 98 kw w900l

Discussion in 'Kenworth Forum' started by irishluck09, May 14, 2022.

Page 2 of 2
  1. May 16, 2022 #11
    spsauerland

    spsauerland Road Train Member

    4,296
    10,879
    May 31, 2010
    West Harrison, In
    0

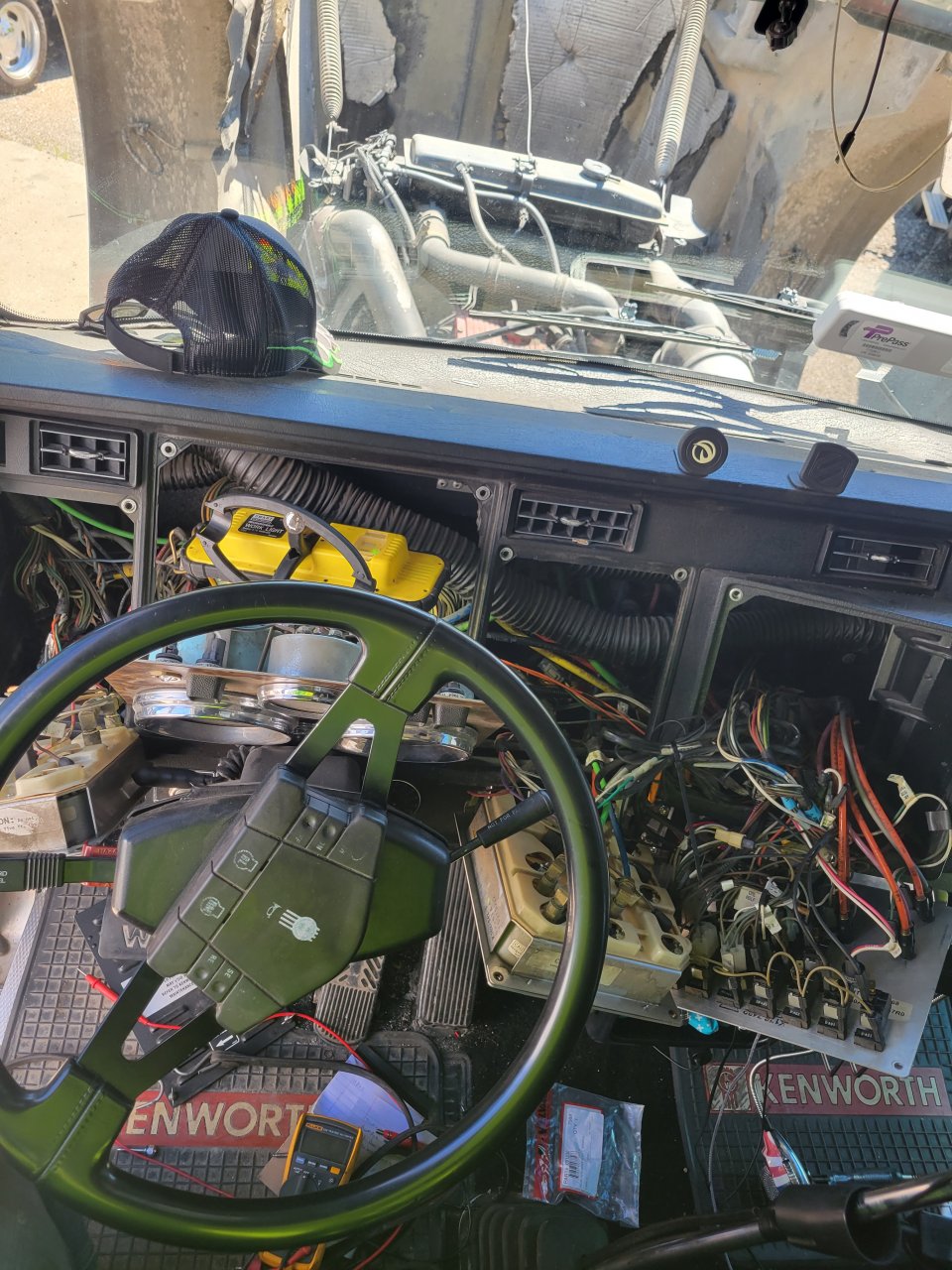

    I found it, you owe me! Close to connectors for Jake and cruise switch plugs.


    Attached Files:

    spsauerland, May 16, 2022
    spsauerland, May 16, 2022
    #11
    Oxbow Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. May 16, 2022 #12
    irishluck09

    irishluck09 Light Load Member

    242
    123
    Nov 24, 2019
    0
    Problem is we just can't put eyes or find this relay. I've got all 4 panels pulled off. Found 1 relay and it isn't the FSN clutch relay. Still looking though. This is becoming a headache...


    irishluck09, May 16, 2022
    irishluck09, May 16, 2022
    #12
  4. May 16, 2022 #13
    irishluck09

    irishluck09 Light Load Member

    242
    123
    Nov 24, 2019
    0
    You sir are awesome for that. Looks like we're just gona wire in a new relay because we still can't locate it and we can't even get into the ecm.

    irishluck09, May 16, 2022
    irishluck09, May 16, 2022
    #13
    Oxbow Thanks this.
  5. May 17, 2022 #14
    irishluck09

    irishluck09 Light Load Member

    242
    123
    Nov 24, 2019
    0
    Well we determined that the problem was the relay causing the fan issue. But we were still unable to locate the relay itself. Unfortunately we just had to wire in a new one. But it works now. Comes on with the switch and hopefully when it hits 205*.

    irishluck09, May 17, 2022
    irishluck09, May 17, 2022
    #14
    spsauerland and ProfessionalNoticer Thank this.
  7. Sep 28, 2022 #15
    FYI

    FYI Bobtail Member

    8
    3
    Aug 26, 2019
    0
    I found the fan clutch relay in the dash at the far right panel. It was lying in the bottom just above park brake knobs. I couldn't see it but felt it and pulled to replace.

    FYI, Sep 28, 2022
    FYI, Sep 28, 2022
    #15
    irishluck09 Thanks this.
  8. Oct 5, 2022 #16
    irishluck09

    irishluck09 Light Load Member

    242
    123
    Nov 24, 2019
    0
    Really...hmm. I might open my panel back up then and see if mine is down there!



    irishluck09, Oct 5, 2022
    irishluck09, Oct 5, 2022
    #16
    ProfessionalNoticer Thanks this.
  9. Oct 5, 2022 #17
    ProfessionalNoticer

    ProfessionalNoticer Road Train Member

    2,941
    7,844
    Apr 25, 2021
    0
    Funny seeing this thread pop back up because I just discovered this fan relay buried deep inside my dash above the parking valves while I was chasing another unrelated electrica issue. It's labeled as a fan relay too. What a strange place for a relay?! Mid 90's W9 with a CAT.

    ProfessionalNoticer, Oct 5, 2022
    ProfessionalNoticer, Oct 5, 2022
    #17
  10. Oct 5, 2022 #18
    irishluck09

    irishluck09 Light Load Member

    242
    123
    Nov 24, 2019
    0
    Hell yeah, I'm definitely gona look now. I spent weeks looking for thar lol we just finally cut into the main harness and added our own relay

    irishluck09, Oct 5, 2022
    irishluck09, Oct 5, 2022
    #18
    ProfessionalNoticer Thanks this.
