    15 speed grinding between lo range to hi range. Everything I have found points to the synchros going bad,
    This grinding just started yesterday. How long will my tranny last, I would like to drive home and have shop there do the work. 1500 miles.
    I have loads booked from where I am, Denver to home.
    I know its a gamble. Just wondering how much of a gamble. I don't want to get under a load and not be able to deliver.
    Better to run empty. OR Get fixed here in Denver. IF the synchro go completely will I still be able to drive in low range.
    I know the best answer is get it fixed now.
    Thanks

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Fajo

    Fajo The Dark Knight

    2,214
    2,352
    Jan 26, 2013
    Boise, ID
    0
    If its only grinding using the split just dont use the split until you get home.

  4. xsetra

    xsetra Road Train Member

    4,923
    6,578
    Aug 21, 2011
    0
    Grinding is between lo range and hi range. It would be a long ride in lo range.

    OLDSKOOLERnWV and whoopNride Thank this.
  5. Bakerman

    Bakerman Road Train Member

    4,663
    8,806
    Jan 27, 2013
    Phoenix, AZ
    0
    Does it do it everytime, or just on occasion?

  6. xsetra

    xsetra Road Train Member

    4,923
    6,578
    Aug 21, 2011
    0
    Is has done it all 4 times I needed to shift yesterday.
    Sitting today. While sitting with full air. I can shift the range button up and down and hear the pin smack in trans. That seems ok.
    Shifting in and out of gears is smooth, no grinding.

  7. 8thnote

    8thnote Road Train Member

    1,980
    3,686
    Aug 12, 2013
    Chattanooga, TN
    0
    I'm pretty sure trans in big trucks don't have synchros. That's why double clutching and rev-matching is required.

  8. Bakerman

    Bakerman Road Train Member

    4,663
    8,806
    Jan 27, 2013
    Phoenix, AZ
    0
    Mine does it on occasion for over a year now, 1.6mil on it.
    Maybe I'll get it rebuilt next year, no rush.

  9. DaveLV

    DaveLV Light Load Member

    182
    261
    Sep 18, 2015
    0

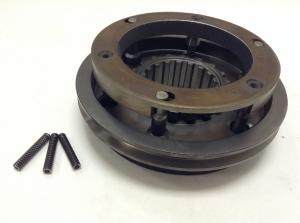

    display.jpg that's a synchro. Located in the auxiliary section of the transmission on the main shaft

    truckdad and whoopNride Thank this.
  10. 8thnote

    8thnote Road Train Member

    1,980
    3,686
    Aug 12, 2013
    Chattanooga, TN
    0
    Is it only for shifting between low and high range? Does it synchronize the aux with the main trans? I'm obviously no mechanic and I'm curious. Thnx

  11. xsetra

    xsetra Road Train Member

    4,923
    6,578
    Aug 21, 2011
    0
    Eaton’s powertrain technologies are used by many commercial truck original equipment manufacturers (OEM) globally and include:

    • Synchronized manual transmissions (5 through 13 speeds)
    • Constant mesh manual transmissions (5 through 18 speeds)


    http://www.eaton.com/rr/ProductsServices/ProductsbyCategory/Transmissions/index.htm
    Web site I have been reading from
