Headache rack specs

Discussion in 'Flatbed Trucking Forum' started by yepyep, Apr 1, 2023.

  1. yepyep

    yepyep Bobtail Member

    Joined:
    Apr 1, 2023
    Messages:
    5
    Thanks Received:
    1
    0
    Hello all. I am installing a rack on my new truck. And im in need of the federal rules and regulatioins pertaining to the install. I have searched the net for a hour and learned nothing that has anything to do with the questions i have. #1 How far away from the cab?
    #2 Reflectors and the placement of?
    #3 Does the rack have to set on the frame? Or can it be raised up at any height?

    If anyone can help me in this it would be greatly appreciated.

    Last edited: Apr 1, 2023
    Reason for edit: installed.
  2. skallagrime

    skallagrime Road Train Member

    Joined:
    Apr 10, 2012
    Messages:
    3,856
    Thanks Received:
    9,943
    Location:
    Indiana
    0
    No regulation on having tape or distance from cab (unless the headache rack obscures the back of the cab, then place reflectors on headache rack as if it were the back of the cab)

    As far as mounting the only one that exists is "must be mounted in a workmanlike manner" - translation, "mount it well enough that it doesnt look like its going to fall off.

    If you have air ride, i would make sure as the air goes up and down it doesnt get closer than 3 inches from the back of the cab.

    As for raising it, i wouldnt recomend it, any extra peices of material that lengthens your ubolts will mean that the rack has more leverage and increases potential for wobble. At most i might consider a small rubber shim strip to keep aluminum from touching the frame.

    beastr123 Thanks this.
  3. yepyep

    yepyep Bobtail Member

    Joined:
    Apr 1, 2023
    Messages:
    5
    Thanks Received:
    1
    0

    Thank you very much for the information. I installed it today. and its perfect. I have another question for you if you have time to help. I have a ABS light on the dash. Do you know the way to narrow it down to the sensor to replace? Or can you point me in the right direction for the help im looking for?

  4. skallagrime

    skallagrime Road Train Member

    Joined:
    Apr 10, 2012
    Messages:
    3,856
    Thanks Received:
    9,943
    Location:
    Indiana
    0
    Im no help for abs diagnostic, youll need which abs manufacturer, and some way to pull the code its throwing. On many trailers, its a simple blink code you can trigger at key on power. (For help on the forum, probably a year, make and model would be helpful)

    I would try to eliminate the trailer from the equation first though if you havent already

  5. beastr123

    beastr123 Road Train Member

    Joined:
    Jan 2, 2014
    Messages:
    2,882
    Thanks Received:
    23,644
    Location:
    Moose Jaw SK CAN
    0
    A hard plastic can be substituted for the rubber.
    strips of dollar store cutting board work great, as does strips of junk plastic mudflap.
    The U-bolts also should be isolated from the aluminum of the legs, more plastic or even rubber hose can work.

    Last edited: Apr 1, 2023
    cke, Blue jeans and skallagrime Thank this.
  6. fortycalglock

    fortycalglock Road Train Member

    Joined:
    Jun 25, 2011
    Messages:
    6,156
    Thanks Received:
    6,585
    Location:
    Tourist Town, FL
    0

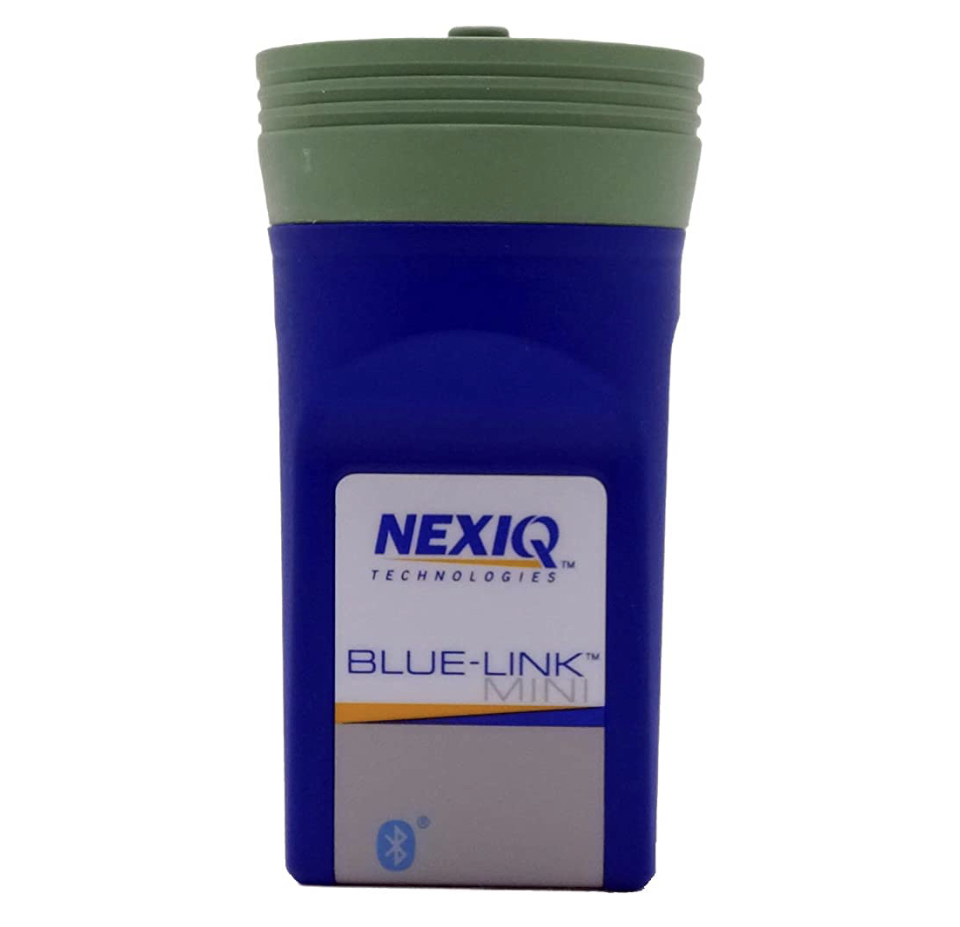

    Everyone should have one of these if you don’t have an ELD that sends you codes or if you’re looking to buy a truck.
    Amazon.com 6CE10767-0611-471D-9A7B-0546E4B6F65F.jpeg
