Help! Lift Gate stopped working

Discussion in 'Trucks [ Eighteen Wheelers ]' started by Exbreadguy, May 3, 2014.

Page 2 of 2
  1. May 3, 2014 #11
    Exbreadguy

    Exbreadguy Bobtail Member

    8
    1
    May 3, 2014
    0

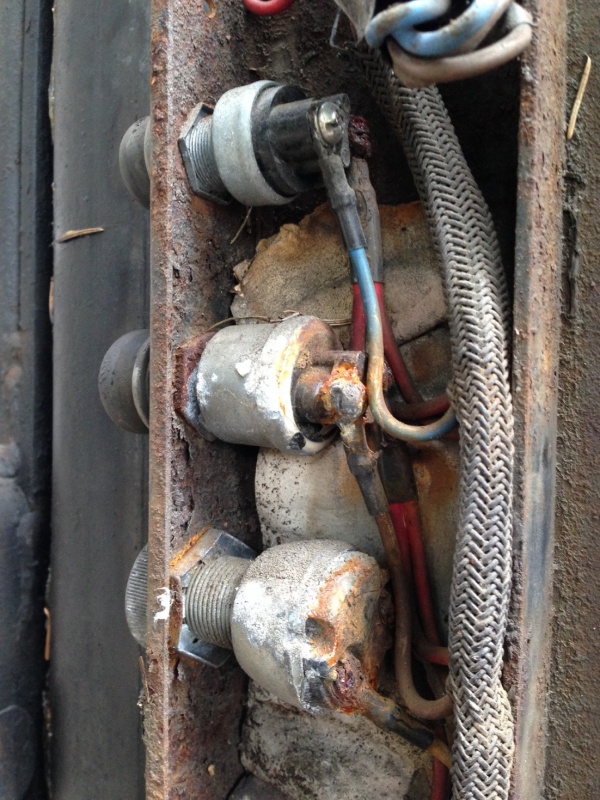

    Here's the backside of the switch box... pretty nasty looking.


    Exbreadguy, May 3, 2014
    Exbreadguy, May 3, 2014
    #11
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. May 3, 2014 #12
    Exbreadguy

    Exbreadguy Bobtail Member

    8
    1
    May 3, 2014
    0
    Ok, I'm only getting 1.5-4.2V across the backs of those switches. Things must just be too rusty and corroded I'm thinking.

    Exbreadguy, May 3, 2014
    Exbreadguy, May 3, 2014
    #12
  4. May 3, 2014 #13
    CondoCruiser

    CondoCruiser The Legend

    19,726
    18,734
    Apr 18, 2010
    Tennessee
    0
    It's a good possibility since the whole system is 12V. The battery arc was enough to finish the poor connection off. Look at the grounds too.


    EDIT: Wow, I just looked at that picture. Yeah they are extremely corroded. Take those wires off and clean them up the best you can. If you have some dielectric grease available smear some on the connections after clean up. That will help stop future corrosion. Is that suppose to be a water tight box? Bad gasket? Figure out how to seal it... silicone?

    CondoCruiser, May 3, 2014
    CondoCruiser, May 3, 2014
    #13
    Exbreadguy and Big Don Thank this.
  5. May 3, 2014 #14
    Exbreadguy

    Exbreadguy Bobtail Member

    8
    1
    May 3, 2014
    0
    Yeah it's pretty incredible it was working fine a few months ago in that condition. The box was missing one of the screws that held it in place, and the top screw just popped out because it was so stripped. I don't think it even had a gasket either. Just some old canvass type stuff shoved in there which probably doesn't help much in the Pacific NW. I'll get some silicone for it once I get it cleaned out.

    Can't thank you enough for your insight. Should be able to get this fixed tomorrow so it can go back to work.

    Exbreadguy, May 3, 2014
    Exbreadguy, May 3, 2014
    #14
    CondoCruiser Thanks this.
  7. May 4, 2014 #15
    Big Don

    Big Don "Old Fart"

    17,996
    35,643
    Sep 8, 2007
    Utah's DIXIE!
    0
    Please let us know how you come out with this!

    Big Don, May 4, 2014
    Big Don, May 4, 2014
    #15
  8. Sep 13, 2023 #16
    Lost in the woods

    Lost in the woods Bobtail Member

    1
    0
    Sep 13, 2023
    0
    Quick thanks to you and Big Don. Really helped some NASA scientists figure out why their liftgate wasn’t working on a field truck without having to lose a day stuck in the shop :) wasn’t the exact issue as described but it got us looking at the right things.

    Lost in the woods, Sep 13, 2023
    Lost in the woods, Sep 13, 2023
    #16
