Help me understand some weight numbers?

Discussion in 'Expediter and Hot Shot Trucking Forum' started by 24kHotshot, Jun 11, 2019.

  1. bmercer

    bmercer Bobtail Member

    35
    24
    Sep 27, 2011
    Rolesville,NC
    0
    Look at the last line.
    That will give you all the info you need.

    24kHotshot Thanks this.
  2. 24kHotshot

    24kHotshot Light Load Member

    194
    85
    Feb 19, 2019
    0
    Yea, the listed weight doesn't include the upfit weight. I'll tell you something more, it doesn't include my dual fuel tanks or any other extra options I bought the truck with. My truck weighs 9300 lbs full of 74 gallons of fuel, some kit and me.

    Where did you get that chart from? And that is what I meant if 33k lbs was my hard limit as it shows in the chart yet on the same line it says I have 25k lb tow capacity. It doesn't add up.

  3. bmercer

    bmercer Bobtail Member

    35
    24
    Sep 27, 2011
    Rolesville,NC
    0
    I just googled it.
    Been getting them sense 2014.
    Ram body builder site has the same information.
    The numbers are close.
    Base weight 7723
    Hitch crafters 740 +or-
    Fuel 525 +or-
    Total 8988
    Max Tra 25130
    Total 34118
    Take away fuel and Hitch crafters you have 32853

    24kHotshot Thanks this.
  4. 24kHotshot

    24kHotshot Light Load Member

    194
    85
    Feb 19, 2019
    0
    I finally understand how they got 33k gcw and from that 25k max tow capacity. So I can't calculate the trucks 14k seperatly from the trailer's 25k. Then I guess my truck can't really pull a loaded belly loader. Might have to look for a lighter 4 car trailer and register for about 35k to be safe.
    I have some time to research it further. Thanks for the info bmercer.

  5. bmercer

    bmercer Bobtail Member

    35
    24
    Sep 27, 2011
    Rolesville,NC
    0
    If you can get out of the trailer you ordered I would and buy the 50' kaufman.
    It only weighs approx. 5600 lbs and is rated for 18k.
    I ran a used 3 7k axle for 2 years with a Ram 3500 with 3.73 rear and never had a problem with it.
    I put new bearings in it when I bought it and serviced them myself on a regular basis.
    One set of shoes the whole time.
    I don't know why Ram does things the way they do.

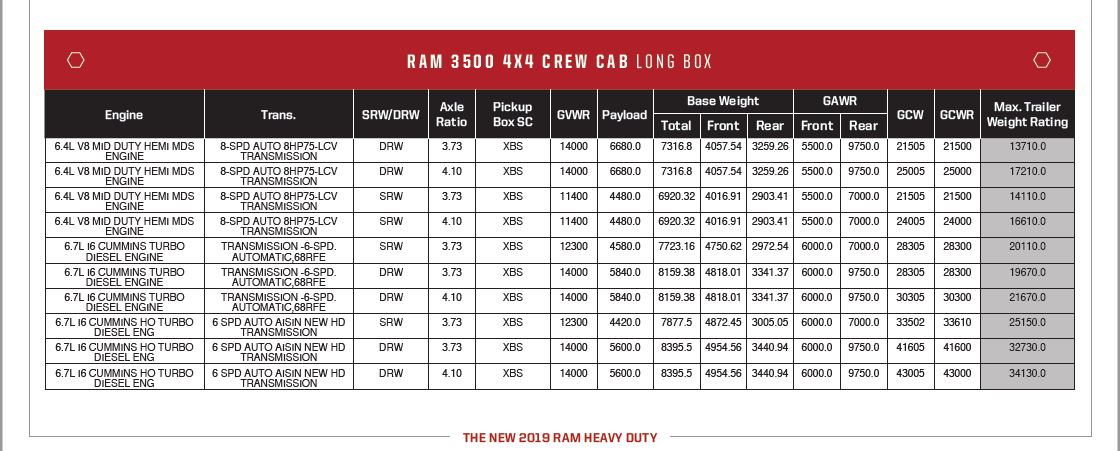

    Check out the 3500 with 4.10 rear on this chart. Big difference on gcwr (33k c@c) (43k pickup)
    I can tell you the most I ever grossed on mine was 32k. (2 fords Raptors and a mini Van)
    I had my tag at 36k.
    The bad thing about the 3500 is the rear axle rating.
    You can overload it very easy. The 4500 has a 12k rear and the 5500 has a 13.5k rear.
    The 5500 is what I have now.


    Attached Files:

    24kHotshot Thanks this.
  6. 24kHotshot

    24kHotshot Light Load Member

    194
    85
    Feb 19, 2019
    0
    I know the kaufman website says their 50 foot weighs only 5600 lbs but that is a lie. I had an option of buying one and I went to the scales with it. 6700 lbs on cat scales, I was a few lbs short of 16k for my truck and empty trailer. The one I found was also only rated for 12,000 with the 3 axles and I didn't know that I could have it changed. I don't like the kaufman quality so much. Heard plenty of horror stories about these trailers and seen a few being junk after a year of use. The trailer I was offered was "only 3 months old" and looked more like a few years old and already needed lots of work.

    I prefer the tandem for lower maintenance costs and the 28k lbs combined total is plenty for 3 cars. Very good reviews for the Take 3 quality and not being able to find any used ones for sale kind of proves it. No one wants to sell their take 3. 5300 lb on the scale and low profile. 49 ft of load with an option for flip outs if I want them added later.

    I'm going to stick to the trailer I ordered for a year or so and then rent it out when I am ready for a good upgrade.

    I bought the 3500 because the plan was going to be to run non cdl. I didn't realize the c&c can't tow as much as the pickup back then. If I knew then that I would be getting my cdl I definitely would have bought a 5500. You live you learn I guess... Overall I am happy with my truck and will be content with a 3 car for now.

  7. bmercer

    bmercer Bobtail Member

    35
    24
    Sep 27, 2011
    Rolesville,NC
    0
    You'll be fine with what you got.
    It will give you a chance to see and learn what the business is all about.
    Here are the scale tickets for the Ram 3500 and kaufman 50'.
    Full of fuel, equipment and me ready to go.
    Good luck to you. Keep us posted.
    I always like to hear of another's success.
    Everyone has something to share an if they will we can all learn.


    Attached Files:

  8. 24kHotshot

    24kHotshot Light Load Member

    194
    85
    Feb 19, 2019
    0

    Do you have a picture of that trailer? I think we are not talking about the same kaufman trailer. Is that a wedge? I hooked up to a low profile 3 axle kaufman wedge, empty trailer tool boxes, full of fuel and all kit except straps and it added 6700 lbs to my scale ticket. I'm not sure but I think it might of had the 17.5 wheels on it. Could that justify over a 1000 lbs of extra weight?
    Can cat scales "lie" ?

  9. 24kHotshot

    24kHotshot Light Load Member

    194
    85
    Feb 19, 2019
    0
    Also, I see the scale ticket date is 2014, maybe the older trailers were lighter?

  10. bmercer

    bmercer Bobtail Member

    35
    24
    Sep 27, 2011
    Rolesville,NC
    0
    Yes it was Kaufman's standard 50' 3 axle wedge, no extras.
    I don't know what the 3 axle low pro weighs.
    Scales do vary some.
    That same trailer equipped the same, weighted with three different trucks at the same scale, over different time periods came in different.
    5120, 5340, 5480
    Here is a picture of the heaviest load I had.


    Attached Files:
