Hight swr

Discussion in 'CB Radio Forum' started by Madmaths, Dec 4, 2016.

Page 1 of 3
  1. Dec 4, 2016 #1
    Madmaths

    Madmaths Bobtail Member

    4
    0
    Dec 4, 2016
    0

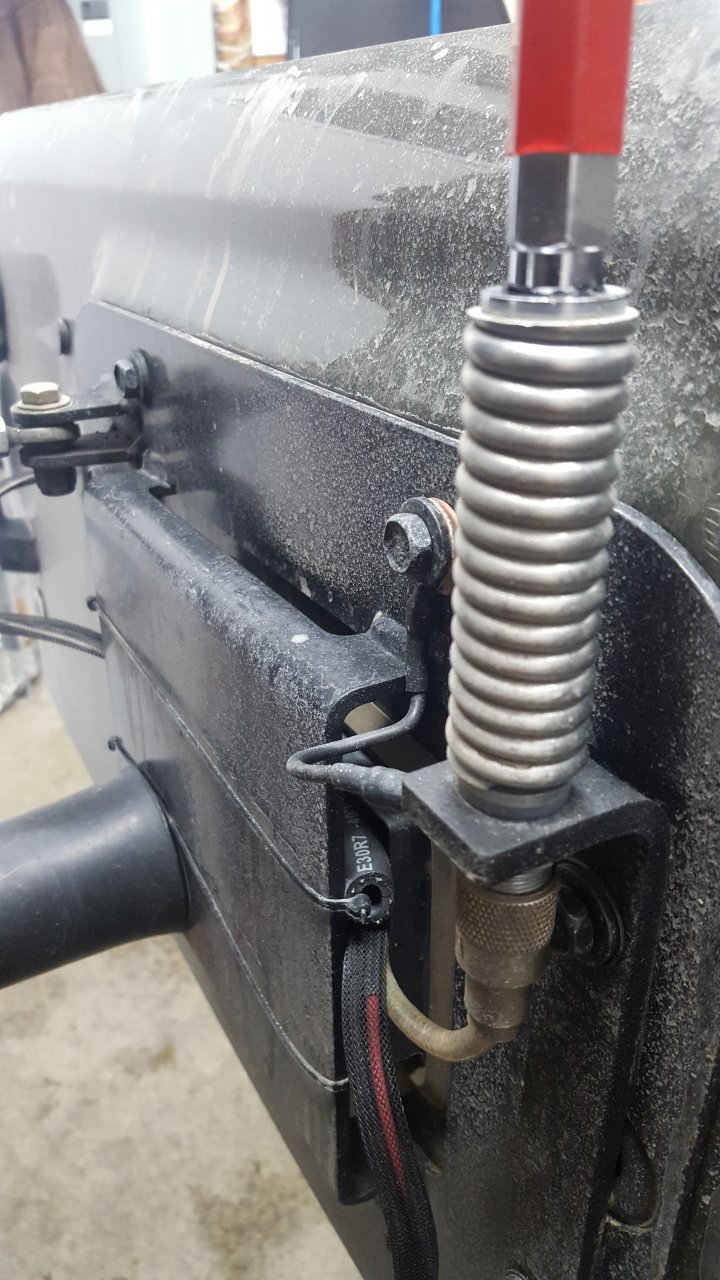

    Hi!! I know swr question is very popular! Sorry.. I try to tune my cobra 29 lx bt and my firestick2 but my swr is at the top of the scale ( using the built in swr meter of the cobra..) I know grounding is very imp... if you refer to the pics anytings wrong?? Thanks for your help!!


    Attached Files:

    Madmaths, Dec 4, 2016
    Madmaths, Dec 4, 2016
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Dec 4, 2016 #2
    poppapump1332

    poppapump1332 Road Train Member

    2,986
    2,464
    Jan 2, 2010
    birdsboro,pa
    0
    You have no ground if your swrs are over 3 across the board looks like you need to pull that bracket off and scrap the paint off to get a good ground.

    poppapump1332, Dec 4, 2016
    poppapump1332, Dec 4, 2016
    #2
    bored silly, rabbiporkchop and Madmaths Thank this.
  4. Dec 4, 2016 #3
    Madmaths

    Madmaths Bobtail Member

    4
    0
    Dec 4, 2016
    0
    I chek with a ohm test and my ground should be good. if you look a the pics I post. I put a small wire with a cooper washer to make sure my ground is good..

    Madmaths, Dec 4, 2016
    Madmaths, Dec 4, 2016
    #3
  5. Dec 4, 2016 #4
    poppapump1332

    poppapump1332 Road Train Member

    2,986
    2,464
    Jan 2, 2010
    birdsboro,pa
    0
    Copy that still sounds like a ground problem if swr are above 3 and the same on 1&40 also check your coax connections maybe one is bad or coax itself is bad.

    poppapump1332, Dec 4, 2016
    poppapump1332, Dec 4, 2016
    #4
  7. Dec 4, 2016 #5
    Ridgeline

    Ridgeline Road Train Member

    22,730
    123,542
    Dec 18, 2011
    Michigan
    0
    First off stop.

    Second get an external meter and test it.

    Third electrical ground is not rf ground.

    Ridgeline, Dec 4, 2016
    Ridgeline, Dec 4, 2016
    #5
    QuietStorm, rabbiporkchop, mike5511 and 1 other person Thank this.
  8. Dec 4, 2016 #6
    Madmaths

    Madmaths Bobtail Member

    4
    0
    Dec 4, 2016
    0
    Problem solve!! thanks!

    Madmaths, Dec 4, 2016
    Madmaths, Dec 4, 2016
    #6
  9. Dec 5, 2016 #7
    Ridgeline

    Ridgeline Road Train Member

    22,730
    123,542
    Dec 18, 2011
    Michigan
    0
    OK what was it?

    Ridgeline, Dec 5, 2016
    Ridgeline, Dec 5, 2016
    #7
  10. Dec 5, 2016 #8
    Madmaths

    Madmaths Bobtail Member

    4
    0
    Dec 4, 2016
    0
    First i had a 90deg connector at my cb remove it and the swr go down a lot!!! second removing the spring help to!! now I'm at 1.8 at chanel 1 and 40. this is on a jeep so I will make sure my tail gate is properly ground to fine tune..

    Madmaths, Dec 5, 2016
    Madmaths, Dec 5, 2016
    #8
  11. Dec 10, 2016 #9
    craig_sez

    craig_sez Road Train Member

    5,570
    2,714
    Sep 5, 2013
    novascotia,Canada
    0
    Looking at the pic..On the ant side of the mount,clean(and any metal to metal connect point) the paint off..2nd try again without the spring..

    craig_sez, Dec 10, 2016
    craig_sez, Dec 10, 2016
    #9
    rabbiporkchop Thanks this.
  12. Dec 22, 2016 #10
    bored silly

    bored silly Road Train Member

    2,714
    656
    Jul 1, 2016
    0
    grounding is huge a lot of people don't realize that.....

    bored silly, Dec 22, 2016
    bored silly, Dec 22, 2016
    #10
    Madmaths Thanks this.
