Hopper bottom brakes inoperable

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by mile marker 27, May 10, 2020.

  1. mile marker 27

    mile marker 27 Road Train Member

    1,419
    1,739
    Dec 4, 2019
    0
    4742A47A-B5A0-45F1-BB46-253A964B6F92.jpeg 520EB531-D973-4D94-B954-F20491563BF6.jpeg 7811F4BB-02E3-435D-A471-4C525113D1A7.jpeg Parked my hopper trailer back in March. Hooked up to my 4070B and we’re not getting any brakes to the trailer. Had brakes on an end dump with the 4070. Getting air to the 3 tanks on the trailer and getting air to the valves, where “control” ports are labeled. Brakes are slowly engaging with the foot and hand brake are applied the first time but are slow to release. The whole system seems to not lock the brakes down tight and fails to move the brakes if there pumped.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. mile marker 27

    mile marker 27 Road Train Member

    1,419
    1,739
    Dec 4, 2019
    0

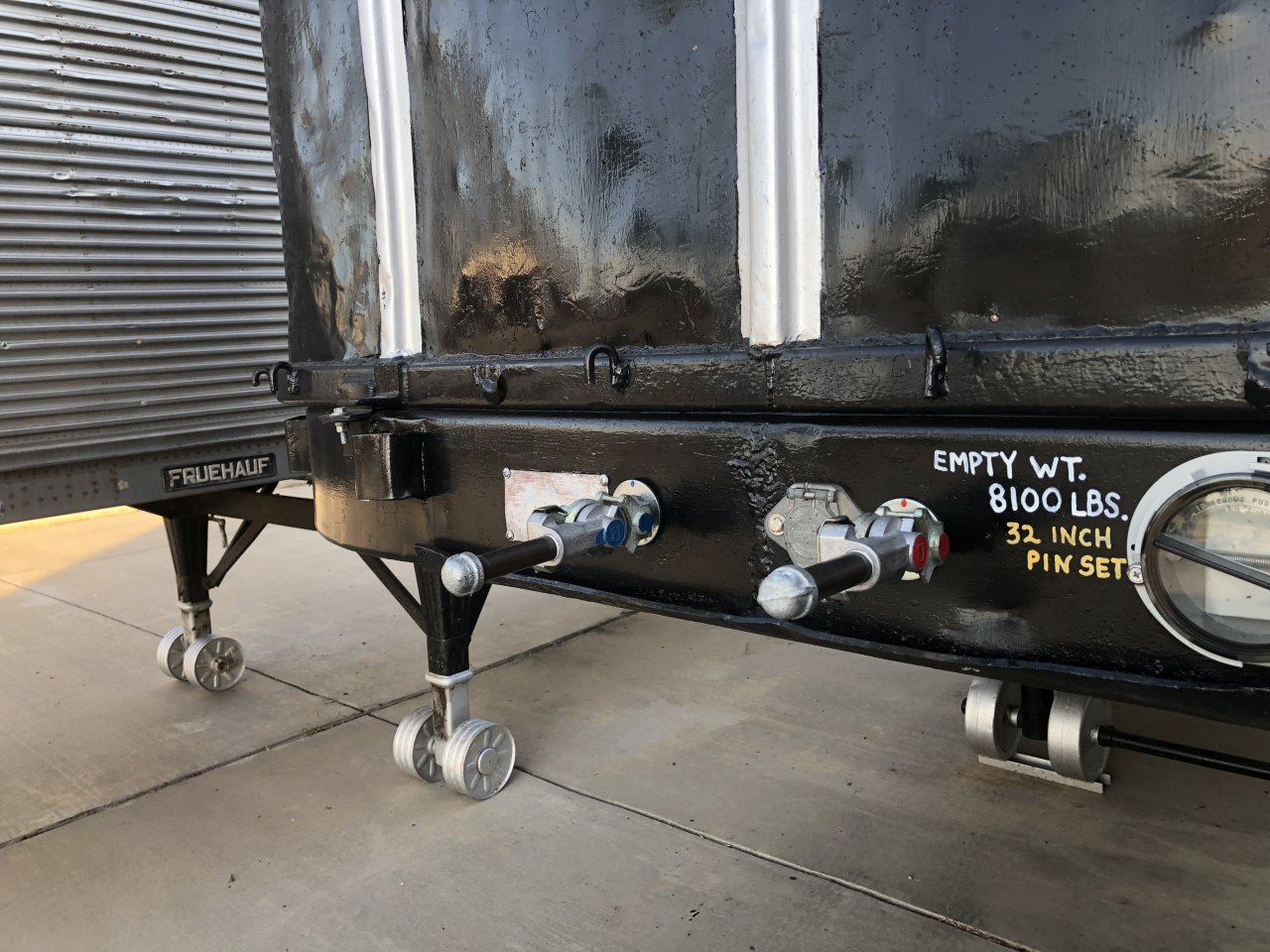

    First pic is the front two valves.
    Second is the rear valve and third is the first valve.

  4. McMahons Trucking

    McMahons Trucking Light Load Member

    274
    119
    Jul 4, 2018
    0
    Have you greased them and freed them up?

  5. mile marker 27

    mile marker 27 Road Train Member

    1,419
    1,739
    Dec 4, 2019
    0
    I greased them on the morning of the last day I hauled, a couple months ago. What made me catch that they weren’t working, was after I hook, I generally try the hand brake and got nothing.

  6. SmallPackage

    SmallPackage Road Train Member

    5,827
    18,676
    Dec 20, 2019
    Marion Texas
    0
    Were the glad hands left exposed when the trailer was stored? Mud dauber pack some putty in the service line?
    They are active right now.
    If the brakes fully release off the drums and fill the the tanks with the supply line but work slow or no with service that would be my first thought. I always cap them off with dummy hands when unhooked even if for just a day. Keeps dirt and water out.

    Snailexpress Thanks this.
  7. Troy_

    Troy_ Road Train Member

    1,229
    9,266
    Dec 13, 2017
    Roma, Alberta.
    0
    we got into the habit of taping the glad hands on trailers that are going to sit for extended periods, insects would build nests inside the lines and cause grief. could be something decided to set up camp in your service line.

    baha and mile marker 27 Thank this.
  8. Snailexpress

    Snailexpress Road Train Member

    2,675
    6,069
    Apr 28, 2014
    Rocky
    0
    With someone help check parking brake functioning, how quick brake shoe release and set with red button push/pull. If it's slow S-cam are seized. Grease and try.

  9. lester

    lester Midwest's #1 Feed Hauler

    2,957
    8,089
    Jan 2, 2012
    NW, Iowa
    0
    I would also say you probably have something blocking the line. Take the supply and or signal lines off the valve and I'd bet you'll find it packed full of junk
