How many pounds of freon?

Discussion in 'Western Star Forum' started by fortycalglock, Jun 8, 2012.

  1. jim4805

    jim4805 Bobtail Member

    1
    1
    Jul 18, 2015
    0
    York style comp (square)
    with 1 evaporator and climate control(York) prior to dec 10 2004 5.10lbs after dec 10, 2004 4.20lbs
    with 2 evaporator and climate control(York) prior to dec 10 2004 5.80lbs after dec 10, 2004 4.80lbs

    Sanden style comp.(round)
    with 1 evaporator and Sanden, prior to dec 10 2004 4.20lbs after dec 10, 2004 4.20lbs
    with 2 evaporator and Sanden, prior to dec 10 2004 4.80lbs after dec 10, 2004 4.80lbs

    fargonaz Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. fortycalglock

    fortycalglock Road Train Member

    5,971
    6,162
    Jun 25, 2011
    Tourist Town, FL
    0
    Three years late, but thanks!

    oldwestern and Cetane+ Thank this.
  4. David Ibarra

    David Ibarra Bobtail Member

    3
    0
    Jun 5, 2018
    0
    U can't have both it's one or the other most use the expansion valve . 5 minutes vacuum to check for leaks 15m for a quicky and charge , 30m is better but the best is 1hour , your not just making it a negative pressure your removing moisture moisture ! That's the enemy to the system , a general repair cost is $1000 . Do the HOUR .

    Last edited by a moderator: Jun 14, 2018
  5. Cetane+

    Cetane+ Road Train Member

    1,304
    878
    Sep 29, 2013
    Albany, NY
    0
    This was mine, specks from the factory a 2001 truck in avatar. FREON = 5.85 LBS

  6. Roadking96

    Roadking96 Light Load Member

    110
    41
    Jan 7, 2016
    0
    I just replaced everything AC related beside the condenser.it took 4lbs and it blows ice cold.
    Only problem is if i put it on recirculation mode most of the air blows to the foot vents.frezzes my feet to death.any idea why it’s dumping most of the air in the foot vents???

  7. Cetane+

    Cetane+ Road Train Member

    1,304
    878
    Sep 29, 2013
    Albany, NY
    0
    What truck and picture of controls?



  8. Roadking96

    Roadking96 Light Load Member

    110
    41
    Jan 7, 2016
    0

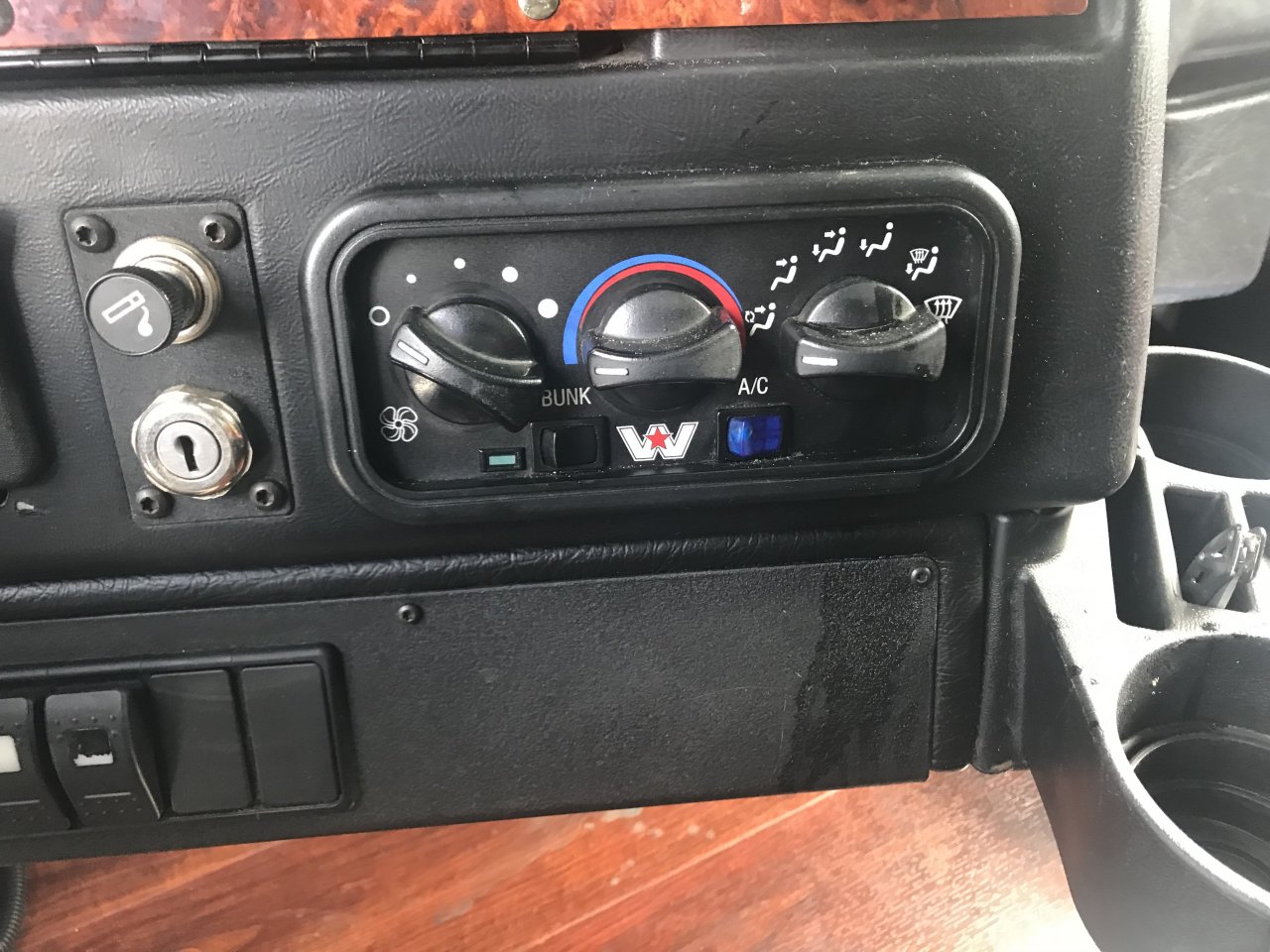

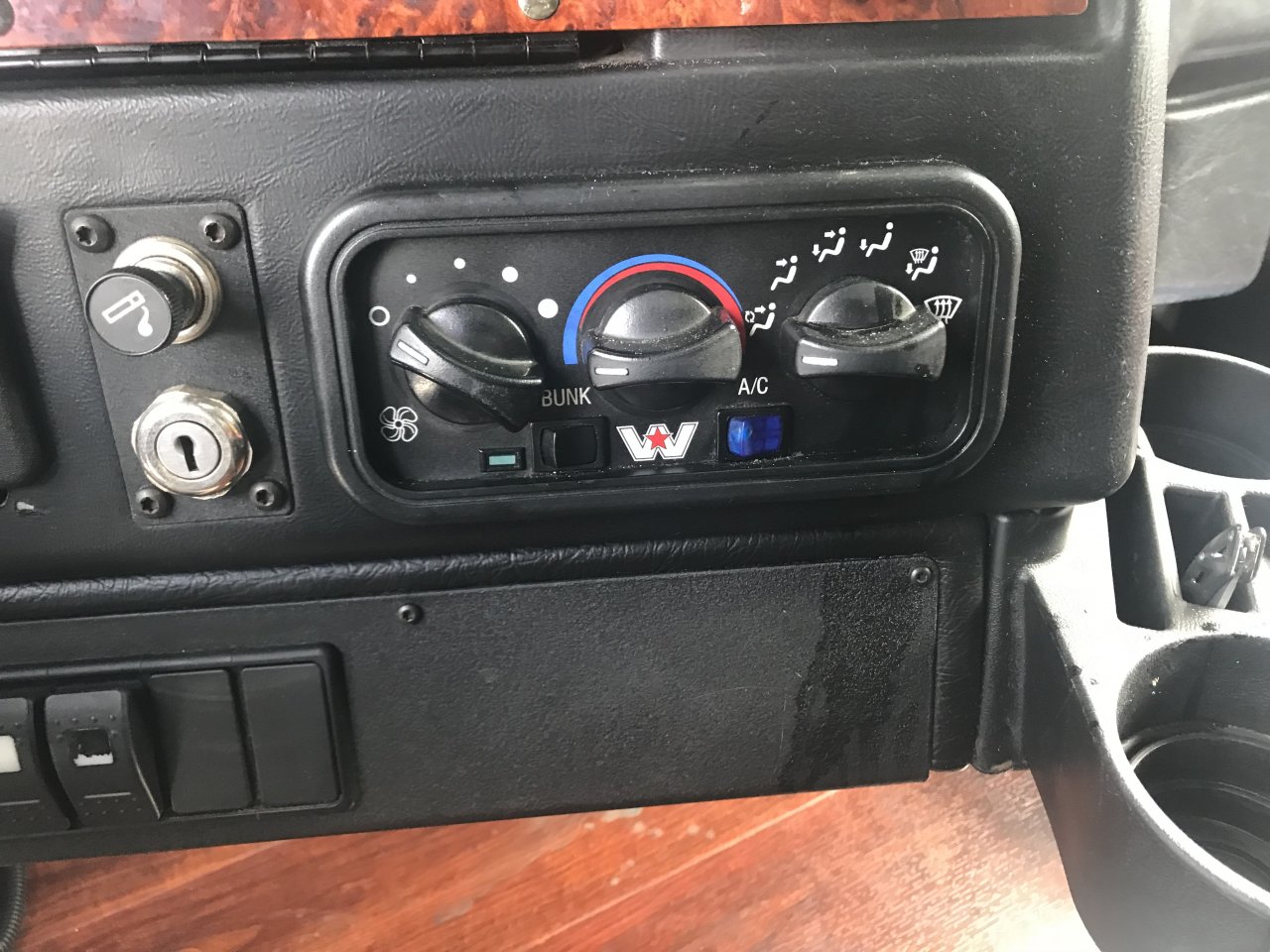

    Its 2009 4900fa.in the second picture, where the blower fan motor is i have water Dripping from there


    Attached Files:

  9. Cetane+

    Cetane+ Road Train Member

    1,304
    878
    Sep 29, 2013
    Albany, NY
    0
    clean out your drain tube. its the plastic line coming down from the cab behind the passenger side front tire. Take it out of the mounting strap, that usually kinks it.

    Roadking96 Thanks this.
  10. Roadking96

    Roadking96 Light Load Member

    110
    41
    Jan 7, 2016
    0
    Ok appreciate it.will try tht and get back to you.
    Will this also fix the floor vent issue or that will be something else??

  11. Cetane+

    Cetane+ Road Train Member

    1,304
    878
    Sep 29, 2013
    Albany, NY
    0
    That’s your condensation drain tube. If you have the manual levers for climate control that’s probably just wore out and you need a new one. If you have the electronic control for climate, it could be a whole Nother issue.



    Roadking96 Thanks this.
