How to keep bond straps in good shape

Discussion in 'CB Radio Forum' started by craig_sez, Jan 2, 2022.

  1. craig_sez

    craig_sez Road Train Member

    5,185
    2,463
    Sep 5, 2013
    novascotia,Canada
    0

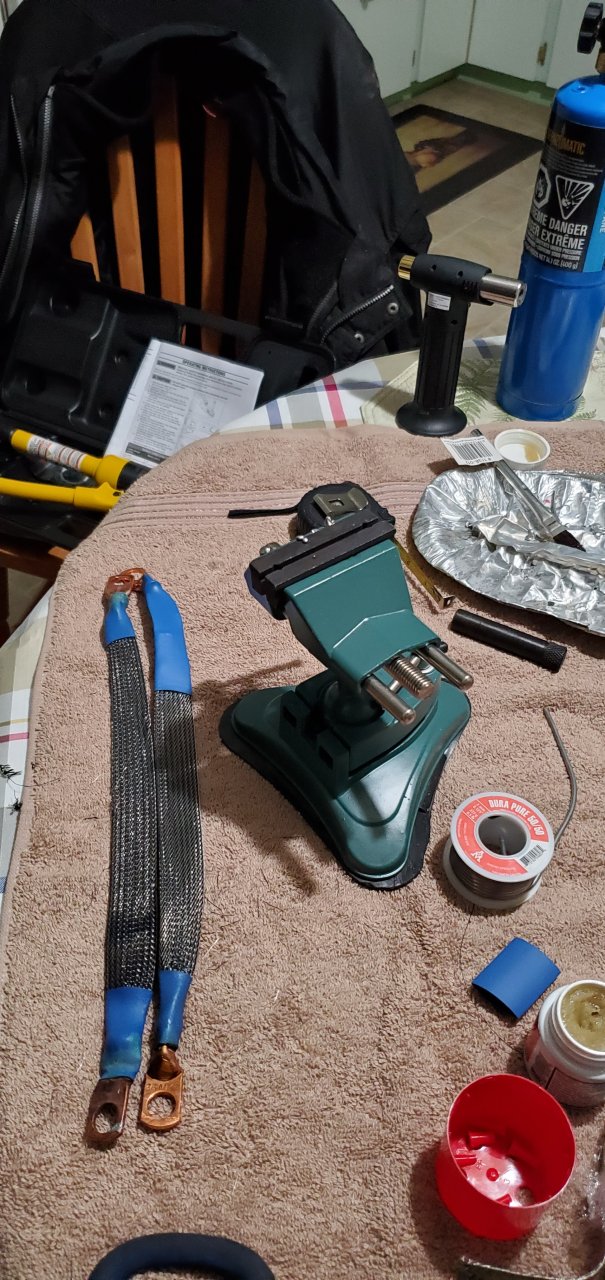

    2 done..Forgot i had a fibreglass type sheathing to help protect them and what they mount near..
    Thats two for my rear cab shocks so far.. 20220102_203003.jpg

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. craig_sez

    craig_sez Road Train Member

    5,185
    2,463
    Sep 5, 2013
    novascotia,Canada
    0
    Got frig all done but a mess on my kitchen table.. 20220102_203811.jpg

    Wish i had a solder pot for this,it would be so much quicker..

  4. buddyd157

    buddyd157 Road Train Member

    11,909
    28,615
    May 25, 2017
    under a shade tree
    0
    ok in the pics, (to me) just ordinary "grounding" straps......

  5. craig_sez

    craig_sez Road Train Member

    5,185
    2,463
    Sep 5, 2013
    novascotia,Canada
    0
    Yeap thats all it is..You can make your own or buy them..
    1" braided i got in a roll,bought some copper eyelets(lil to big but they will do the job)and i crimp,fill with solder then cover with the nylon sheathing and heat shrink on the ends..


    Attached Files:

  6. craig_sez

    craig_sez Road Train Member

    5,185
    2,463
    Sep 5, 2013
    novascotia,Canada
    0
    Feels like it took forever and me arse is numb but i made 8 6" straps and 2 15"..Should be enough for some better bonding than what i have now...


    Attached Files:

  7. Night Stalker10

    Night Stalker10 Road Train Member

    1,180
    679
    Jun 26, 2017
    0
    Nice job. It would be interesting to see your analyzers before and after the bonding numbers.

  8. craig_sez

    craig_sez Road Train Member

    5,185
    2,463
    Sep 5, 2013
    novascotia,Canada
    0
    Planned to do it today but temps went from mid 40's down to half that and with the breeze half that again..Gonna have to wait till i can do it inside somewhere..
    What i got there will do rear cab shocks,2 on each door and door to firewall..Not see an easy axcess for cab to chassie up front..

    Im told im gettin a new trk in the next few months so im not gonna go nuts with it...

  9. craig_sez

    craig_sez Road Train Member

    5,185
    2,463
    Sep 5, 2013
    novascotia,Canada
    0
    Not sure how much of a difference it will make to my analyzer results..My swr is (@ full power) still at or below 1.3ish,resonance is best on 40 vs better in the middle and im as extended as far as i can go..It may help some but im thinking it will make my ant more efficient and change the tx lobe pattern to be a lil more circular vs more like a cone off the tip..I always assumed it came off more like a half moon shape..

  10. Night Stalker10

    Night Stalker10 Road Train Member

    1,180
    679
    Jun 26, 2017
    0
    Ya, your swr is pretty decent already. I thought it would be interesting to see if the RL and reactance improves with the extra bonding.

  11. craig_sez

    craig_sez Road Train Member

    5,185
    2,463
    Sep 5, 2013
    novascotia,Canada
    0
    Pretty much what im hopeing for as well..
    Just odd how i cant get my 10k to tune,a few 7ft skip shooters and i have my 102 on a 10" riser and get it to tune to a llwer freq..
    I even bought another 102 and went direct to my ant stud and same issue..So other than better bonding im stumped..
