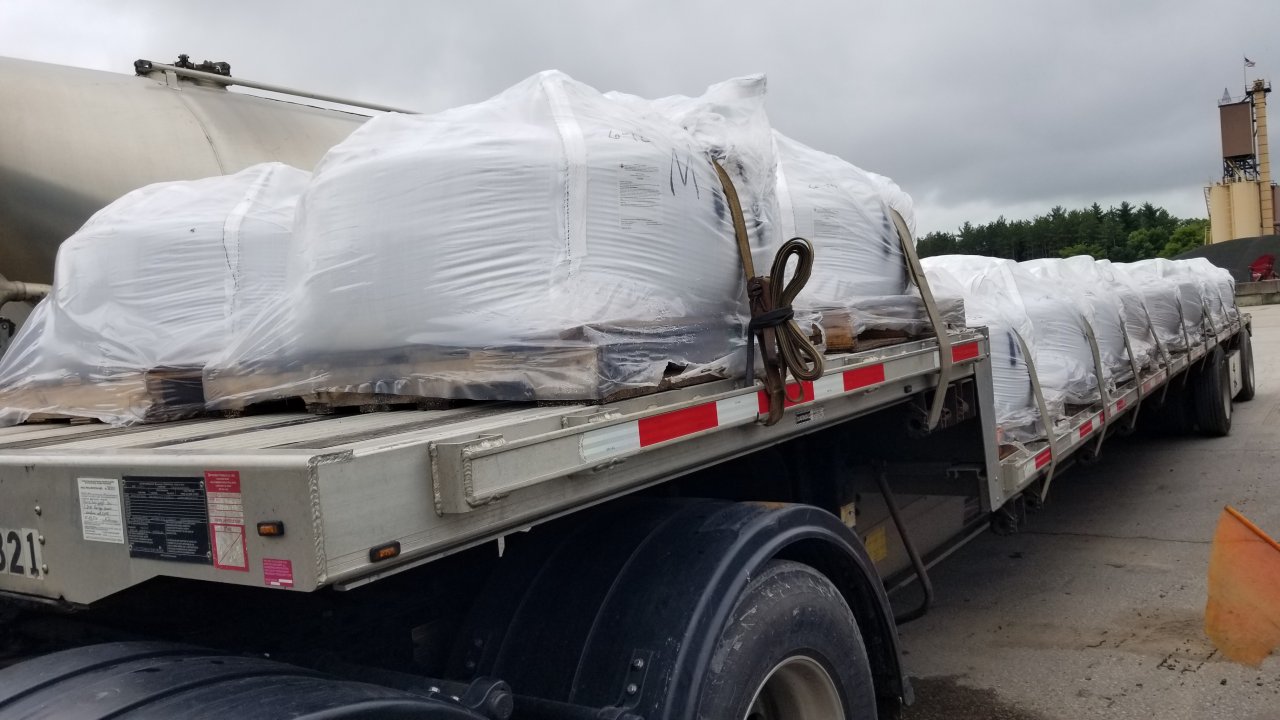

Is this right or wrong?

that's how i strapped down a load of those wood pellets, when i worked at Lowes. i had to stop every once in a while as the pellets would settle, so i could retighten the straps.



Looks ok but should have 2 straps on the front and back bags



Looks good to me, it's low & wide enough for it. As @beastr123 said though, 2 straps on the front & back bags. Also, this is a load that'll tend to settle, so strap check often....



For the most part it looks good.
There are two choices for the front and back.
2 straps over the top or do X straps across and over.



Youre objecting to the straps over the side rails i assume?

Its legal as of a few years ago, id prefer being inside the rails myself, but a bunch of the spots in order to center, looks like the strap is right at a stake pocket, its just easier to do it that way for most guys especially when you leave straps on the reels.

As others said, 2 straps front and rear pallets though



Two straps are required anywhere a piece of freight is nit directly touching a piece of freight or a proper headboard in front of it. The front row needs another strap to be legal, the back is perfectly legal with only on strap.



Eh fair enough, im pretty much of the opinion that 2 front and back because 1 extra strap is easy enough to throw and i dont trust a dot officer to know the difference between front and back.

Plus symmetry is nice



nc will burn u a new one with out 2 straps on the first pallet. they got camera's on there vehicles that detect this
