I have a 2012 Cascadia with a DD13 giving an Eng1 1073 Fail 5 code. It means - Jake Brake Stage 2 Circuit Fail Open.
Since Stage 1 is good, dare I assume the wiring is ok, but my solenoids are bad? Any repair suggestions?
This is my first Freightliner, so I'm a little lost on the location of electrical items.
Jake Brake Stage 2 Circuit Fail Open.
Discussion in 'Freightliner Forum' started by GameDayDog, Apr 26, 2017.
Page 1 of 2
-
-
Trucking Jobs in 30 seconds
Every month 400 people find a job with the help of TruckersReport.
-
Question for you...did you have recent upper engine work done recently? Service injectors? Valve lash service? Etc...
1073/5--Jake Brake Stage 2 Circuit Failed Open

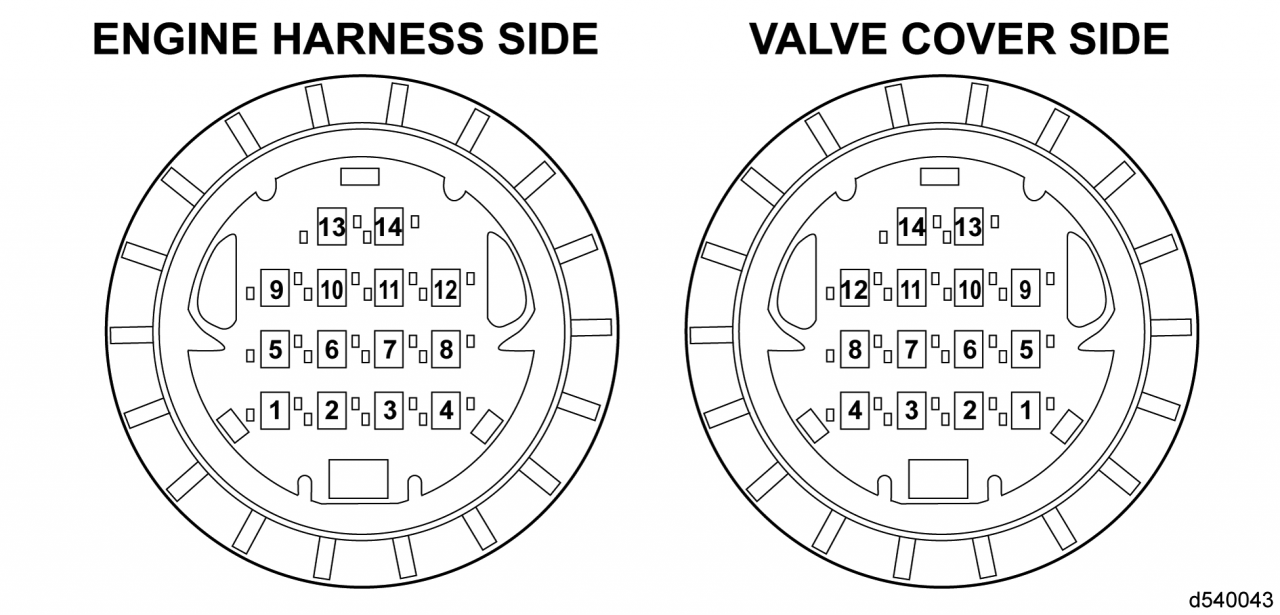

- Disconnect the rear electrical harness connector of the two-piece fuel injector wiring harness.
- Measure the resistance between pin 13 and 14 on the valve cover side of the rear two-piece fuel injector wiring harness . If you are using J-48671–10, measure across Jake Brake 2 pins.
- If the resistance is between 9 and 12 ohms,Go to step 3.
- If the resistance not between 9 and 12 ohms, go to step 5.
- Turn ignition ON, engine OFF
- Measure voltage at pin 14 of the MCM side and valve cover harness ground
- Remove rocket cover
- Disconnect the rear Jake Brake solenoid
- Measure the resistance across the Jake Brake Solenoid
- If resistance is between 9 and 11 ohms, replace the two-piece fuel injector wiring
- If the resistance is NOT between 9 and 11 ohms, replace the Jake Brake solenoid
QUALITYTRUCK Thanks this. -
GameDayDog Thanks this.
-
Fantastic. Thank you so much. I'll check the resistance right now. If the truck was serviced, I didn't do it. I've only had the truck a month. Other than the check engine light coming on & off at random, I've been code free. BRB
Well that was a fail on checking the resistance.. Why'd it have to be the rear connector? Definitely would be easier with the motor out of the truck. I'll try this later & report.Last edited: Apr 26, 2017
-
(Ignore the right side of the picture showing the mechanical fuel injector as yours is common rail)
Here's a picture showing the GENERAL operation...sorta.
Here's the location of the solenoid. It's located at the rear, hence the REAR rocker harness:
Here's a DL of a PDF that talks more about Jakes--if youre interested
http://www.jacobsvehiclesystems.com/files/media/Product/Sell_Sheet_DD_721_2.pdfGameDayDog Thanks this. -
The probes on my multimeter were too thick to test the connector & too long to test the pins.
I'm going to get some wire & blade connectors so I can have access points to get readings. -
Most likely either an injector harness or solenoid. The harnesses are pretty britle and don't take much to break if they've never been changed.
GameDayDog Thanks this. -
Yeah, it's on the solenoid side. I was ready to take the rocker cover off. My boss reminded me to make sure they had the part first! Of course, they didn't. The dealer suggested changing the solenoids & the wiring harness. I'm surprised they didn't suggest new a starter, alternator & engine. I hate dealerships.
-
@GameDayDog what dealer is this out of curiosity?
This really isn't TOO big of a deal. It's all upper engine work. At this point, I would suggest doing a valve lash job, and you'll need new rocker cover gaskets. Go ahead and change the solenoid with a new one--might as well in addition to the rear rocker wire harness. I'm not sure how many miles are on your truck--but I'd just take advantage of it. Maybe even consider getting new remanned injectors..? Engine brakes are very important--especially on hilly terrain. -
This was Tom Nehl in Jacksonville, FL. My boss says they're one of the best around, but I left highly unsatisfied.
I tell them, "The Stage 2 Jake brake solenoid is bad." And 8 hours later, they tell me - "The Stage 2 Jake Brake solenoid is bad." Ugh!
I'm kinda old school. If it isn't broke, don't fix it! The truck only has 497k on her, the last 10k being mine. IMHO, the engine parts should just be getting broken in.
