Lost 4th and 9th gears

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Barricade0516, Jul 25, 2022.

  1. Jul 25, 2022 #1
    Barricade0516

    Barricade0516 Bobtail Member

    1
    0
    Jul 25, 2022
    0
    I was pulling a long grade in massachussets with 45600 lbs in box in 9th gear all of a sudden i felt/heard a bang and i lost 9th gear shifted to 8th finished climb pulled over and have ever gear but 4th and 9th.. please help give me an idea what to check before replacing trans any ideas what may have broke .. I b/t home skippng 4th and 9th and it seems fine .. i can sit at idol push shifter into 4th gear and dont engage.

    Barricade0516, Jul 25, 2022
    Barricade0516, Jul 25, 2022
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Jul 25, 2022 #2
    AModelCat

    AModelCat Road Train Member

    29,222
    159,385
    Jul 7, 2015
    Canuckistan
    0
    Most likely sheared the teeth off the inside of the input drive gear/damaged the front shift collar.

    AModelCat, Jul 25, 2022
    AModelCat, Jul 25, 2022
    #2
    cke, W923 and Magoo1968 Thank this.
  4. Jul 25, 2022 #3
    wore out

    wore out Numbered Classic

    15,988
    193,579
    Jun 5, 2013
    CHASIN THE DEVIL'S HERD
    0
    It’s definitely a replace or repair trans issue

    wore out, Jul 25, 2022
    wore out, Jul 25, 2022
    #3
    cke, Bean Jr., W923 and 1 other person Thank this.
  5. Jul 25, 2022 #4
    W923

    W923 Road Train Member

    1,345
    4,101
    Feb 28, 2022
    0
    sounds like you might have a case of this lol
    Although this sounded like a hundred niglets with hammers trying to escape
    I am sure your going to be pulling that transmission
    Depending on how many pieces were made it might be relatively cheap to fix

    W923, Jul 25, 2022
    W923, Jul 25, 2022
    #4
    Bean Jr. Thanks this.
  7. Jul 25, 2022 #5
    Lazer

    Lazer Road Train Member

    1,791
    2,850
    Jan 22, 2017
    0
    Is this a Road Ranger?
    We have a Columbia with the same issue, what ever happened, it was years ago according to service records. We just learned to work around it.

    Lazer, Jul 25, 2022
    Lazer, Jul 25, 2022
    #5
  8. Jul 25, 2022 #6
    W923

    W923 Road Train Member

    1,345
    4,101
    Feb 28, 2022
    0

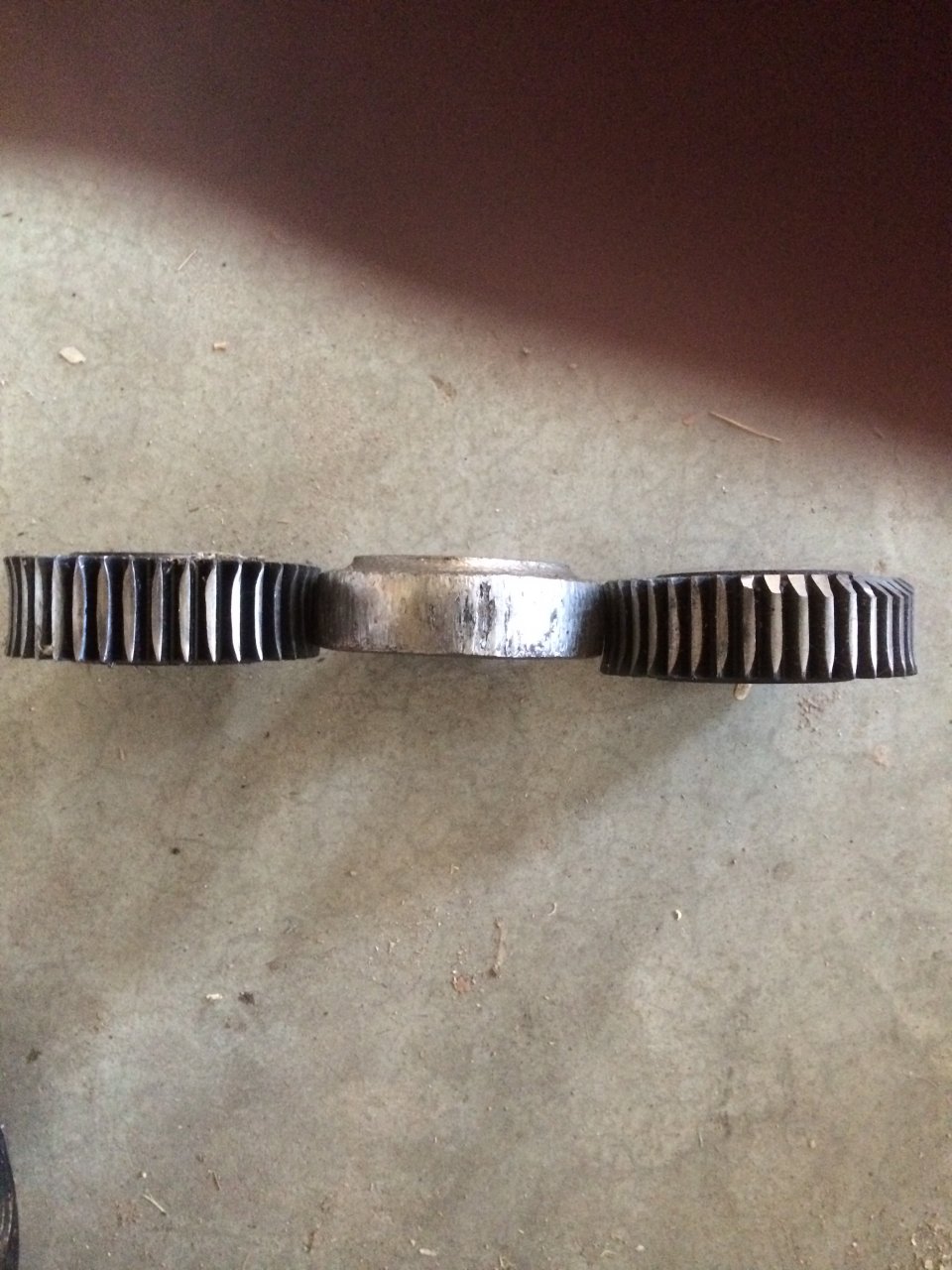

    My pictures were from a rt6610 road ranger
    Even if the op has a merritor there’s very little difference in design

    W923, Jul 25, 2022
    W923, Jul 25, 2022
    #6
