Manual sliding 5th wheel ?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Brandon0928, Aug 16, 2022.

  1. Brandon0928

    Brandon0928 Light Load Member

    50
    39
    May 14, 2022
    0

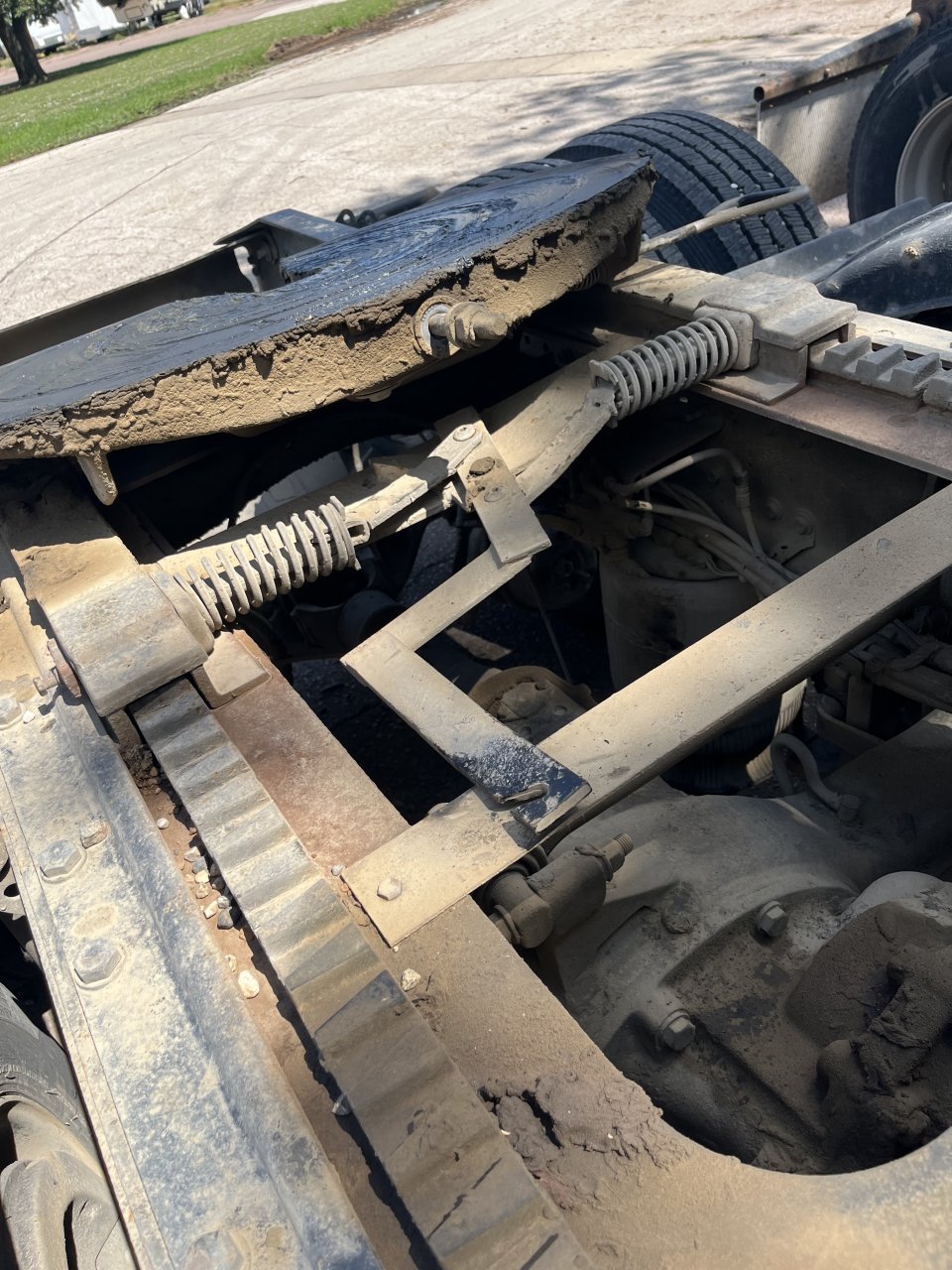

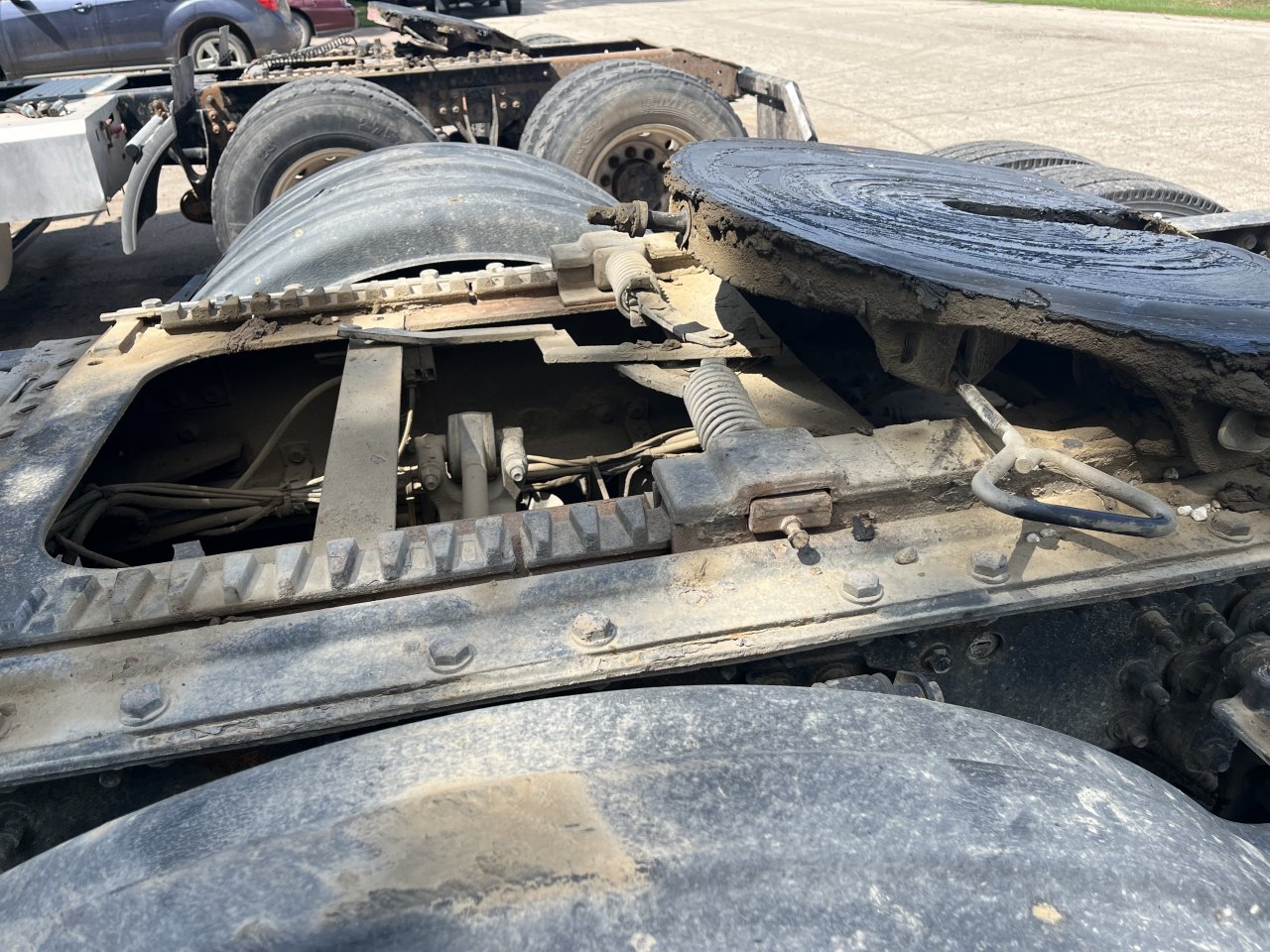

    I’ve never seen a 5th wheel like this before. Have only ever seen air compressed ones. Is this a manual one or is there just something missing ? How do I get this sucker to slide forward ??


    Attached Files:

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. wichris

    wichris Road Train Member

    3,186
    4,925
    Jan 17, 2011
    0
  4. Brandon0928

    Brandon0928 Light Load Member

    50
    39
    May 14, 2022
    0
    I tried over and over . Will have to try to get someone’s help this weekend . Just never seen a “manual” one before

  5. bad-luck

    bad-luck Road Train Member

    2,473
    4,216
    Nov 16, 2013
    Baltimore, Maryland
    0
    It doesn't look like a manual. It looks like it had a air cylinder on it at one time and it was removed.

  6. Brandon0928

    Brandon0928 Light Load Member

    50
    39
    May 14, 2022
    0
    That’s what I thought but the truck doesn’t have a filth wheel switch inside of it

  7. Val_Caldera

    Val_Caldera Road Train Member

    1,475
    4,457
    Apr 2, 2021
    TARHEEL
    0
    WELCOME TO TTR!!

    I've driven a large amount of Local and Road Trucks with Manual Release and a few Trucks with Air Release.
    I preferred the Air over Manual yet they both can be buggered even though the "release" is open.
    Looks like a job for a certified (or certifiable) Wrench.

    Many Drivers negate Lubing The Slides, yet 5th wheels seemingly dripping Lube.

    >>there may be a work around yet I know nothing<<

  8. North Pole Nightmare

    North Pole Nightmare Light Load Member

    194
    327
    Dec 15, 2021
    0
    I would wash the dirt and gravel out of the slide area then soak the locks with PB Blaster,tap on the top of the locks with a hammer lightly.Might free it up.

  9. bad-luck

    bad-luck Road Train Member

    2,473
    4,216
    Nov 16, 2013
    Baltimore, Maryland
    0
    I probably wasn't the original 5th wheel

  10. Catmando

    Catmando Road Train Member

    3,474
    15,152
    Mar 15, 2021
    Iowa
    0
    Did you stop to think that maybe that fifh wheel was on another truck 1st and it was a air release but then put on that truck at some point ? And they had to convert it to a manual slide because the truck was not set up for a air slide fifth wheel ? That's why there's no air release switch in the cab .. ??
    Not every fifth wheel is married to 1 truck forever
    That manual release lever looks like it was a after thought

  11. SmallPackage

    SmallPackage Road Train Member

    3,552
    10,530
    Dec 20, 2019
    Marion Texas
    0
    That is a real manual release. They came with a special rod to use. The notch is there to put a rod with a hook on end to lock it open. Designed that way to make it easier to grab when trailer is on it and in way. There should be a 1”hole or welded on tab somewhere on opposite side for the other end of rod to hold on to.
    Lots of guys don’t know or remember that they were manual long before they had invented release cylinders. Trucks that may move the wheel a handful of times in its lifetime can still have them. Makes more sense when the cylinders just sit and collect dirt or the plastic hose rots and breaks, and they will always leak and not work the one time you do need it.
