Manual sliding 5th wheel ?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Brandon0928, Aug 16, 2022.

  1. Arctic_fox

    Arctic_fox Road Train Member

    1,725
    5,883
    Sep 16, 2016
    0
    Yup my rig is on its now 3rd since i got it. The factory 5th wheel broke off at the frame shortly after i bought it due to improper installation and so badly mangled it it was unsalvageable. So i had to get a salavged one that didnt quite work and modify the hell out of it TO work to limp me along a few months till i could afford a better remanned one.

    Not unsusual to see older rigs with a diffrent 5th wheel then factory thats been modded to work if they cant find the correct parts.

    Brandon0928 and Catmando Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. SmallPackage

    SmallPackage Road Train Member

    3,608
    10,753
    Dec 20, 2019
    Marion Texas
    0

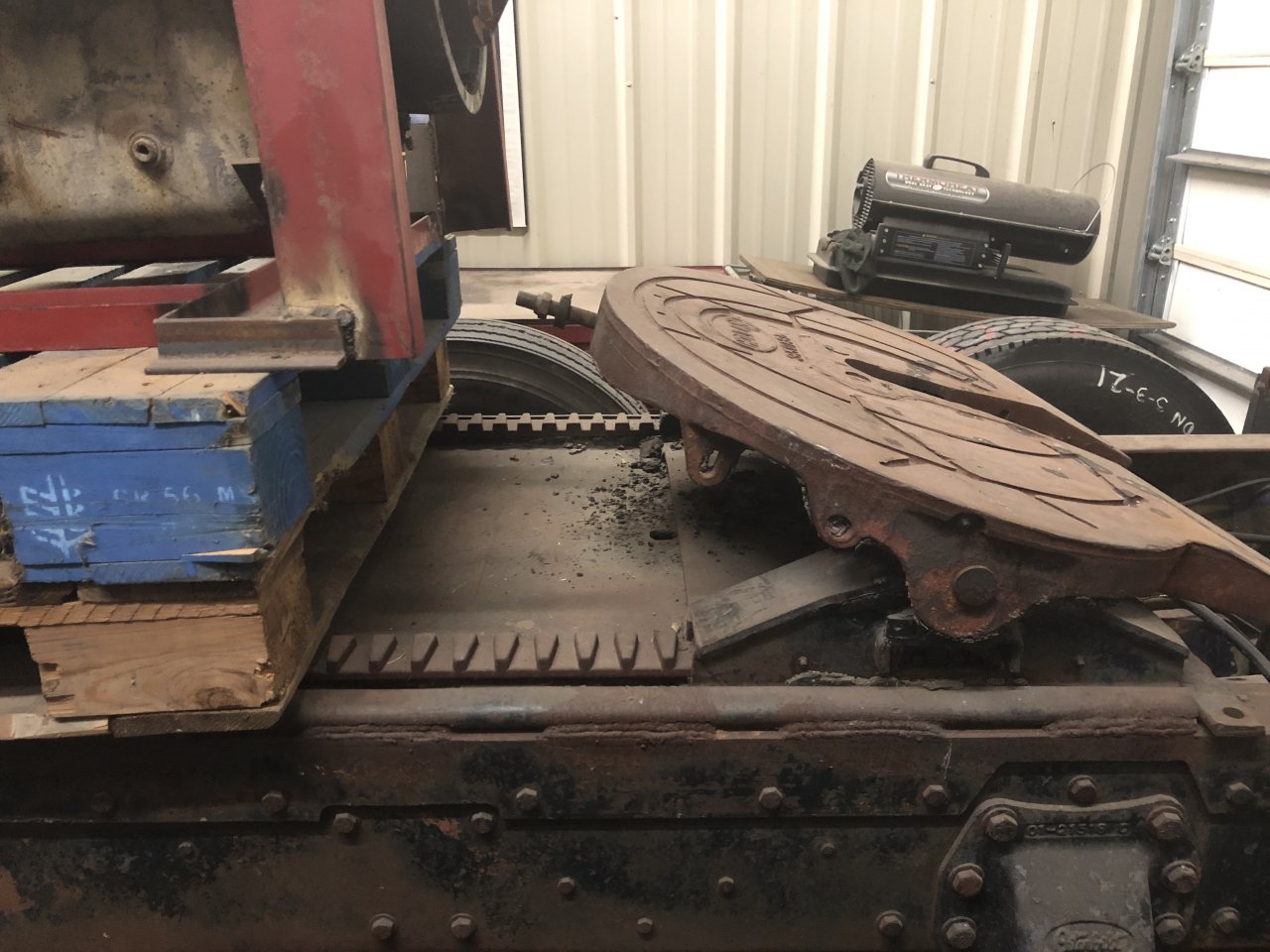

    this is the original Holland manual release wheel and slider plate on my ‘73 352. The older ones had a solid plate on them. The release lever was “borrowed” for another truck years ago. 2BC9AABD-02A3-46D0-ABCE-21D36DB232F7.jpeg I have a pallet with the engine and stand sitting on it so the pic came out dark but this is the tab for the holding rod.

    Big Road Skateboard Thanks this.
  4. SmallPackage

    SmallPackage Road Train Member

    3,608
    10,753
    Dec 20, 2019
    Marion Texas
    0
    A friend of mine has an old manual slide Fontaine on his ‘75 White-Western Star. That thing is a pain. You have to pull each lock out from the side individually by a bolted on hook and tang. To release You pull out and turn to hold lock in place. Then do your slide circus act and hope it stops in center of tooth otherwise it wont lock. Get it close and rock it in place. Needless to say he hasn’t moved it in 46 years. Lol!

  5. Brandon0928

    Brandon0928 Light Load Member

    154
    85
    May 14, 2022
    0
    That’s what I was thinking but I had never seen a manual one before in my life. Been at it for 10 years and that was a first. I do wonder if it’s the original 5th wheel . Truck doesn’t have a switch to slide the 5th wheel so I could see it being original

  6. Brandon0928

    Brandon0928 Light Load Member

    154
    85
    May 14, 2022
    0
    Once I get this moved to where I want it it’ll be staying there till I retire this truck! lol . 10 years and I’ve never had to move my 5th wheel. Bought this truck and it’s slid all the way back. I never seen someone run there 5th wheel all the way back like this one is

  7. SmallPackage

    SmallPackage Road Train Member

    3,608
    10,753
    Dec 20, 2019
    Marion Texas
    0
    I pull a few antique deep kingpin trailers that have shallow landing gear so my 5 th’s are way back. Almost dead center above rear drive. If not i’m in the legs at hard turns. Had to actually move the whole slider plate back 6” and re bolt it down on my ‘67 to get the clearance I needed just for one flatbed I
    have.
