Need help from any DD16 guru's.

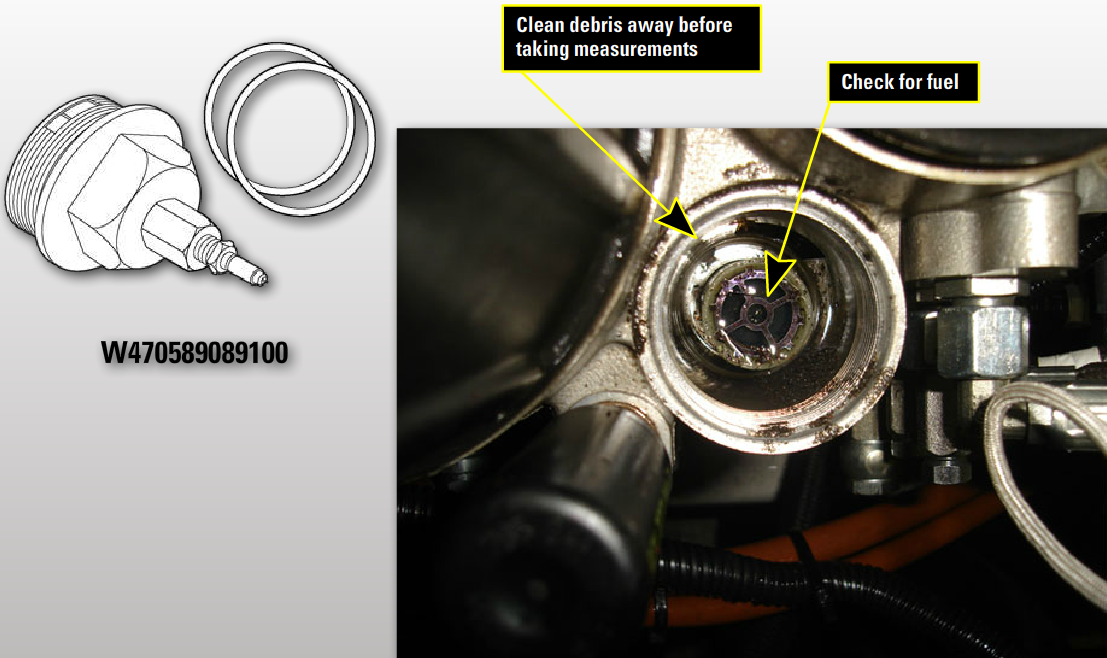

This should be right next to your primer handle would be your prefilter.

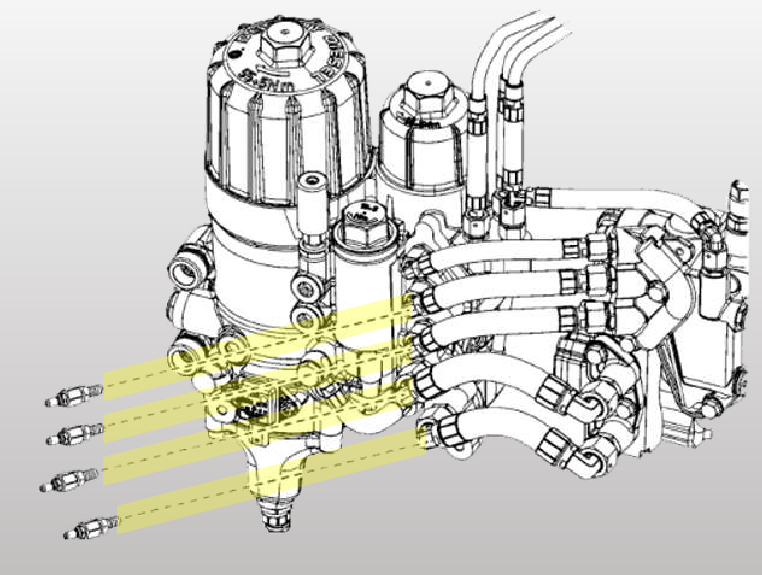

Your service ports should be here depending on what type of fuel module you have:



Checked it. Seems kind of dirty. So I will clean it. But I see fuel filled up to the top at the center as described in the picture. As for priming points. I don't have those. They are just bolts. The hole at the bottom of the filter housing seems to not be plugged and looks free of debris.
I'll try to send a picture once I downsize it.



I proceeded to clean housing, ensure the port at the bottom was not clogged and put it back together. Primed the living s#@& out of it. Still nothing. I thought that housing should be completely full of fuel when I take the cover off?



You need a fuel primer for this and even then its a ##### to do. even though you are seeing fuel to injectors doesnt mean you have proper pressure all you need is a fuel primer the easy way i have done this is take a yard sprayer for weeds and adapt a compucheck fitting at the end fill up the sprayer with fuel and just start pumping. it will work not perfect like the actual fuel primer tool that i have in the shop but will get job done.



Lol I'll see what I can come up with. Simply for the adapter to connect to the primer port, I'll have to run to Freightliner for it. (100 miles away). So I might as well get a legit primer kit so I know it's done right for sure. I don't mind buying tools. They never go bad.



true and you definately need this i can get you the tool number i dont think frl will have it in stock since it's not a freightliner tool but dd i will find part numeber for you i dont know if frl will even have the compu check fitting.
Kent-Moore Coupler Adapter Fitting Part# J-47912-QC KENT MOORE DIESEL FUEL PRIMER PART NUMBER J-47912 got mine from ebay set me back about 250 with shipping and all .



Fuel System Primer Pump



Oh wow. Hahaha. It really is a big sprayer. Do you by chance know where I can get just the connector? I called freightliner and other shops in town and they don't have it so I might have to revert to the interwebs for this one.
Does the connector look like a quick connect that's maybe... Half inch in diameter? Because that's what I have on my housing.



Oh my bad. Didnt see your first message on the adapter! Haha. Thank you so much!



I'm definitely gonna save some money and build my own. I can get a bug sprayer and a hose barb/threaded adapter at my local hardware store. So I'm gonna order the Kent Moore fitting asap. Again, I can't thank you enough. I will get back on here and let you know the verdict.
You said about 7gallons of fuel?
