Need help Reading a wiring diagram

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by truckerbangin, Jan 22, 2022.

  1. truckerbangin

    truckerbangin Light Load Member

    240
    37
    Jan 22, 2013
    0

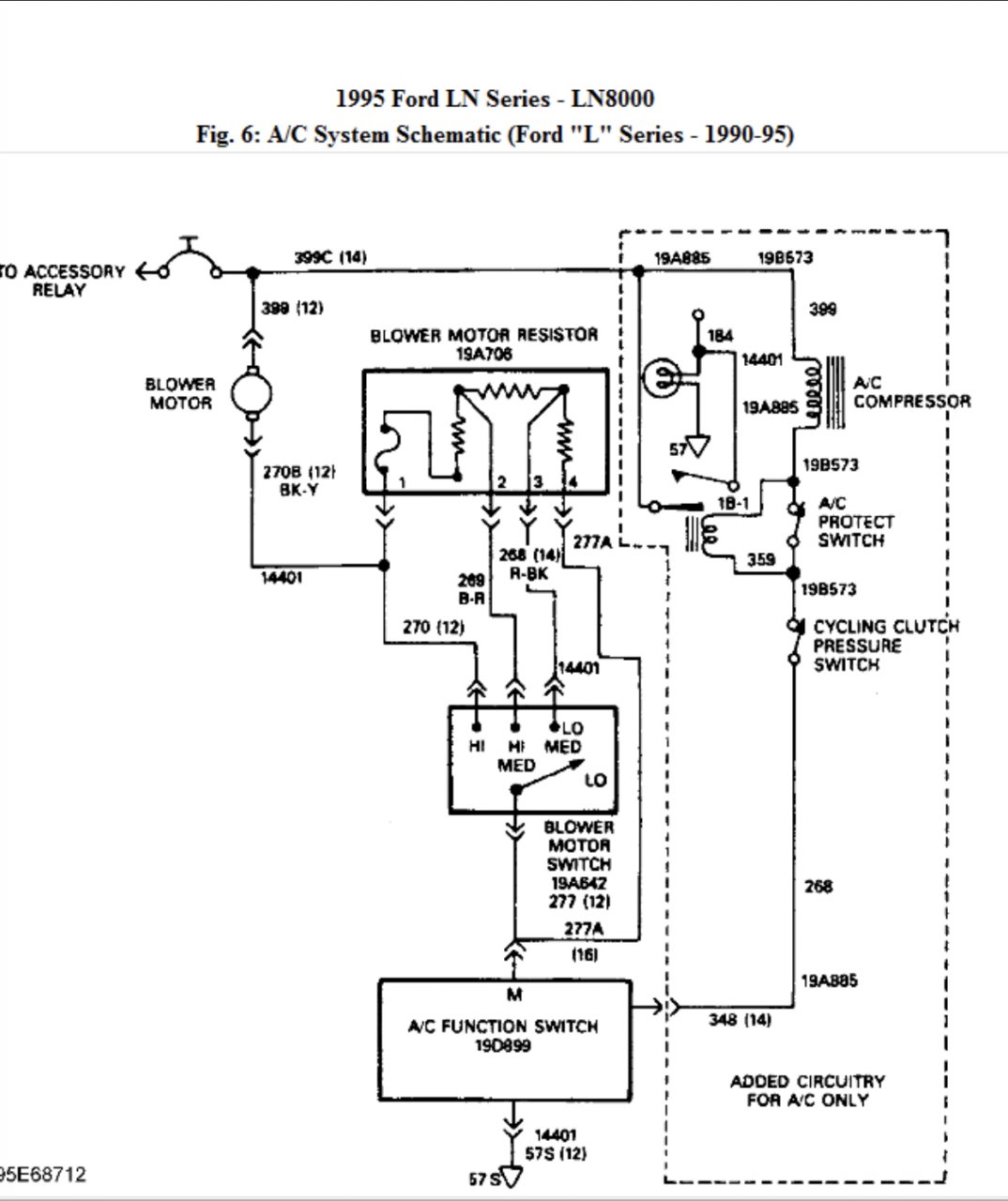

    Need help understanding this attached wiring diagram for a ford l8000 ac system 8A817953-C671-4632-853B-CA99E57CE769.jpeg

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Snailexpress

    Snailexpress Road Train Member

    2,504
    5,742
    Apr 28, 2014
    Rocky
    0
    What exactly your question is?

    Big Road Skateboard Thanks this.
  4. Ridgeline

    Ridgeline Road Train Member

    18,310
    80,429
    Dec 18, 2011
    Michigan
    0
  5. truckerbangin

    truckerbangin Light Load Member

    240
    37
    Jan 22, 2013
    0
    Trying to figure out what 12v and what’s ground.

  6. Six9GS

    Six9GS Road Train Member

    1,283
    3,112
    Dec 3, 2012
    Yuma, AZ
    0
    That's actually a schematic and not a wiring diagram. There is an important difference. Schematic shows how the electrical system works from an electronics perspective, but gives no real info about the wiring itself. A wiring diagram would show such information as what wires are routed where, what connections they go through, the specific pins in that connection that they are and usually the color of the wire used. Some will even give the gage of the wire used.
    Schematics are focused on showing how all the electronics work together. Wiring diagram shows how it was physically made so you can trace things out. Trust me, as an electronics technician, it is quite difficult to understand how an electrical system works from a wiring diagram. Schematics are needed. But, if you're actually working on the thing, you also need that wiring diagram to find what you need. So, both are basically essential.
    My guess is your confusion is you need a wiring diagram more than you need just a schematic.
    I have no idea how to find the wiring diagram, but my guess is that's what you need to look for.

    clausland and Hulld Thank this.
  7. Six9GS

    Six9GS Road Train Member

    1,283
    3,112
    Dec 3, 2012
    Yuma, AZ
    0
    Then12 volt comes in on the top left side where it says accessory relay. Those little upside down triangles are ground connections of some sort.

    truckerbangin Thanks this.
  8. truckerbangin

    truckerbangin Light Load Member

    240
    37
    Jan 22, 2013
    0
    So the ac control module and fan switch are ground operated correct?

  9. Snailexpress

    Snailexpress Road Train Member

    2,504
    5,742
    Apr 28, 2014
    Rocky
    0
    Yes it's ground operated

    truckerbangin Thanks this.
  10. BoxCarKidd

    BoxCarKidd Road Train Member

    3,738
    5,231
    Aug 26, 2014
    0
    Yes. I just do not remember that set up in Fords. Lots of KWs were that way.

  11. truckerbangin

    truckerbangin Light Load Member

    240
    37
    Jan 22, 2013
    0
    Thanks very much, as long as I’ve been doing this electrical makes me feel like a beginner every time. I understand it now, turns out I had a bad accessory relay under the dash

    Snailexpress, BoxCarKidd and Oxbow Thank this.
