New AC bracket for Series 60

All you need to tell parts people is if your compressor is pad mount or block mounted.



Take a pic of the bolt heads.



Different style compressors yes but they all bolt through the top of compressor or the front of compressor.
Side note the new style compressors are junk, even if brand new built. They only last a year or two. The old piston style compressors lasted a million miles.
Another side not the old style alternator can lock up. The new compact style Delco are better.
Also check your starter it my be a Chinese piece of crap that is mostly plastic case if Fitzgerald built your glider engine.



you should have top or bottom style.

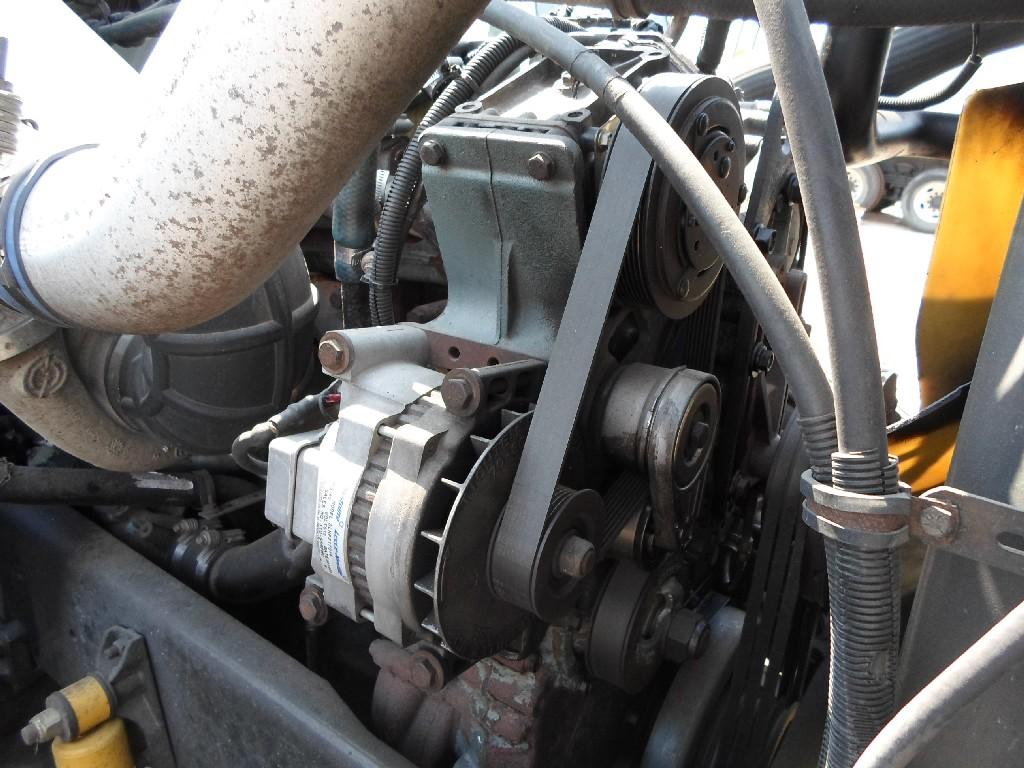

So I think you have the older style compressor mounting. Called block mount I think.
I believe the compressor is called a York compressor, or kysor?
The newer ones are sanden mostly the suck.



My friend has a 2001 Freightliner FLD120 with a 12.7 Series 60 that had a York to Sanden conversion kit installed a month ago.

It was done using a Mastercool Parts branded York to a Sanden A/C compressor conversion bracket kit and he couldn't be happier, (especially after going through four York compressors that burned up in the last five years.)

It cost him $530 shipped which included a genuine Sanden A/C compressor, (not a Made in China copy) a York to Sanden compressor conversion bracket, all mounting hardware and wiring harness adapter.

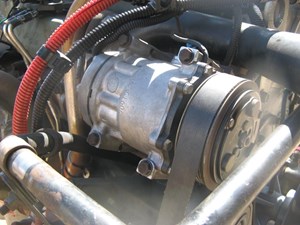

Also Sanden compressors are the best out there compared to a York.

The Sanden compressor I have on my Volvo VNL has been on there for 1O years, and it's still going strong.

When you do your conversion, it's strongly recommended to replace your receiver/dryer and orifice tube/expansion valve to avoid any warranty issues later.

Also with this kit, you will use the original A/C pressure lines, no need to change them or make up new lines.

You will need to call them up before ordering, as you will need to take a picture of your current setup and email it to them so they can match the right sized compressor and pulley to your application.

20-98080 - MastercoolParts.com
