New or old asked again

Wow, you’re on a roll lately! Congrats.



That’s really awesome to have both properties.

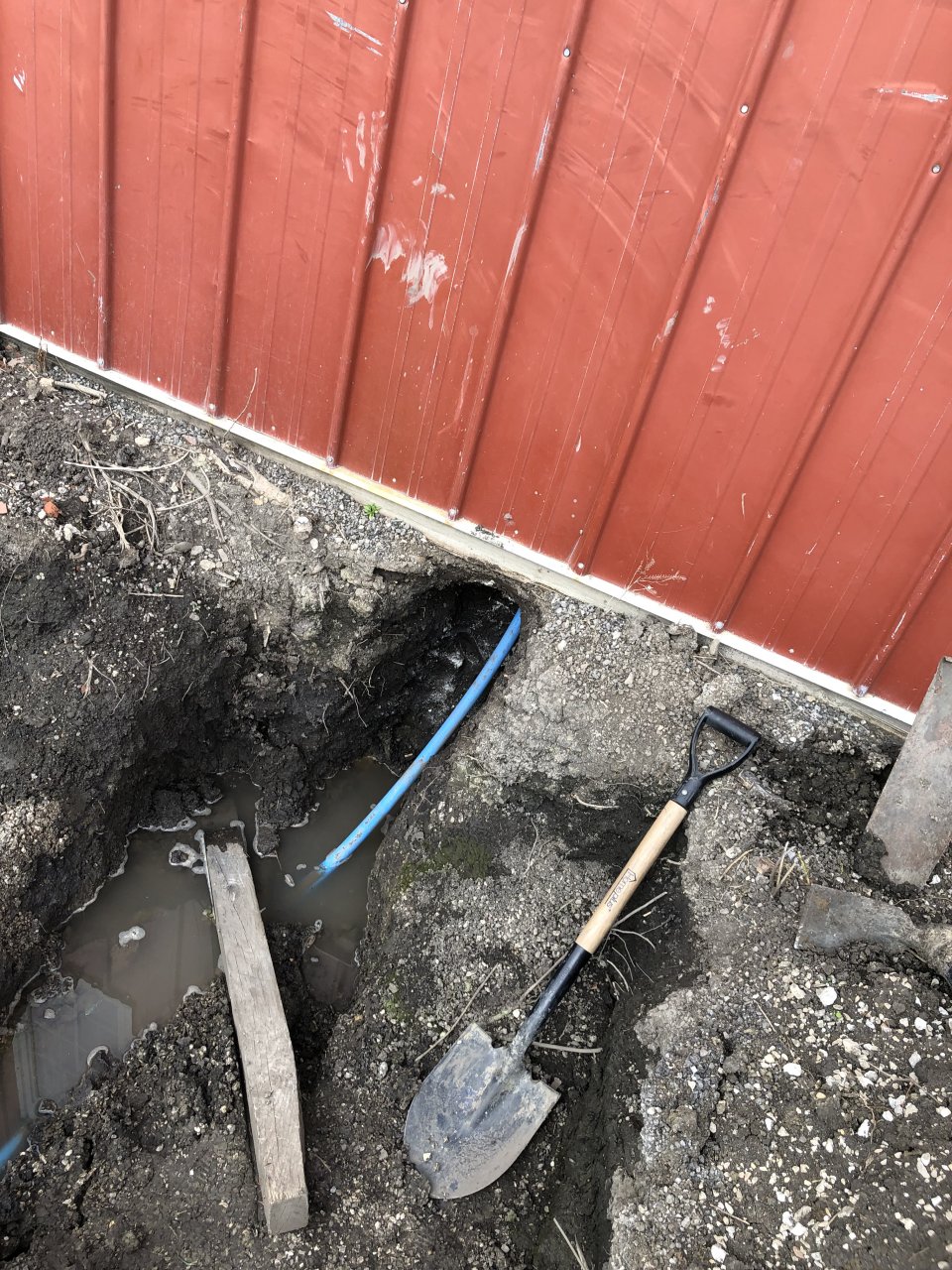

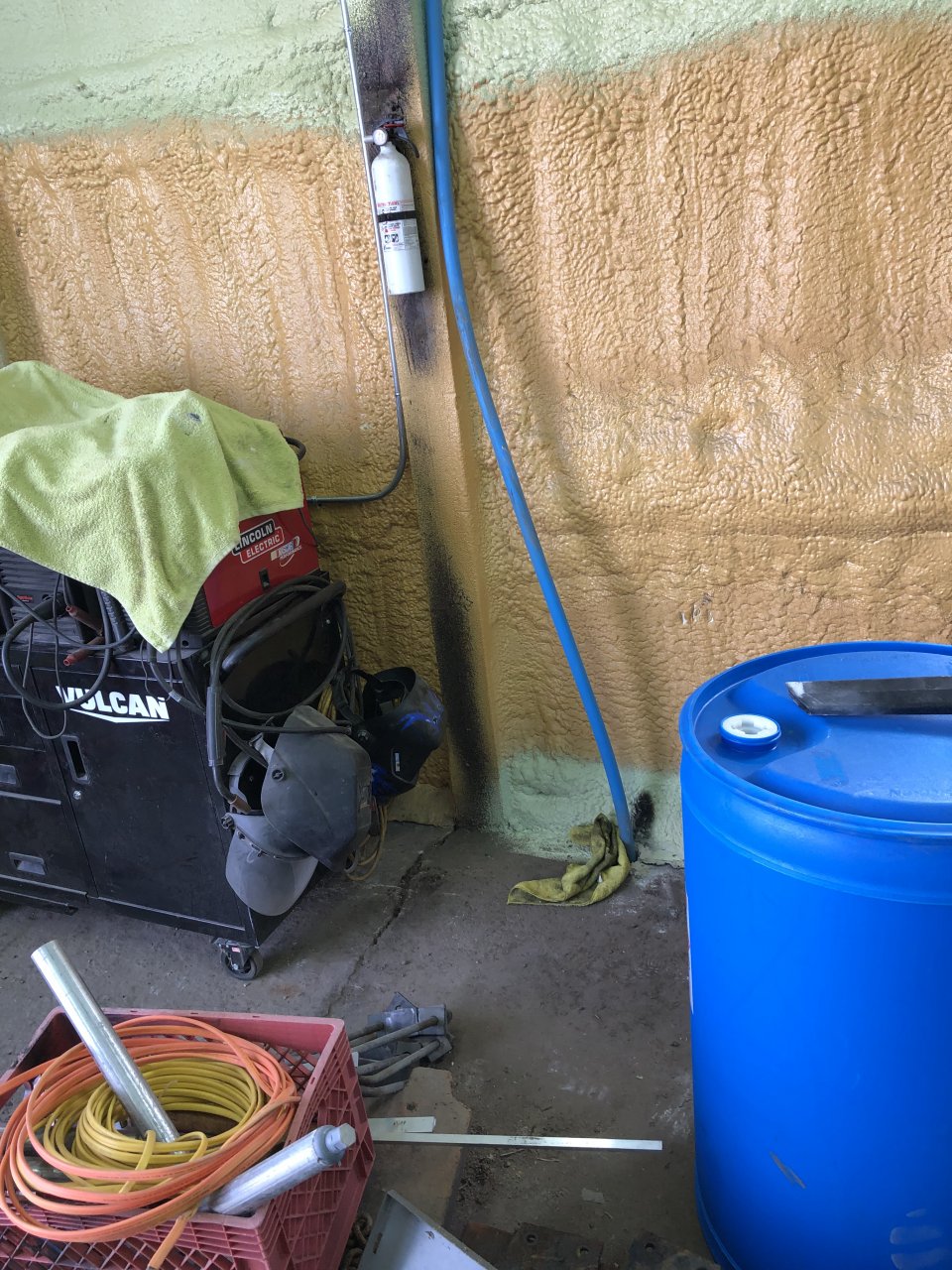

How deep is that water line? Looks like it will freeze this winter where it goes into the shop.



In Iowa it has to be a minimum of 48” as frost typically go’s to 42”.

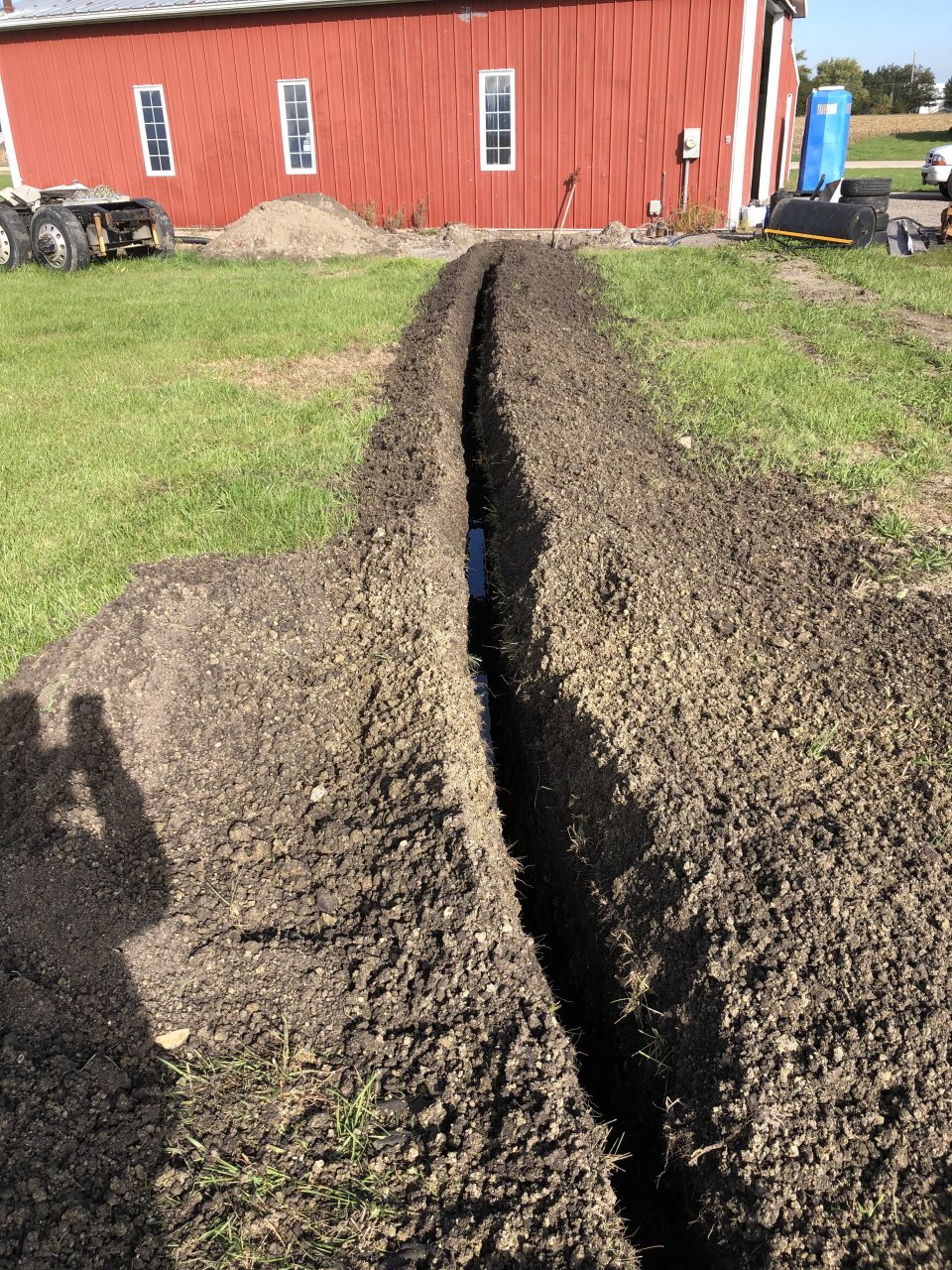

When the city ran my shutoff this spring they put it at 5’ and I excavated from there to where my water comes into the shop at 5’ as well.



All of mine are somewhere between 5-6' depending on when they were put in.

Edit: however I don't live in Illinois either and frost is different everywhere. Even within the same state.



Oh well, you’ll find out soon enough! Maybe put some insulation around where it comes in out of the dirt and into the building. If this is the only thing that goes wrong after all you’ve done this past year, I’d say your doing just fine.



If it's in a location in which there is no traffic on top of it you should be fine at 4'. Under a driveway traffic drives the frost down deep.

Probably too late, but a piece of blue board insulation over the portion that is shallow entering the building might have been enough to avoid problems there.

Either way, you have high quality poly pipe, so probably the worst that will happen is you won't have water in the shop for awhile, but you shouldn't have any damage as the expansion from freezing has a place to go that isn't frozen where the trench is deeper.

I think it's safe to say many of us are envious of of your shop and adjoining property. Congratulations!
