No brake light

Discussion in 'Freightliner Forum' started by Dorego401, Oct 11, 2020.

  1. Dorego401

    Dorego401 Bobtail Member

    20
    2
    Oct 11, 2020
    0

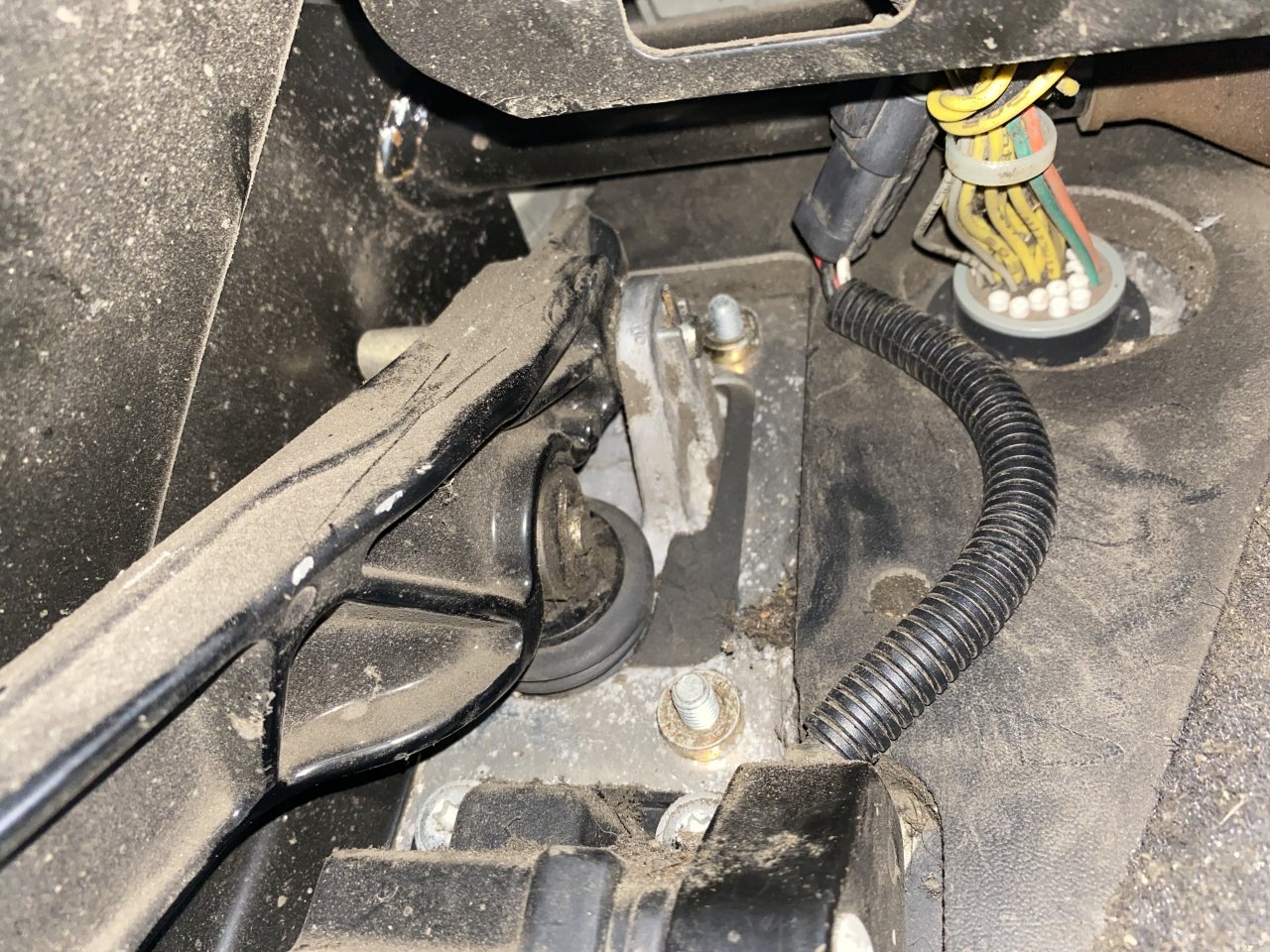

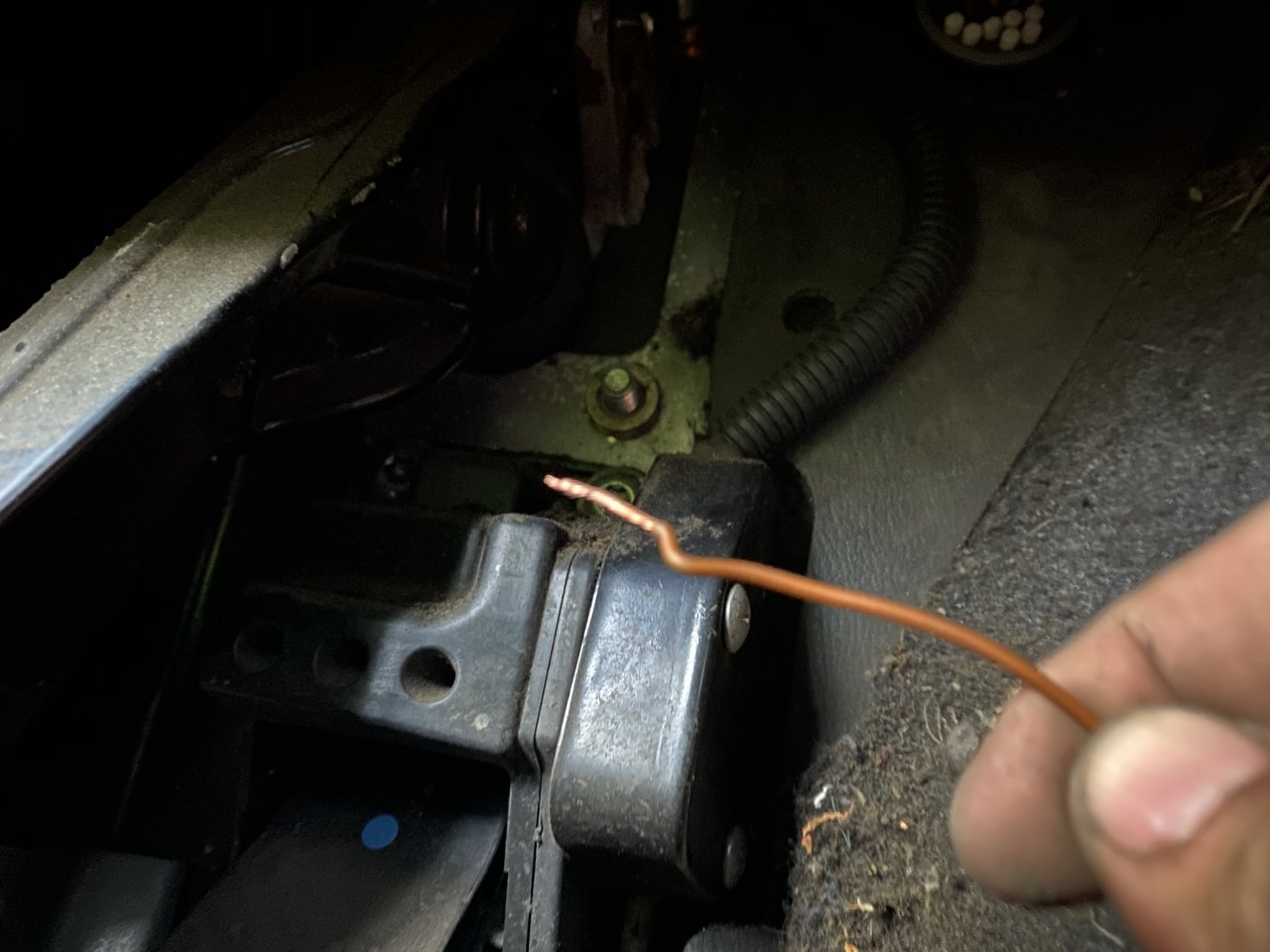

    2006 Columbia brake lights not working . Tested no voltage at taillights with brake pedal engaged . I’m under the brake pedal and I see this wire hanging . Can’t find the brake switch ?? Power at brake fuse 8A0144BB-39C5-4869-8B48-5E950895B71B.jpeg 49EB3489-3BF6-491B-8574-C46327B979B5.jpeg C1EF9DDF-82CD-4144-BE9D-A64B1C32C22A.jpeg

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Snailexpress

    Snailexpress Road Train Member

    2,331
    4,720
    Apr 28, 2014
    0
    Brake light switch usually air pressure switch. Somewhere under cover or dashboard.

    Rideandrepair Thanks this.
  4. FozzyNOK

    FozzyNOK Road Train Member

    1,864
    2,581
    Jul 18, 2007
    Oklahomistan
    0
    That's nothing that came from a factory with the end that jacked up.. stripped and twisted..

    Rideandrepair Thanks this.
  5. Dorego401

    Dorego401 Bobtail Member

    20
    2
    Oct 11, 2020
    0
    Still stuck on this . No power at pigtail after jumping all of these switch . Where should I go from here


    Attached Files:

  6. RocketyMan

    RocketyMan Medium Load Member

    442
    238
    Jun 5, 2015
    0
    I can find you some legitimate wiring with the last 6 of your vin.

  7. Dorego401

    Dorego401 Bobtail Member

    20
    2
    Oct 11, 2020
    0
    W25487

  8. RocketyMan

    RocketyMan Medium Load Member

    442
    238
    Jun 5, 2015
    0
    So one thing to note in your T/S is that the SERVICE BRAKE pedal has no switch on it--it is an air pressure switch on the air manifold denoted as STOP LT SW below. It's circuit is denoted as 36 & 36B (A).



    I would first check out the switch itself and the associated circuits.
    Then you need to check the PDM.


    Here is where the switch is located--on the bottom right there you see the harness.


    Here's you PDM:


    Find the one that says STOP LT:

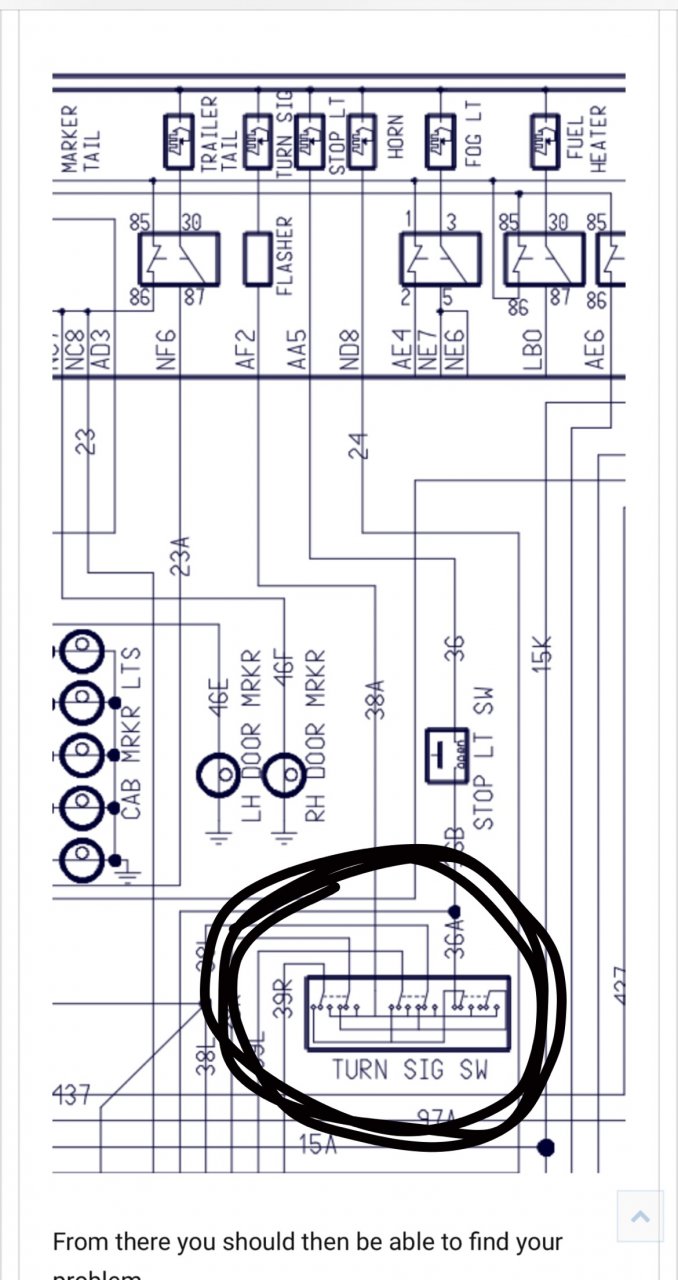

    This circuit then goes to your turn sig switch from the PDM that then controls your 39R and 39L (which is your combination lamps):


    From there you should then be able to find your problem.

    Hopefully that makes sense and then assists you in your trouble-shooting. If not, then I would take your truck to a certified FTL dealer to fix.

    daf105paccar and QUALITYTRUCK Thank this.
  9. Dorego401

    Dorego401 Bobtail Member

    20
    2
    Oct 11, 2020
    0
    Where could this switch be found? Is It at the actual turn signal itself

  10. RocketyMan

    RocketyMan Medium Load Member

    442
    238
    Jun 5, 2015
    0
    QUALITYTRUCK Thanks this.
