Oil light

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Perez700r, Mar 3, 2020.

Page 4 of 6
  1. Mar 5, 2020 #31
    Perez700r

    Perez700r Bobtail Member

    34
    8
    Feb 25, 2020
    0
    This is the oil pressure and code when the oil light comes on the rpm is at 1700


    Attached Files:

    Perez700r, Mar 5, 2020
    Perez700r, Mar 5, 2020
    #31
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Mar 5, 2020 #32
    Perez700r

    Perez700r Bobtail Member

    34
    8
    Feb 25, 2020
    0
    This is what the dash gauge reads when the light comes on


    Attached Files:

    Perez700r, Mar 5, 2020
    Perez700r, Mar 5, 2020
    #32
  4. Mar 5, 2020 #33
    spsauerland

    spsauerland Road Train Member

    4,296
    10,891
    May 31, 2010
    West Harrison, In
    0
    If you look @ the chart and look at your pressure on scan tool, you have low oil pressure.

    spsauerland, Mar 5, 2020
    spsauerland, Mar 5, 2020
    #33
  5. Mar 5, 2020 #34
    spsauerland

    spsauerland Road Train Member

    4,296
    10,891
    May 31, 2010
    West Harrison, In
    0

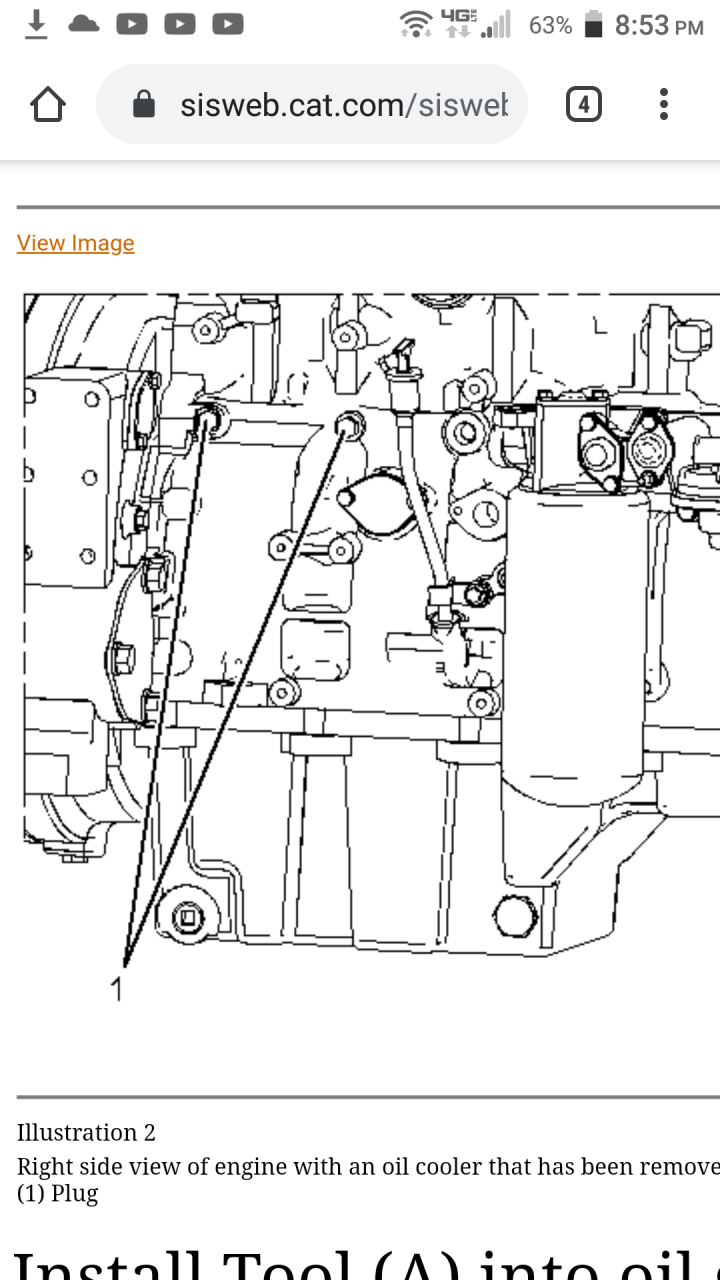

    Check from here with an accurate gauge and hose assembly.

    spsauerland, Mar 5, 2020
    spsauerland, Mar 5, 2020
    #34
  7. Mar 5, 2020 #35
    Perez700r

    Perez700r Bobtail Member

    34
    8
    Feb 25, 2020
    0
    That isn’t on a c13 is it? Where would be the heat spot to check on a c13

    Perez700r, Mar 5, 2020
    Perez700r, Mar 5, 2020
    #35
  8. Mar 5, 2020 #36
    spsauerland

    spsauerland Road Train Member

    4,296
    10,891
    May 31, 2010
    West Harrison, In
    0
    The pic is a C-12, from the C13 manual though and location the same! Your existing gauge hose is probably in one of the oil gallery plugs.

    spsauerland, Mar 5, 2020
    spsauerland, Mar 5, 2020
    #36
  9. Mar 5, 2020 #37
    Perez700r

    Perez700r Bobtail Member

    34
    8
    Feb 25, 2020
    0
    Ok you wouldn’t happen to know the exact adapter I would need to thread in there?

    Perez700r, Mar 5, 2020
    Perez700r, Mar 5, 2020
    #37
  10. Mar 6, 2020 #38
    spsauerland

    spsauerland Road Train Member

    4,296
    10,891
    May 31, 2010
    West Harrison, In
    0
    The plugs are -6 SAE STOR, some also call it ORB. Any hydraulic place should have what you need.

    spsauerland, Mar 6, 2020
    spsauerland, Mar 6, 2020
    #38
  11. Mar 6, 2020 #39
    Perez700r

    Perez700r Bobtail Member

    34
    8
    Feb 25, 2020
    0
    Thanks I’ll get back too you after I check the oil pressure if it does turn out low do you think it will be the oil pump or the oil filter base ?

    Perez700r, Mar 6, 2020
    Perez700r, Mar 6, 2020
    #39
  12. Mar 6, 2020 #40
    spsauerland

    spsauerland Road Train Member

    4,296
    10,891
    May 31, 2010
    West Harrison, In
    0
    Something is base, bearing wear, VVA leak, could be number of things. What is your oil drain intervals. Bossman tried 25,000 miles on the C13, but the 1R-1808 tended to plug around 23,000 miles. We went back to 20,000 on tractors.

    spsauerland, Mar 6, 2020
    spsauerland, Mar 6, 2020
    #40
