    Outer wheel seal axle nuts, looking for torque spec (front drive axle)
    Truck has 7 of the 8 nuts loose with my fingers and was leaking hub oil. Whats the torque spec on those, i can find hub torque and lug nut torque spec everywhere, i just cant find the axle nut specs anywhere (i also might not have nomenclature correct)

    Thanks in advance

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Ridgeline

    Ridgeline Road Train Member

    20,660
    100,391
    Dec 18, 2011
    Michigan
    0

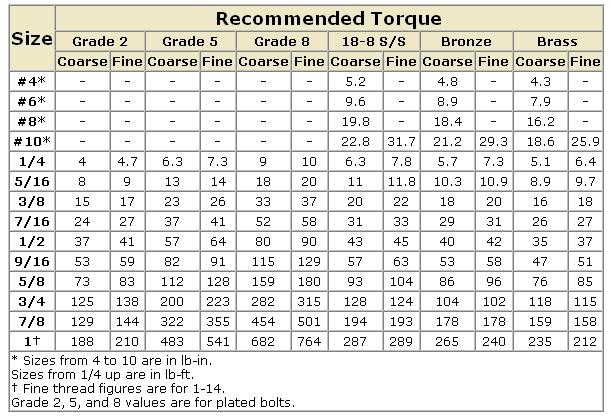

    This is for the bolt shaft size and it is a good guide


    skallagrime and tommymonza Thank this.
  4. Snailexpress

    Snailexpress Road Train Member

    2,653
    6,034
    Apr 28, 2014
    Rocky
    0
    Look on the driver door information about axle manufacturer and axle model. Go to manufacturer website for exact information.

    skallagrime Thanks this.
  5. Snailexpress

    Snailexpress Road Train Member

    2,653
    6,034
    Apr 28, 2014
    Rocky
    0
  6. skallagrime

    skallagrime Road Train Member

    3,553
    9,061
    Apr 10, 2012
    Indiana
    0
    Yeah, that would be ideal, but its completely worn away. That second one is the ticket.
    150-190.

    And yeah, seems my nomenclature wasnt getting me quite close enough

    Thanks

  7. Goodysnap

    Goodysnap Road Train Member

    3,492
    8,356
    Jul 12, 2017
    0
    185 ft lbs.

    Replace the locknuts. Nylock are one time use. If the studs come out of the hub, clean and dry, apply red loctite and double nut install them back in the hub.

    Torque in a star pattern just like a wheel.

    Clean and dry gasket, no sealant.

  8. MRMTRANS

    MRMTRANS Light Load Member

    240
    274
    Apr 28, 2015
    0
    Certainly go by the stud diameter for the axle, and torque on the high end of range. I am pretty sure they are 10.2 grade steel. I think you were asking about the wheel bearing/hub nut ("axle nut"), assuming you want to torque while the axle is out. I have always used Mike Beckett's ( from MD Alignment) procedure to torquing wheel bearings and never had a problem. MD Alignment: Bearing Adjustments -. This is a link to a video I have had for a decade that explains this procedure. I hope I don't have a problem with copy right infringement.

  9. MRMTRANS

    MRMTRANS Light Load Member

    240
    274
    Apr 28, 2015
    0
    BTW, I still reseat the old seal (200 lb-ft and rotate wheel).

  10. skallagrime

    skallagrime Road Train Member

    3,553
    9,061
    Apr 10, 2012
    Indiana
    0

    Those nuts were what i was asking about, not that specific axle or even this truck but same size.

    Got it done, filled and off to a good wash, we'll see what it looks like in a week

  11. 062

    062 Road Train Member

    5,839
    31,552
    Oct 20, 2013
    0
    That’s the axle flange

    skallagrime Thanks this.
