Peterbilt 579 wire question

Discussion in 'Ask An Owner Operator' started by GYPSY65, Apr 25, 2021.

Page 1 of 2
  1. Apr 25, 2021 #1
    GYPSY65

    GYPSY65 Road Train Member

    1,938
    5,218
    Nov 16, 2012
    SW FLA
    0
    I have a 579 and a Minimizer seat that needs power
    In my last truck I just added a new fuse and ran a wire back to the seat

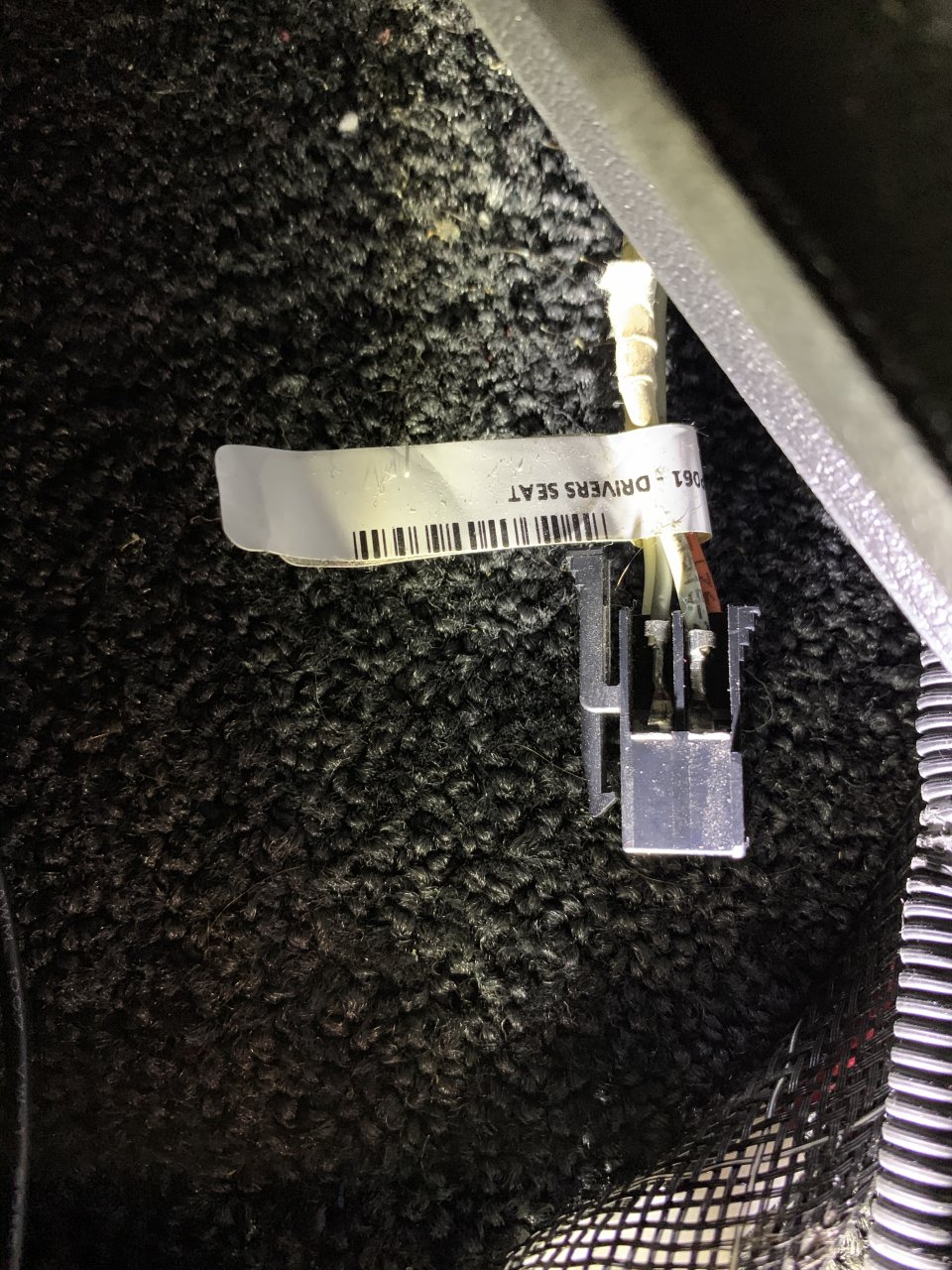

    I have this connection that’s already behind the seat and assume it should be hot or able to be but either I am not getting a good ground with my test light or there’s a fuse for it that needs to be installed
    Any ideas?


    GYPSY65, Apr 25, 2021
    GYPSY65, Apr 25, 2021
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Apr 25, 2021 #2
    062

    062 Road Train Member

    5,852
    31,732
    Oct 20, 2013
    0
    With all the computers in there now it may have to be turned on with a laptop.
    @pushbroom @Goodysnap

    062, Apr 25, 2021
    062, Apr 25, 2021
    #2
    GYPSY65 Thanks this.
  4. Apr 25, 2021 #3
    Long FLD

    Long FLD Road Train Member

    9,636
    37,484
    Mar 4, 2015
    0

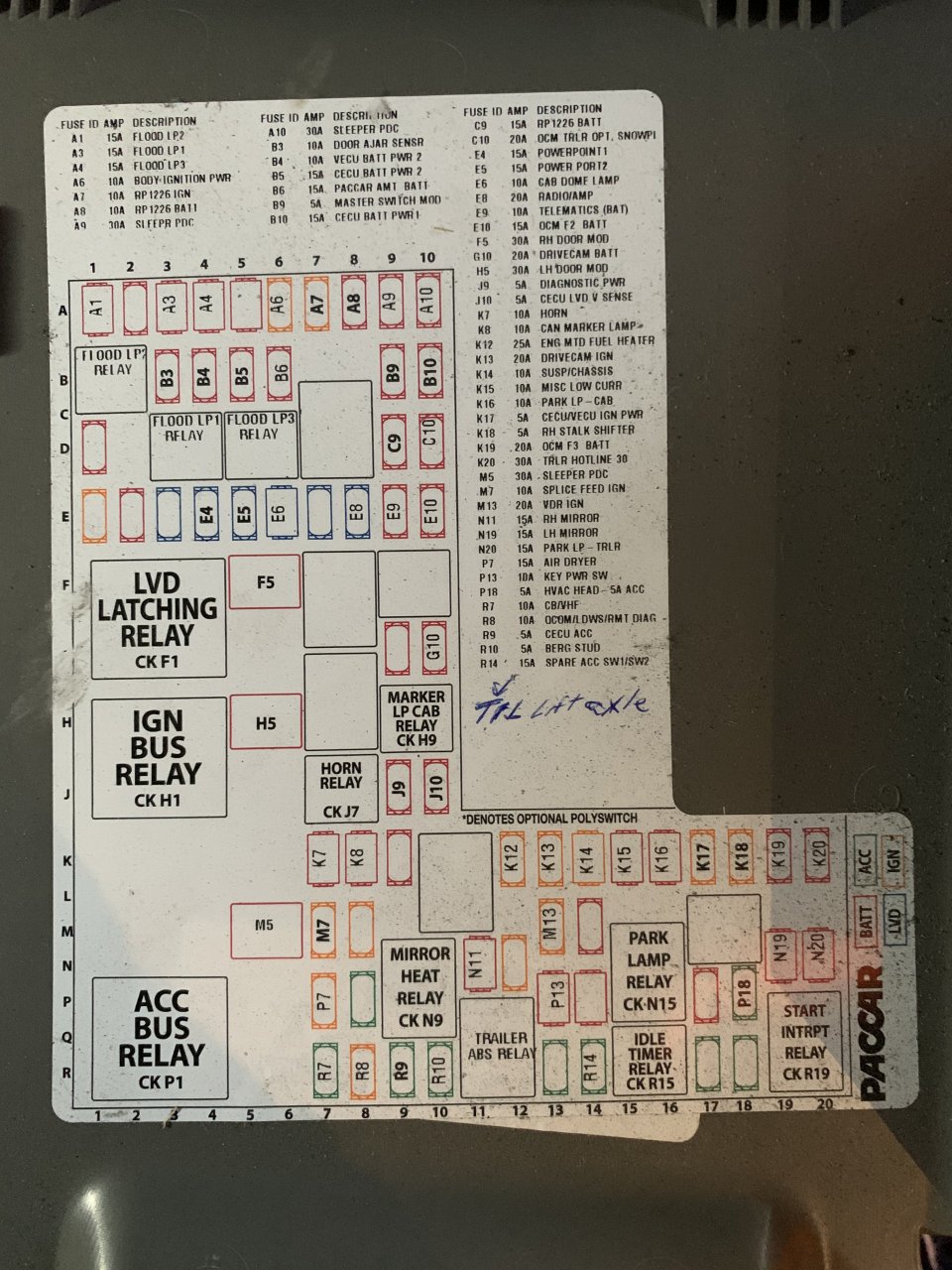

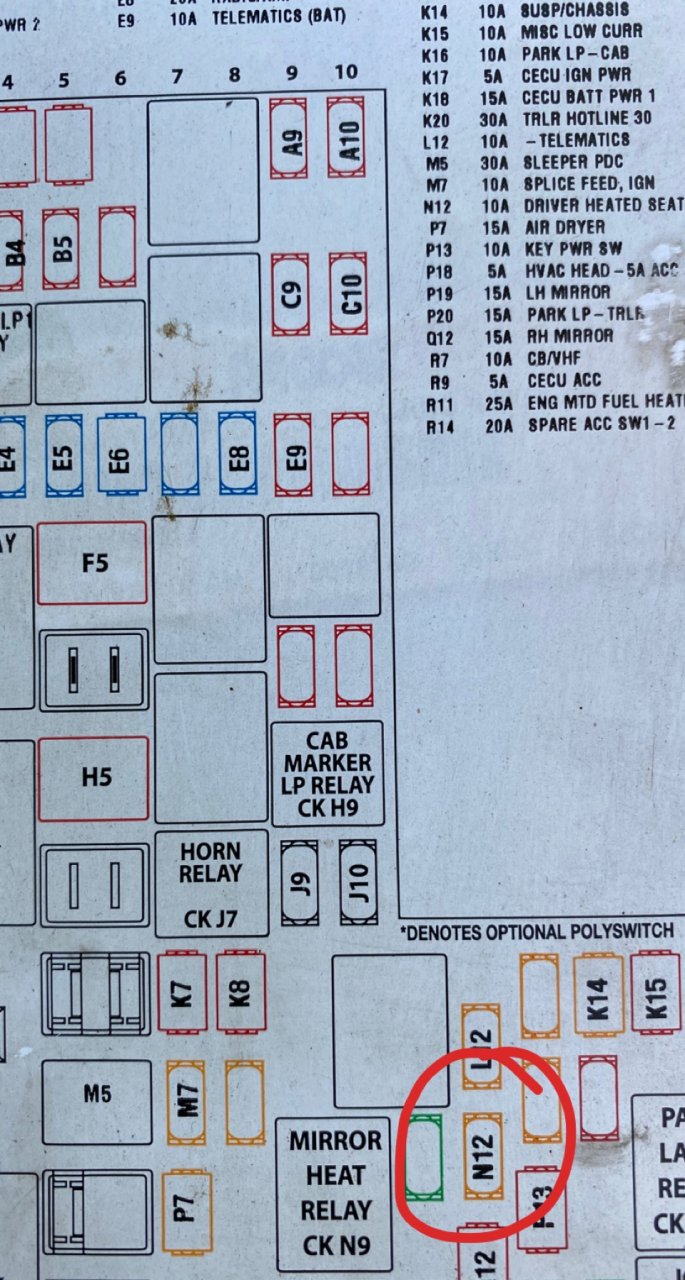

    I show a fuse for driver heated seat. N12


    Long FLD, Apr 25, 2021
    Long FLD, Apr 25, 2021
    #3
  5. Apr 25, 2021 #3
    Arctic_fox

    Arctic_fox Experienced mx13 execrator

    2,993
    12,964
    Sep 16, 2016
    0
    not to highjack the thread but @Long FLD any chance you could PM me a picture of your fuse cover if its a 17 579? More then 3/4th of the diagram in mine is missing....someone aprayed something all over it before i bought it and having an intact one would be useful.

    Arctic_fox, Apr 25, 2021
    Arctic_fox, Apr 25, 2021
    #3
  6. Apr 25, 2021 #4
    Long FLD

    Long FLD Road Train Member

    9,636
    37,484
    Mar 4, 2015
    0
    Yes. I’ll get a pic of the whole thing later.

    Long FLD, Apr 25, 2021
    Long FLD, Apr 25, 2021
    #4
    Arctic_fox Thanks this.
  8. Apr 25, 2021 #5
    Arctic_fox

    Arctic_fox Experienced mx13 execrator

    2,993
    12,964
    Sep 16, 2016
    0
    Much apprecated!

    Arctic_fox, Apr 25, 2021
    Arctic_fox, Apr 25, 2021
    #5
  9. Apr 25, 2021 #6
    GYPSY65

    GYPSY65 Road Train Member

    1,938
    5,218
    Nov 16, 2012
    SW FLA
    0
    Which fuse box is this?
    The one by my drivers footwell is not like this

    GYPSY65, Apr 25, 2021
    GYPSY65, Apr 25, 2021
    #6
  10. Apr 25, 2021 #7
    Long FLD

    Long FLD Road Train Member

    9,636
    37,484
    Mar 4, 2015
    0
    That’s the one by my left foot.

    Long FLD, Apr 25, 2021
    Long FLD, Apr 25, 2021
    #7
  11. Apr 25, 2021 #8
    GYPSY65

    GYPSY65 Road Train Member

    1,938
    5,218
    Nov 16, 2012
    SW FLA
    0
    Yeah
    Not seeing it there or on the firewall one
    I do have a 2021 so maybe it’s changed

    I do have one under the bunk I will also check
    Maybe there?


    GYPSY65, Apr 25, 2021
    GYPSY65, Apr 25, 2021
    #8
  12. Apr 25, 2021 #9
    Long FLD

    Long FLD Road Train Member

    9,636
    37,484
    Mar 4, 2015
    0
    If there’s no fuse then it might be something controlled by the cab control module like @062 said. I’m out of guesses if you can’t find a fuse for it.

    Long FLD, Apr 25, 2021
    Long FLD, Apr 25, 2021
    #9
    GYPSY65 Thanks this.
  13. Apr 25, 2021 #10
    LoSt_AgAiN

    LoSt_AgAiN Heavy Load Member

    761
    3,819
    Sep 7, 2018
    0
    Might be a seatbelt buzzer wire. Lol

    LoSt_AgAiN, Apr 25, 2021
    LoSt_AgAiN, Apr 25, 2021
    #10
    GYPSY65 Thanks this.
