PLEASE HELP!

Discussion in 'Volvo Forum' started by rhitrucking, Mar 28, 2019.

  1. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  2. Newto Trucking

    Newto Trucking Medium Load Member

    359
    225
    Dec 26, 2013
    NE Illinois
    0
    Dealer has a breakout box part number 9990014 plus you will need this 9998699

    Last edited: May 22, 2019
  3. rhitrucking

    rhitrucking Light Load Member

    163
    72
    Feb 7, 2017
    0
    lol...well thats affordable...I hate to untape it, but I dont see any other option

  4. Newto Trucking

    Newto Trucking Medium Load Member

    359
    225
    Dec 26, 2013
    NE Illinois
    0

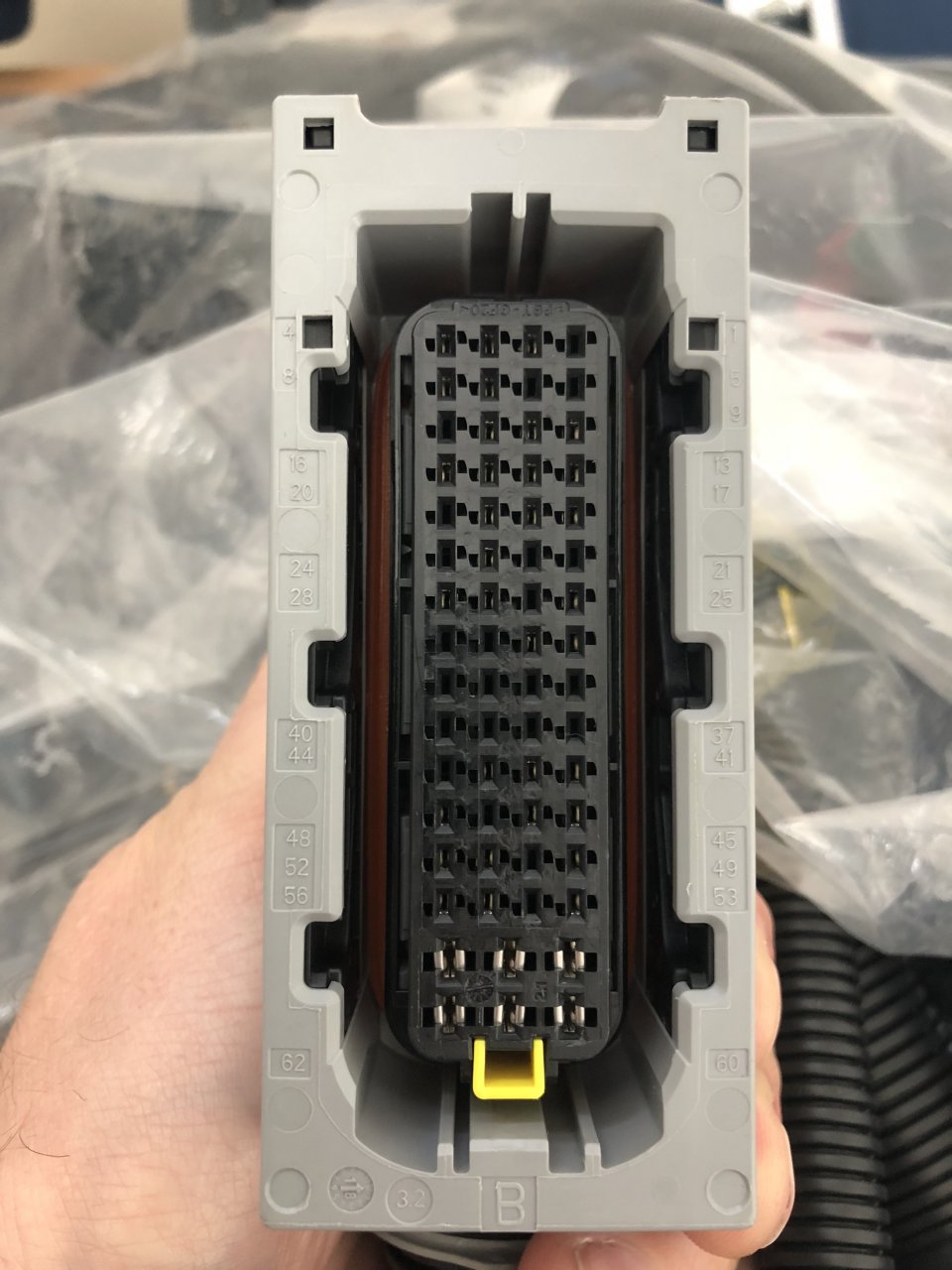

    Check the resistance on a pin 26 ACM and pin 3 by the sensor on a plug. Ignition key off.

    Last edited: May 22, 2019
  5. Newto Trucking

    Newto Trucking Medium Load Member

    359
    225
    Dec 26, 2013
    NE Illinois
    0

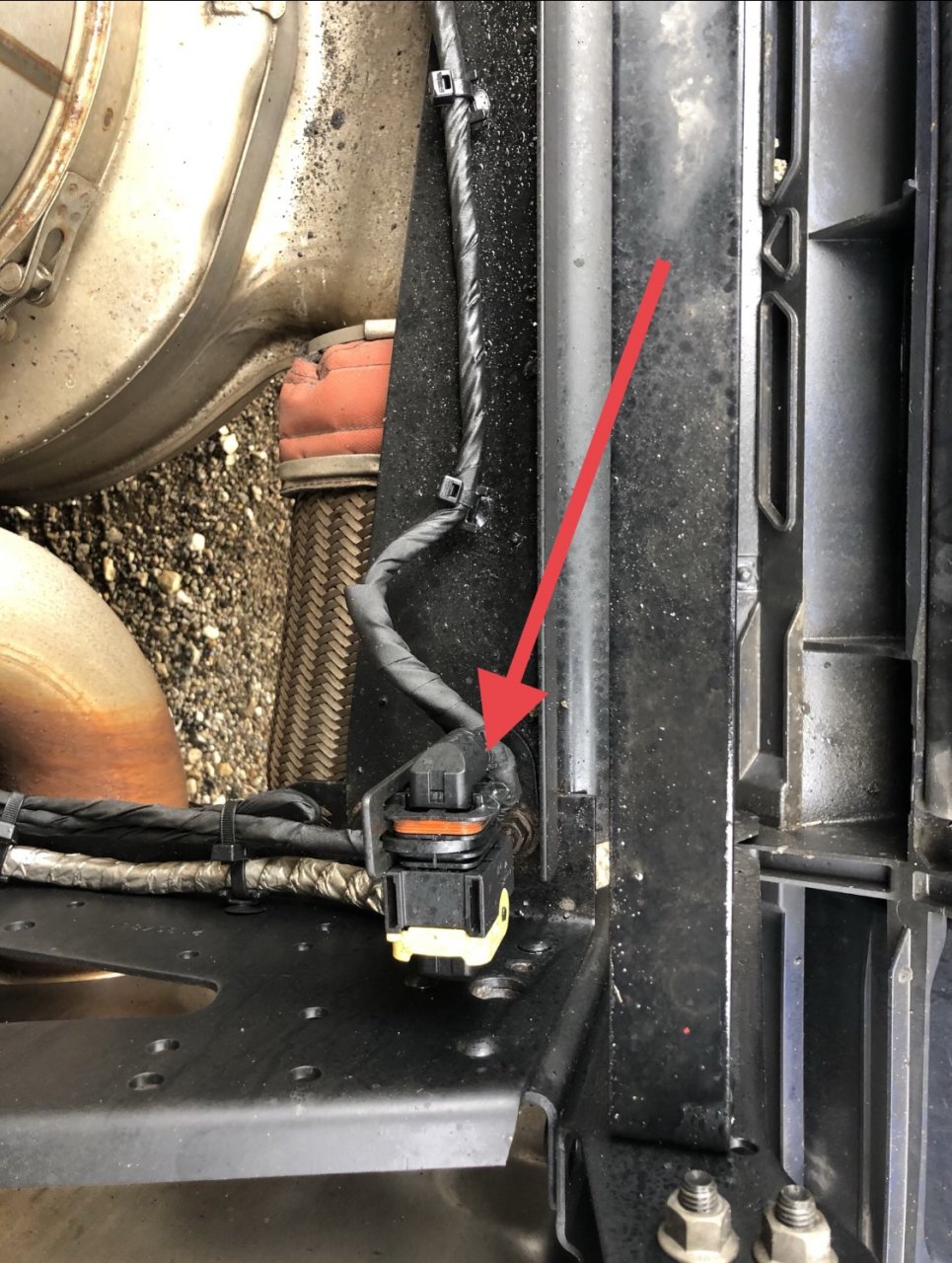

    49474114-9896-4FA7-8AAC-CA9B935349BB.jpeg There’s one more connection point between all the sensors on dpf and ACM and pin 6 is Signal from dpf differential pressure sensor. Measure resistance both ways to the ACM and to the sensor, wiggle the cable at the same time might help. Ignition key off.

  6. rhitrucking

    rhitrucking Light Load Member

    163
    72
    Feb 7, 2017
    0
    ok...first things first. measured resistance from acm to dpf pressure sensor. 5v supply had no resistance, sensor wire had no resistance, I could make no connection from pin #2 on sensor to pin 24 at acm

    nevermind...its 54 at acm not 24

    Last edited: May 22, 2019
  7. Newto Trucking

    Newto Trucking Medium Load Member

    359
    225
    Dec 26, 2013
    NE Illinois
    0
    Any progress with your truck???

  8. rhitrucking

    rhitrucking Light Load Member

    163
    72
    Feb 7, 2017
    0
    I have given up! I drive the truck cause I cant afford not to. It asks for a parked regen about every other day. good for about 500 miles. soot will shoot to 110% regen occasionally back to 85% until something throws it off and it shoots up and asks for parked regen.

    Newto Trucking Thanks this.
  9. rhitrucking

    rhitrucking Light Load Member

    163
    72
    Feb 7, 2017
    0
    Does anyone know if I can just swap ACM's without any programming? There is one at the local truck yard, same year and model truck, cheap enough that its worth trying to swap if nothing is needed at dealer.
