Proheat wiring issue.

Discussion in 'Peterbilt Forum' started by Mr. Pete, Sep 28, 2019.

  1. Sep 28, 2019 #1
    Mr. Pete

    Mr. Pete Bobtail Member

    1
    0
    Mar 25, 2019
    Calgary, Alberta
    0
    Hey guys, I have a 02 379 with a ProHeat X45. The previous owner must have wired this thing in blind with a hatchet because it’s taken me two weeks to get it 90% corrected. This is where you all come in.

    in the only diagram I could get ahold of from ProHeat is for a truck with a PCC Module, which I don’t have, it shows relay 2 pulling ground from wire B239, but wire B239 is a switched ground, so when the truck isn’t running, that wire is dead, thus not allowing the ProHeat to run the fan with the key off. If I pull ground from a Unswitched source, I’m then supplying ground to my bunk blower control all the time, causing the bunk fan on/off switch on the dash to do nothing and the fan to run full time regardless of what position the dash switch is in.

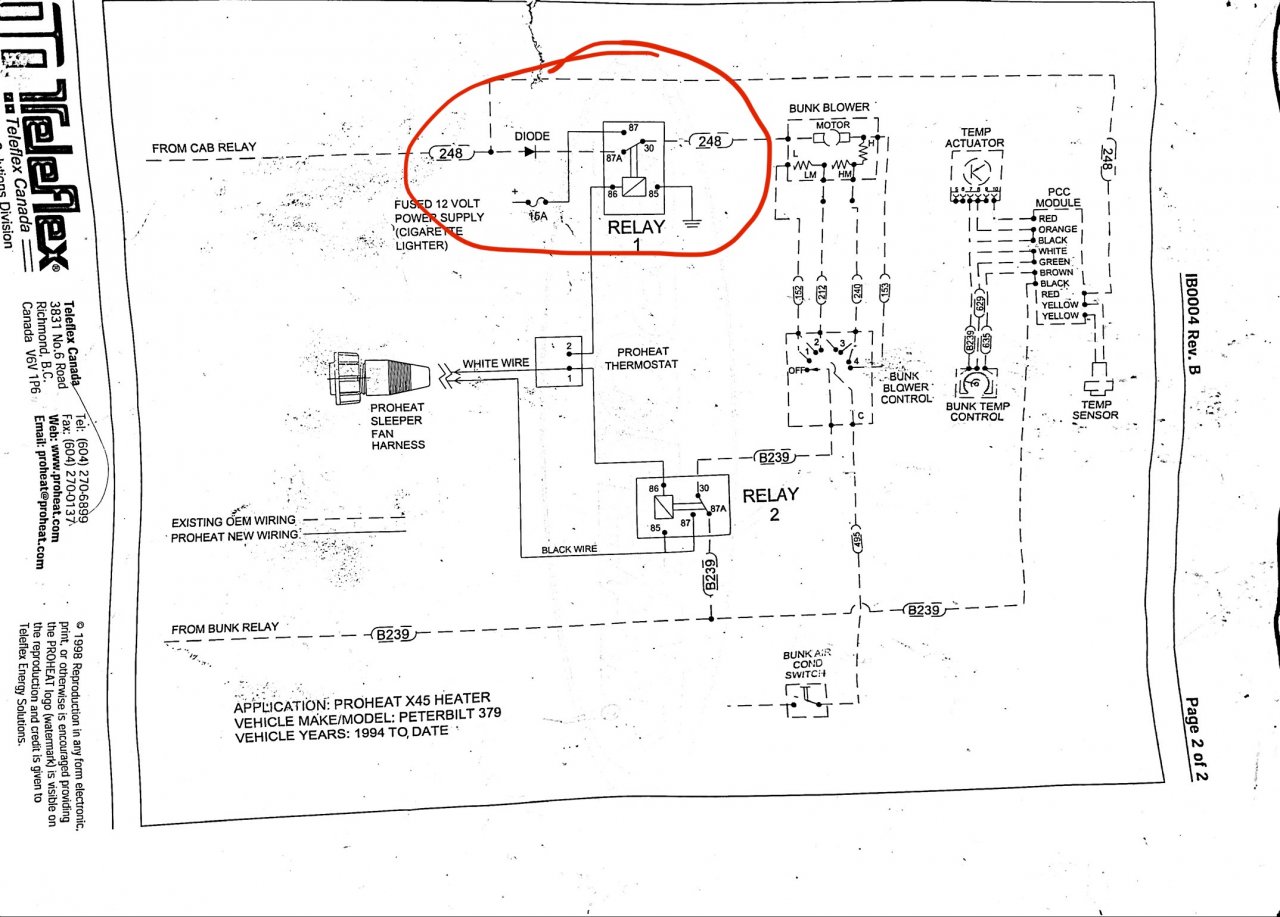

    Does anyone have any experience wiring these in? I’ll include the diagram I have for reference, disregard the circled relay 1, that was done before when I was still sorting out Relay 1.


    Attached Files:

    Mr. Pete, Sep 28, 2019
    Mr. Pete, Sep 28, 2019
    #1
