Proper light installation

Discussion in 'Ask An Owner Operator' started by pavrom, Sep 21, 2021.

  1. pavrom

    pavrom Road Train Member

    2,133
    4,196
    Apr 29, 2012
    NE illinois
    0

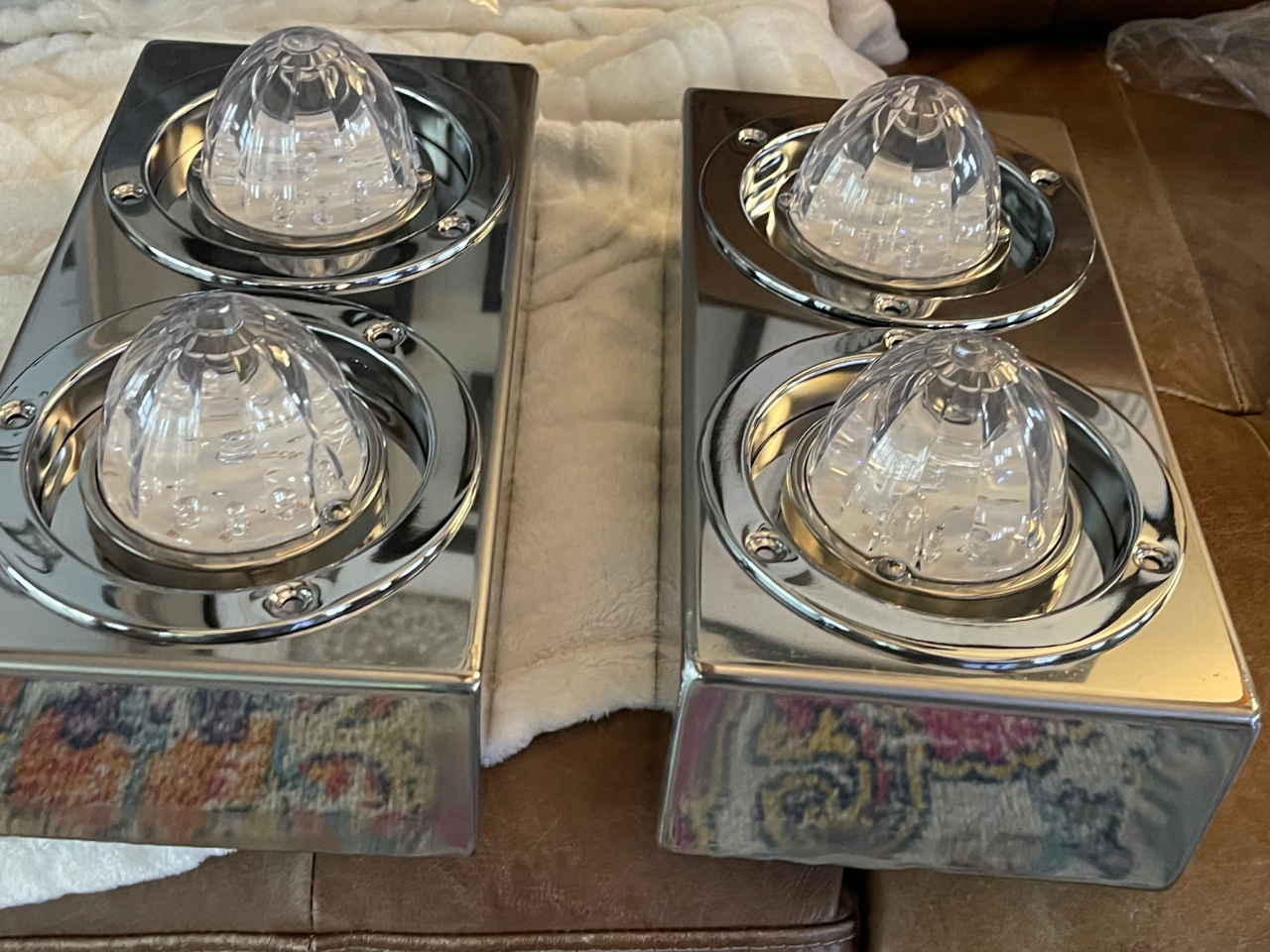

    I finally have my taillight panel done and i am ready to do the wiring and install . Can anyone suggest what is the proper way installing of this type of light ( i am wondering if any gasket has to be in between light and panel ) ...have to get chrome rings as well
    Dont want any water or moisture inside


    Attached Files:

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. J.R.

    J.R. Bobtail Member

    40
    105
    May 17, 2012
    WI
    0
    Moisture will get in, drill drain holes.

    Rideandrepair and pavrom Thank this.
  4. Catmando

    Catmando Medium Load Member

    641
    1,761
    Mar 15, 2021
    Iowa
    0
    That looks nice did you fabric that ?

    Rideandrepair Thanks this.
  5. pavrom

    pavrom Road Train Member

    2,133
    4,196
    Apr 29, 2012
    NE illinois
    0
    Yes...local welding shop

    Speed_Drums and Rideandrepair Thank this.
  6. Ridgeline

    Ridgeline Road Train Member

    17,851
    75,677
    Dec 18, 2011
    Michigan
    0
    For what?

    those are sealed lights as long as the connectors are properly.

  7. sbaumann14

    sbaumann14 Road Train Member

    1,020
    901
    Sep 1, 2010
    Rhinelander, WI
    0
    Use dielectric grease on all the plug ins. Put all the wires inside plastic wire loom as it will either rub against the walls or lay on the bottom and rub thru. Heat shrink/shrink seal ALL connections.

    PS…. That looks killer!

    pavrom Thanks this.
  8. Banker

    Banker Road Train Member

    2,750
    6,420
    Aug 19, 2012
    0

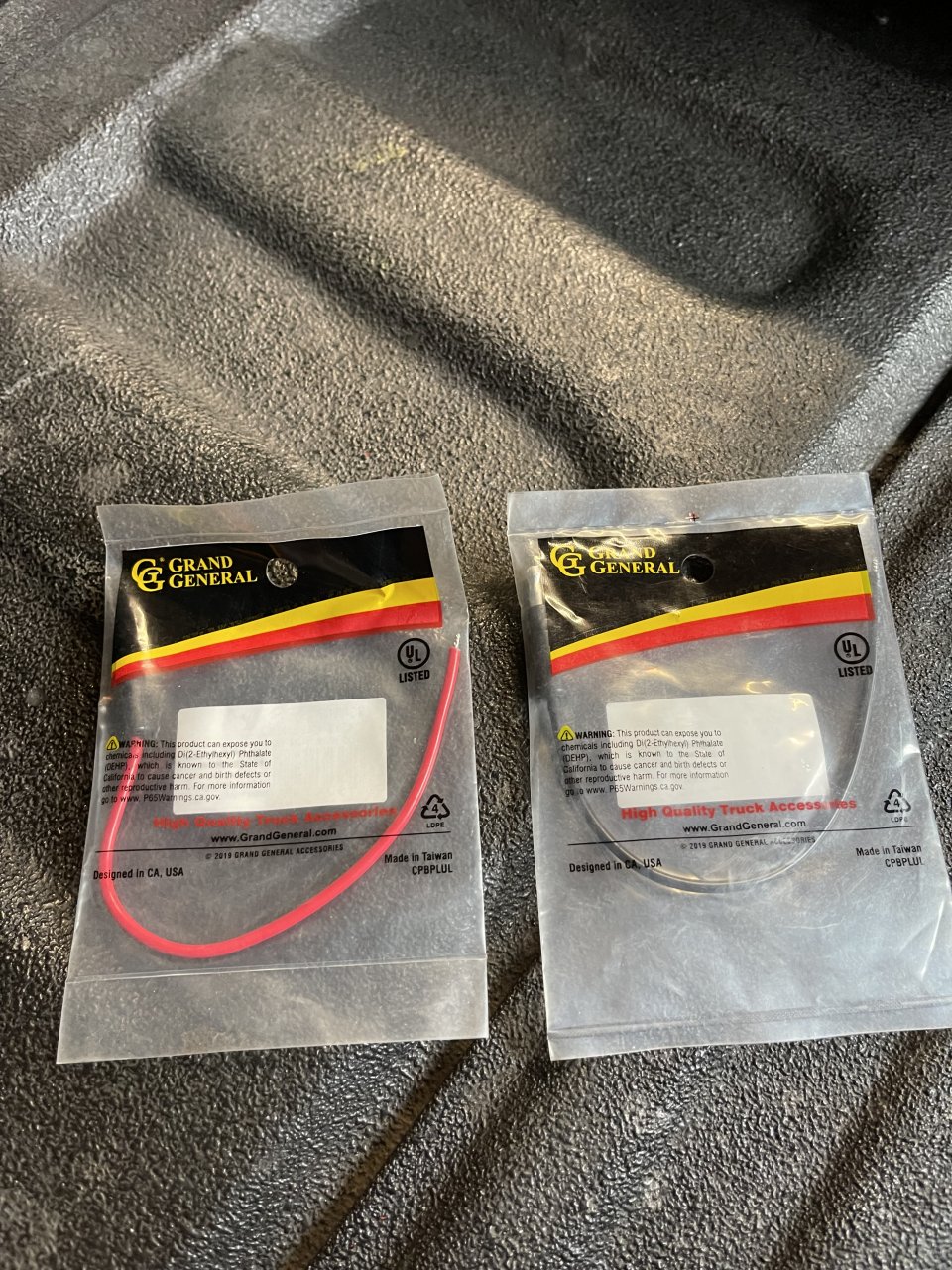

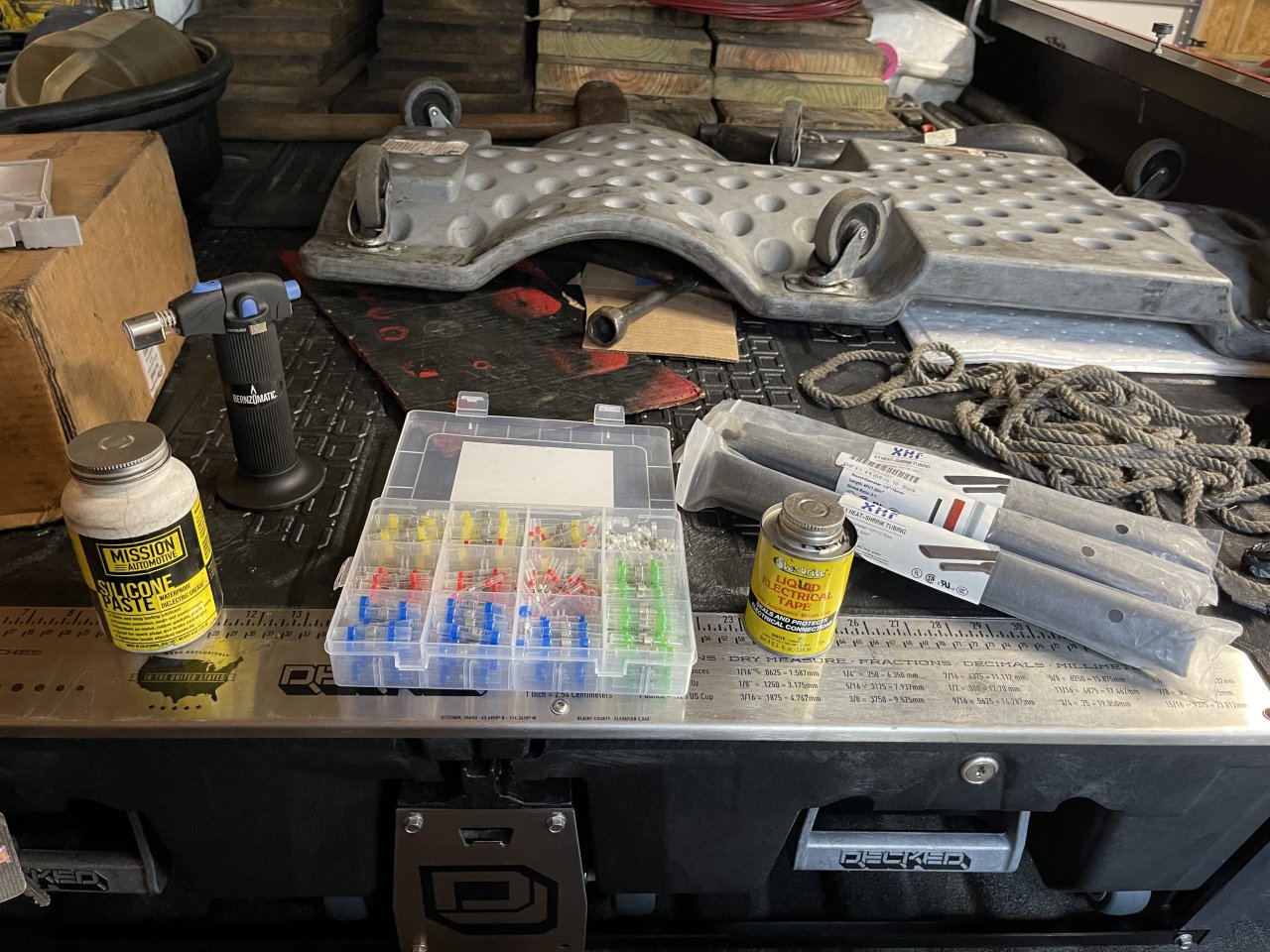

    Seems like all the good lights come with the bullet plugs that fit snug and that eliminates much of your issues. I bought some lights a few years ago that worked really well but they didn’t have the plugs. The grand general plugs seem to work the best for me as the cheaper plugs didn’t fit snuggly. I tend to over kill but some heat shrink over the weather proof connection doesn’t take but a minute to install and is worth my effort. These heat shrink connectors with solder in them are the best I have used. I know you didn’t ask about lights but these are nice after you install the mount. When you need to replace one all it takes is two screws to replace the light.
    6933D789-A5E8-4073-A26F-F460A28F76C6.jpeg 6C20D1AF-9434-41F4-813F-94A931C1D5C8.jpeg

    Last edited: Sep 22, 2021
    pavrom Thanks this.
  9. Banker

    Banker Road Train Member

    2,750
    6,420
    Aug 19, 2012
    0
    You taillight panel looks really good.

    pavrom Thanks this.
