Pull or twist sensor from the coolant reservoir?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by JonJon78, Feb 4, 2022.

Page 1 of 5
  1. Feb 4, 2022 #1
    JonJon78

    JonJon78 Road Train Member

    7,205
    42,176
    Jul 1, 2018
    0
    Peterbilt 389 Cummins X15

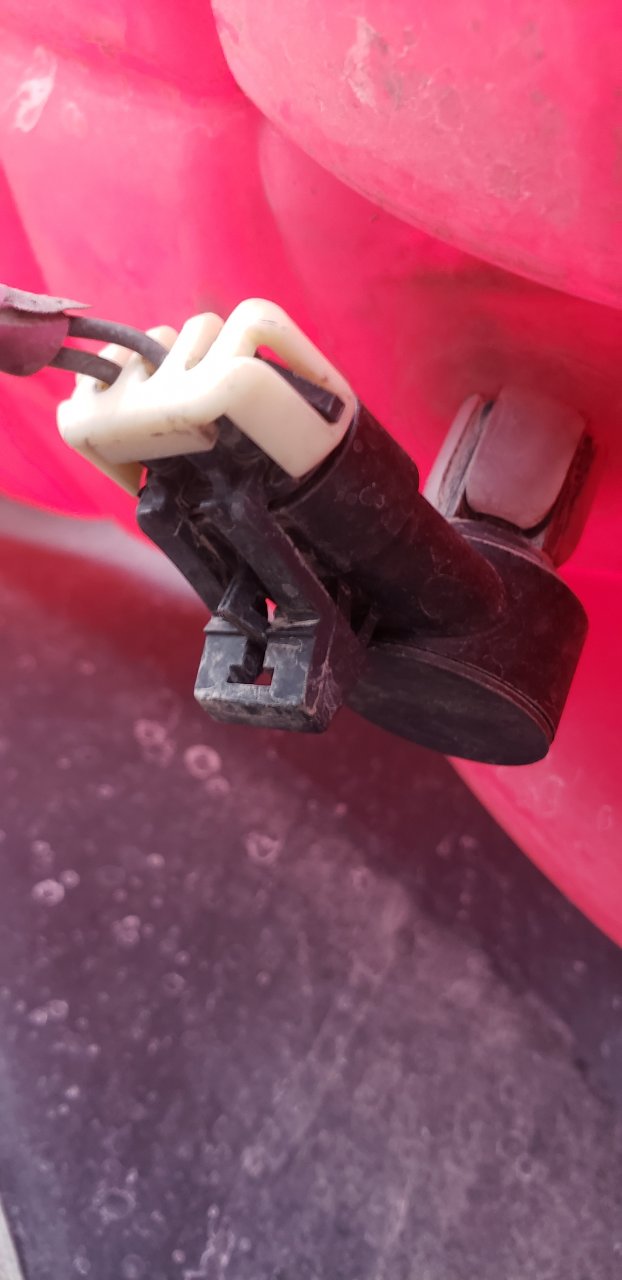

    Cant tell if I pull or twist the old sensor off from the coolant reservoir? Obviously don't wanna "try and find out" then break those clear tabs and be stranded...

    20220204_093011.jpg 20220204_092916.jpg

    JonJon78, Feb 4, 2022
    JonJon78, Feb 4, 2022
    #1
    Rideandrepair, JoeyJunk and DeereRunner97 Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Feb 4, 2022 #2
    DeereRunner97

    DeereRunner97 Medium Load Member

    643
    16,882
    Apr 18, 2019
    Ostrander, Ohio
    0
    Unclip the three prong that goes into the sensor and then twist while pulling. Be careful though, I think you will loose some coolant.

    DeereRunner97, Feb 4, 2022
    DeereRunner97, Feb 4, 2022
    #2
    Rideandrepair, JoeyJunk and JonJon78 Thank this.
  4. Feb 4, 2022 #3
    JonJon78

    JonJon78 Road Train Member

    7,205
    42,176
    Jul 1, 2018
    0
    10-4 thanks. I bought a couple extra gallon of coolant.

    I've been listening to the "low coolant" buzzer alarm on the dashboard the past couple hours. I can't keep the music loud enough!!! :biggrin_2559:

    JonJon78, Feb 4, 2022
    JonJon78, Feb 4, 2022
    #3
    Rideandrepair, JoeyJunk and DeereRunner97 Thank this.
  5. Feb 4, 2022 #4
    wichris

    wichris Road Train Member

    4,425
    9,054
    Jan 17, 2011
    0
    If it's cold out, heat it up or they will break.

    wichris, Feb 4, 2022
    wichris, Feb 4, 2022
    #4
    Rideandrepair, JonJon78, JoeyJunk and 2 others Thank this.
  7. Feb 4, 2022 #5
    JonJon78

    JonJon78 Road Train Member

    7,205
    42,176
    Jul 1, 2018
    0
    Heat what? The plastic pull tabs?

    JonJon78, Feb 4, 2022
    JonJon78, Feb 4, 2022
    #5
    Rideandrepair and JoeyJunk Thank this.
  8. Feb 4, 2022 #6
    jason6541

    jason6541 Road Train Member

    2,425
    5,366
    Mar 5, 2012
    Omaha, NE
    0
    Yes, but if engine warm that will suffice as long as engine isn’t scalding

    jason6541, Feb 4, 2022
    jason6541, Feb 4, 2022
    #6
    Rideandrepair, JonJon78 and JoeyJunk Thank this.
  9. Feb 4, 2022 #7
    JonJon78

    JonJon78 Road Train Member

    7,205
    42,176
    Jul 1, 2018
    0
    It came right out. Sadly that didn't fix the "Ding, Ding, Ding, low coolant warning light on the dash....

    Watched a YouTube video that says inside the reservoir is a magnet that senses the actual level...

    Maybe I got a bad magnet and need a new reservoir?

    JonJon78, Feb 4, 2022
    JonJon78, Feb 4, 2022
    #7
    Rideandrepair, DeereRunner97 and D.Tibbitt Thank this.
  10. Feb 4, 2022 #8
    D.Tibbitt

    D.Tibbitt Road Train Member

    22,214
    152,842
    Apr 26, 2013
    Gettin' down westbound
    0
    Could be. But first check the wiring on the sensor. It could be damaged. You can also just unplug the sensor and it will get rid of the ding sound, but have a check engine light on and obviously if you grt low coolant there wont be an alarm. A new aftermarket coolant tank is like $350 at peterbilt. Ive replaced 3 on mine because of that stupid sensor... Unhook hoses and theres 2 bolts on top and it pulls right out. Lose about 3 gallons of coolant of you dont drain it.. Can fix it in the truckstop

    D.Tibbitt, Feb 4, 2022
    D.Tibbitt, Feb 4, 2022
    #8
    Rideandrepair, Siinman, DeereRunner97 and 2 others Thank this.
  11. Feb 4, 2022 #9
    JonJon78

    JonJon78 Road Train Member

    7,205
    42,176
    Jul 1, 2018
    0
    I just pulled the new sensor out, left it hooked up, let the truck run. The warning light went off, put it back underneath the coolant tank and it stayed off... Hopefully when I drive again Monday it doesn't come back on, if it does ill have to buy the new tank.

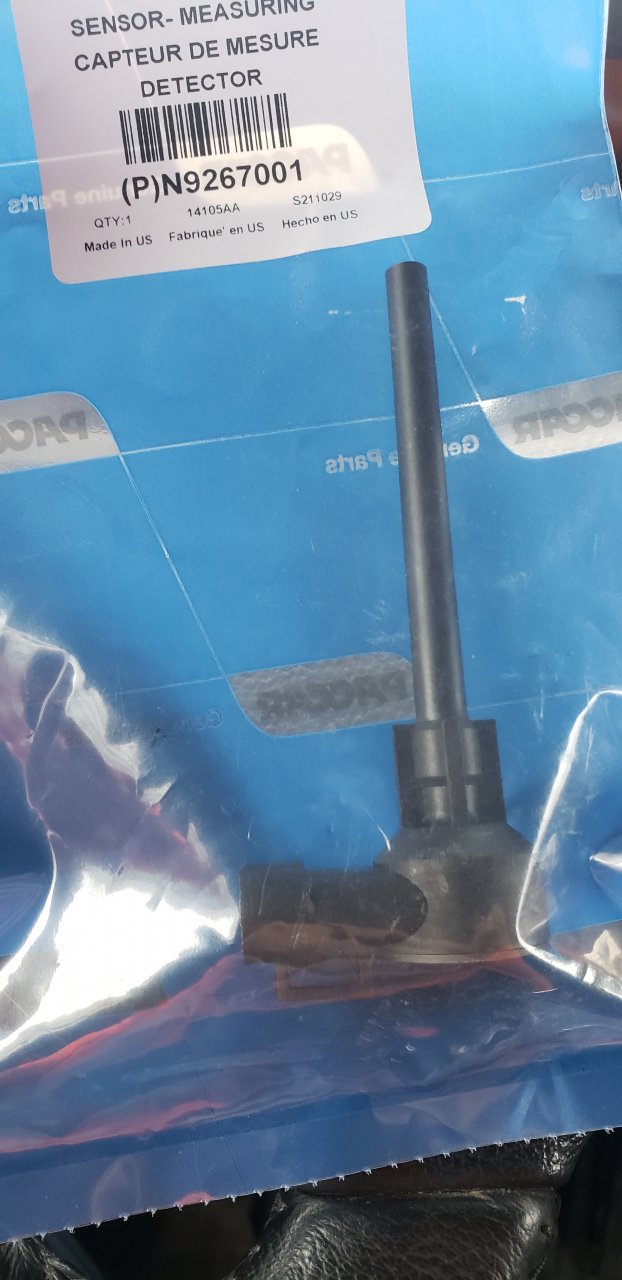

    Definitely a stupid design the way this is... the sensor was $180 with inflation that tank is probably $600 now :biggrin_25512:


    JonJon78, Feb 4, 2022
    JonJon78, Feb 4, 2022
    #9
    Rideandrepair, D.Tibbitt and DeereRunner97 Thank this.
  12. Feb 4, 2022 #10
    Goodysnap

    Goodysnap Road Train Member

    3,744
    9,105
    Jul 12, 2017
    0
    Put a tank on it. Just low coolant warning? Any CEL?

    Pull test wires at sensor connector. Also check for spread wiring pins. Jamming a paper clip or jumper in them will spread the pins.

    Goodysnap, Feb 4, 2022
    Goodysnap, Feb 4, 2022
    #10
    Dino soar, Rideandrepair, D.Tibbitt and 1 other person Thank this.
