Quick wheel seal question...

Discussion in 'Trucks [ Eighteen Wheelers ]' started by HopeOverMope, Nov 23, 2018.

  1. HopeOverMope

    HopeOverMope Road Train Member

    1,801
    3,211
    Feb 25, 2016
    I-20 LOUISIANA
    0

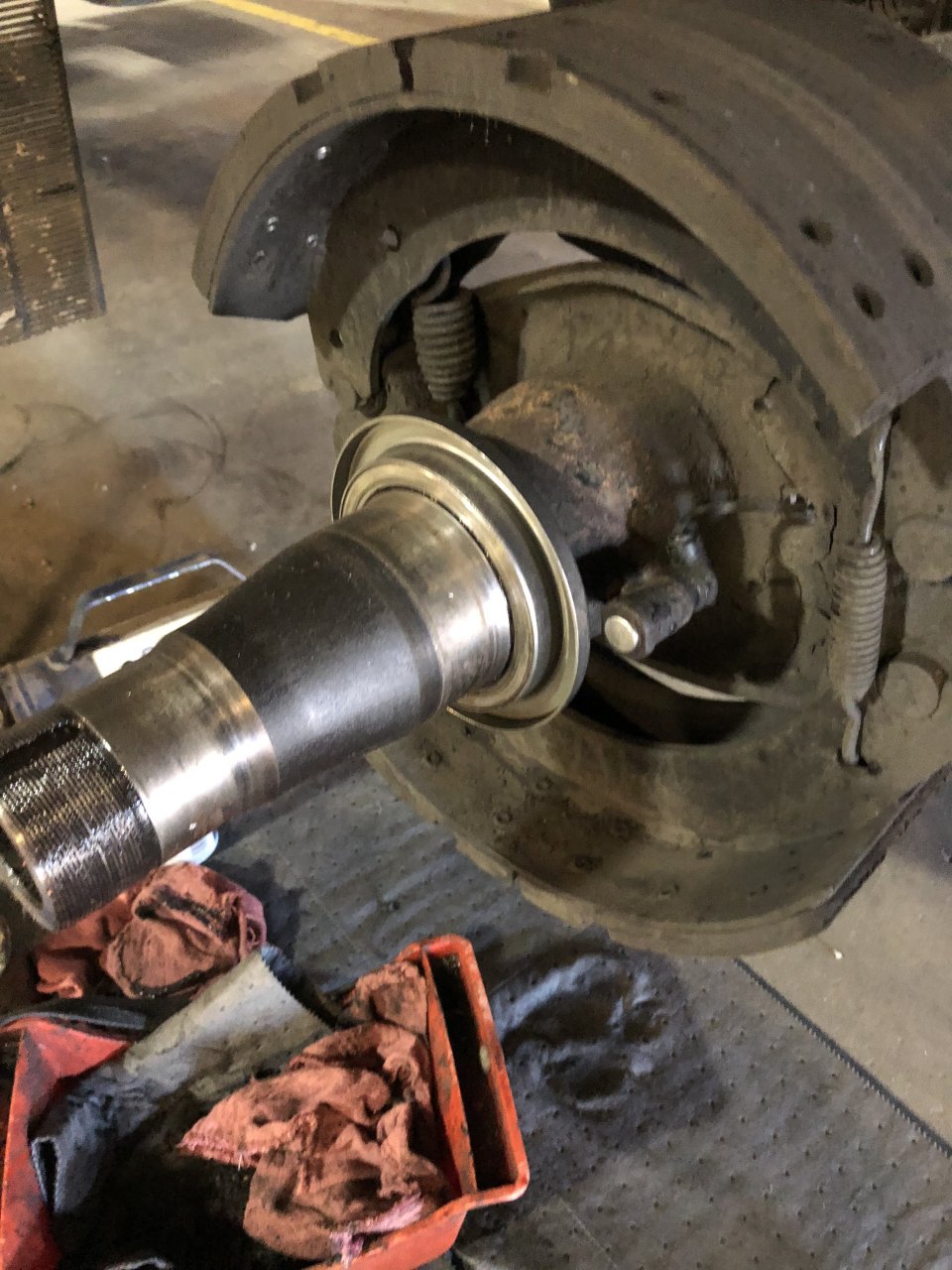

    460554F0-5BA7-4168-9EF3-C104AD9AD3F9.jpeg Well I got an update here. We went with the two part stemco seal with the wear ring. We drove the wear ring on, then put rtv silicone behind the seal/between the seal and wear ring. Did the torque down process.

    I’ll try update this every three months or so with results. Thanks y’all for giving me more of a leg to stand on when going into the shop.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Rideandrepair

    Rideandrepair Road Train Member

    17,357
    56,317
    Aug 8, 2015
    0
    Just found my left steer leaking!! Got skf Classic from dealer per vin # at last minute. Realized it’s not the seal I wanted. Too late they’re closed. Going to do the oiled up mudflap trick I guess.must have been stemco guardian hp I used last time. Get 1 in the morning.Luckily it was barely low on oil.

    MartinFromBC and jamespmack Thank this.
  4. BoxCarKidd

    BoxCarKidd Road Train Member

    4,491
    6,542
    Aug 26, 2014
    0
    Looks like a well used wear ring installation tool in the picture, the blue can with a handle. A little sealer on the spindle before the wear ring is fine. A little sealer in the hub bore or seal OD, fine. I do mean just a skim. Sealant between the seal lip and wear ring should not be done.

  5. adayrider

    adayrider Road Train Member

    1,289
    1,732
    May 7, 2018
    0
    I would never let someone cut the spindle off and weld a new one on even if he called himself a doctor. It will not be true straight when done. Replace the whole axle and be done with it. It cost a little more in the beginning but will save you money in tires in the end.

  6. BoxCarKidd

    BoxCarKidd Road Train Member

    4,491
    6,542
    Aug 26, 2014
    0
    I thank Axle Doctor is a franchise. While I thought the same thing I have seen several owner operators choose to do this. They hired and had it done on drive axles. We just put it back together. The work looked very good and I did not see a tire wear problem.
    The only one I have had done was on an older single axle low boy with the axle welded in the I beam frame. It was bought at auction and found a spindle gobbed up by the previous owner. That worked out most excellent. Cannot comment on tire wear as these will be replaced for dry rot before wear.
    Not selling anything here that is just my experience. They can answer their own alignment questions if they wish.

    Rideandrepair and spsauerland Thank this.
