    Good evening,

    I currently received my re-man ecm because the stock one started leaking fuel. Well took old one out put re-man in and started up truck and truck ran like crap. Sounds like it was misfiring and check engine light was one. Took re-man out put stock one back in. And now I can't get wiring harness to plug back in. All they want to do is fall out. I zipped tired them in and went to start truck and truck cranks but won't start. What happend truck ran fine before I don't know what to do


    Attached Files:

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Star Rider

    Star Rider Heavy Load Member

    842
    6,199
    Sep 23, 2019
    Michigan
    0
    Just throwing this out there, are you tightening the allen head bolt in the center of the harness plug that holds it in?

    Rideandrepair Thanks this.
  4. B5love08

    B5love08 Bobtail Member

    38
    18
    Nov 20, 2019
    0
    There is no allen bolt. I'll take picture of harness tomorrow but yea deffinatly no Allen bolt present on the harness clip ends that go into ecm

  5. BoxCarKidd

    BoxCarKidd Road Train Member

    4,089
    5,854
    Aug 26, 2014
    0

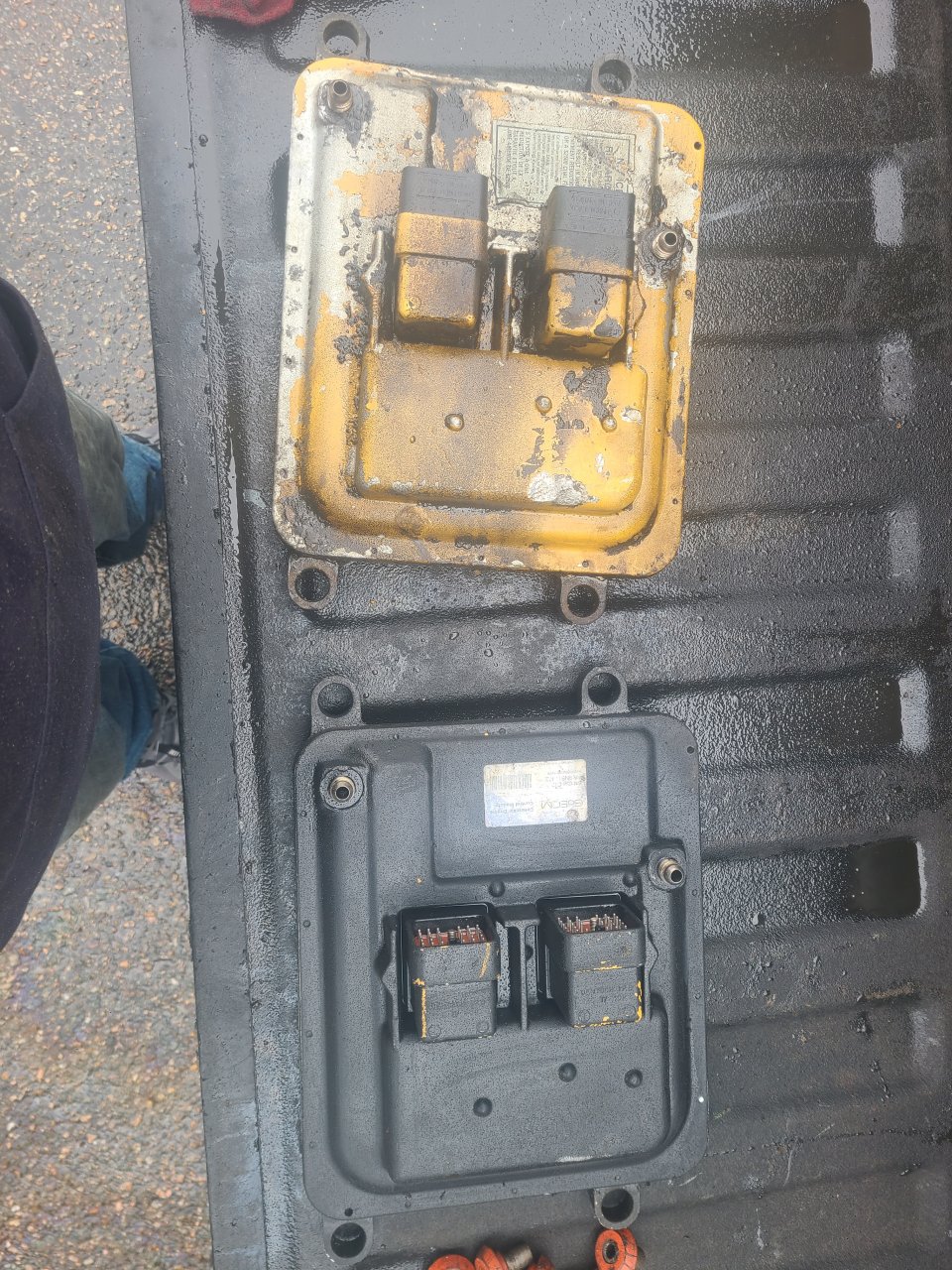

    You do not have the correct replacement ECM. One has threaded studs for the connectors and the other does not.

    Bean Jr., JB7, Diesel Dave and 2 others Thank this.
  6. Star Rider

    Star Rider Heavy Load Member

    842
    6,199
    Sep 23, 2019
    Michigan
    0
    That's why I asked, I saw the studs on the new one.

  7. AModelCat

    AModelCat Road Train Member

    27,155
    141,446
    Jul 7, 2015
    Canuckistan
    0
    That was my thought as well. New ECM also has male pins, looks like female on the original. Unless there's parts missing from the pictures? :dontknow:

    BoxCarKidd and Rideandrepair Thank this.
  8. Star Rider

    Star Rider Heavy Load Member

    842
    6,199
    Sep 23, 2019
    Michigan
    0
    Definitely need pics of the harness plugs, something wrong here.

    Bean Jr. Thanks this.
  9. B5love08

    B5love08 Bobtail Member

    38
    18
    Nov 20, 2019
    0
    Just woke up. Heading to truck now to go take pictures of harness

    Bean Jr. Thanks this.
  10. B5love08

    B5love08 Bobtail Member

    38
    18
    Nov 20, 2019
    0


    Attached Files:

  11. AModelCat

    AModelCat Road Train Member

    27,155
    141,446
    Jul 7, 2015
    Canuckistan
    0
    Part of the harness plug is missing. Those female pins should not be exposed like that.

    Bean Jr. Thanks this.
