Removing fuel pump on N14

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by mile marker 27, Feb 2, 2021.

Page 1 of 4
  1. Feb 2, 2021 #1
    mile marker 27

    mile marker 27 Road Train Member

    1,229
    1,635
    Dec 4, 2019
    0
    Aside from unhooking the lines and the bolts that attach it to the accessory drive, is there anything crucial about removing the pump? Is there a timing concern with removal?

    mile marker 27, Feb 2, 2021
    mile marker 27, Feb 2, 2021
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Feb 2, 2021 #2
    Fieldrat

    Fieldrat Bobtail Member

    43
    67
    Jan 31, 2021
    0
    No need to time. The rear bolt kind of sucks. If this is not mechanical or stc, you will have the pt switch wire too that can be a bit of a bear sometimes. New fuel pump should come with new pt switch. Be sure to inspect drive coupling.

    Fieldrat, Feb 2, 2021
    Fieldrat, Feb 2, 2021
    #2
    mile marker 27 Thanks this.
  4. Feb 2, 2021 #3
    haycarter

    haycarter Road Train Member

    1,920
    5,317
    Jun 9, 2012
    Australia
    0

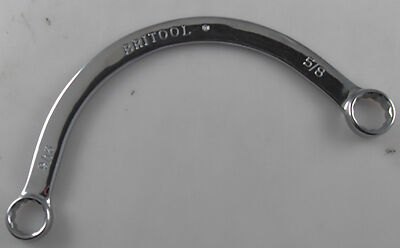

    You'll need a Spanner (wrench to you) something like this for the rear Stud.. I made one up by heating & bending a normal type Spanner..

    [​IMG]

    haycarter, Feb 2, 2021
    haycarter, Feb 2, 2021
    #3
    DUNE-T, bzinger, tommymonza and 3 others Thank this.
  5. Feb 2, 2021 #4
    mile marker 27

    mile marker 27 Road Train Member

    1,229
    1,635
    Dec 4, 2019
    0
    It’s leaking around the pulsation dampener plate. It’s got 4, 3/16” Allen bolts and two of them are opposing the other two. So, it looks as if it’d be easier to remove the whole pump.

    mile marker 27, Feb 2, 2021
    mile marker 27, Feb 2, 2021
    #4
  7. Feb 2, 2021 #5
    BoxCarKidd

    BoxCarKidd Road Train Member

    4,443
    6,485
    Aug 26, 2014
    0
    Yes

    BoxCarKidd, Feb 2, 2021
    BoxCarKidd, Feb 2, 2021
    #5
    mile marker 27 Thanks this.
  8. Feb 3, 2021 #6
    xsetra

    xsetra Road Train Member

    5,104
    6,967
    Aug 21, 2011
    0
    I was told to replace the drive coupling anytime I had the fuel pump removed. Cheap insurance.
    Good luck.
    [​IMG]

    xsetra, Feb 3, 2021
    xsetra, Feb 3, 2021
    #6
    jamespmack, mile marker 27 and Diesel Dave Thank this.
  9. Feb 3, 2021 #7
    Diesel Dave

    Diesel Dave Last Few of the OUTLAWS

    8,636
    24,334
    Jan 20, 2010
    Hesperia, Ca.
    0
    I made my own. Got the torch and bended it. Still have it somewhere in my toolbox.

    Diesel Dave, Feb 3, 2021
    Diesel Dave, Feb 3, 2021
    #7
    haycarter Thanks this.
  10. Feb 3, 2021 #8
    mile marker 27

    mile marker 27 Road Train Member

    1,229
    1,635
    Dec 4, 2019
    0
    Does Cummins offer a gasket/O-ring kit, for the pump? If so what’s the part number? And also, my pump doesn’t have the fuel filter attached.

    mile marker 27, Feb 3, 2021
    mile marker 27, Feb 3, 2021
    #8
  11. Feb 3, 2021 #9
    Fieldrat

    Fieldrat Bobtail Member

    43
    67
    Jan 31, 2021
    0
    Whats your esn?

    Fieldrat, Feb 3, 2021
    Fieldrat, Feb 3, 2021
    #9
  12. Feb 3, 2021 #10
    mile marker 27

    mile marker 27 Road Train Member

    1,229
    1,635
    Dec 4, 2019
    0

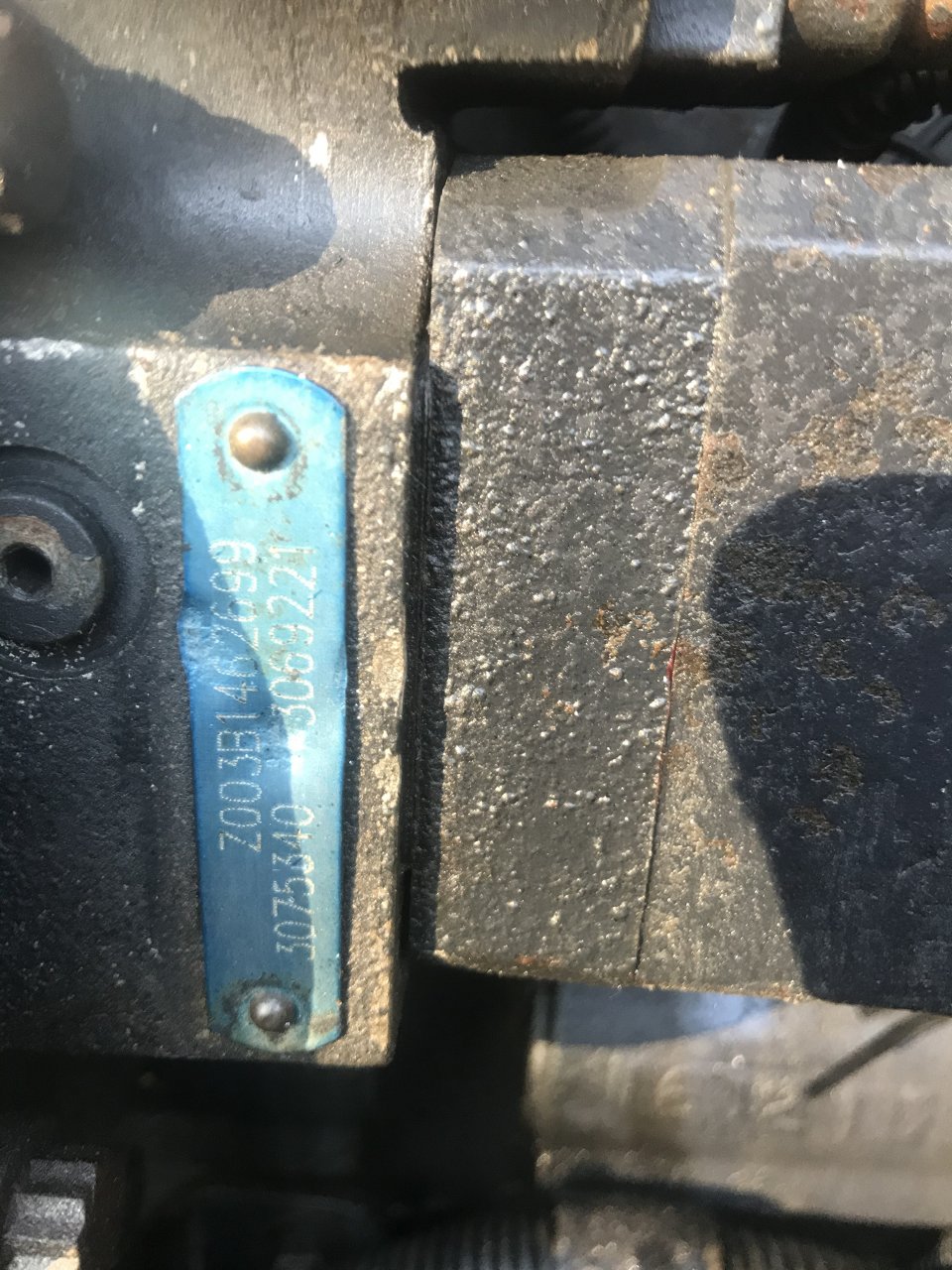

    06AC4700-64F7-4EA4-99EA-3A925F983EC8.jpeg I’m not around the truck at the moment to get an ESN but this tag is on the pump.

    mile marker 27, Feb 3, 2021
    mile marker 27, Feb 3, 2021
    #10
